Typical outlet group configurations

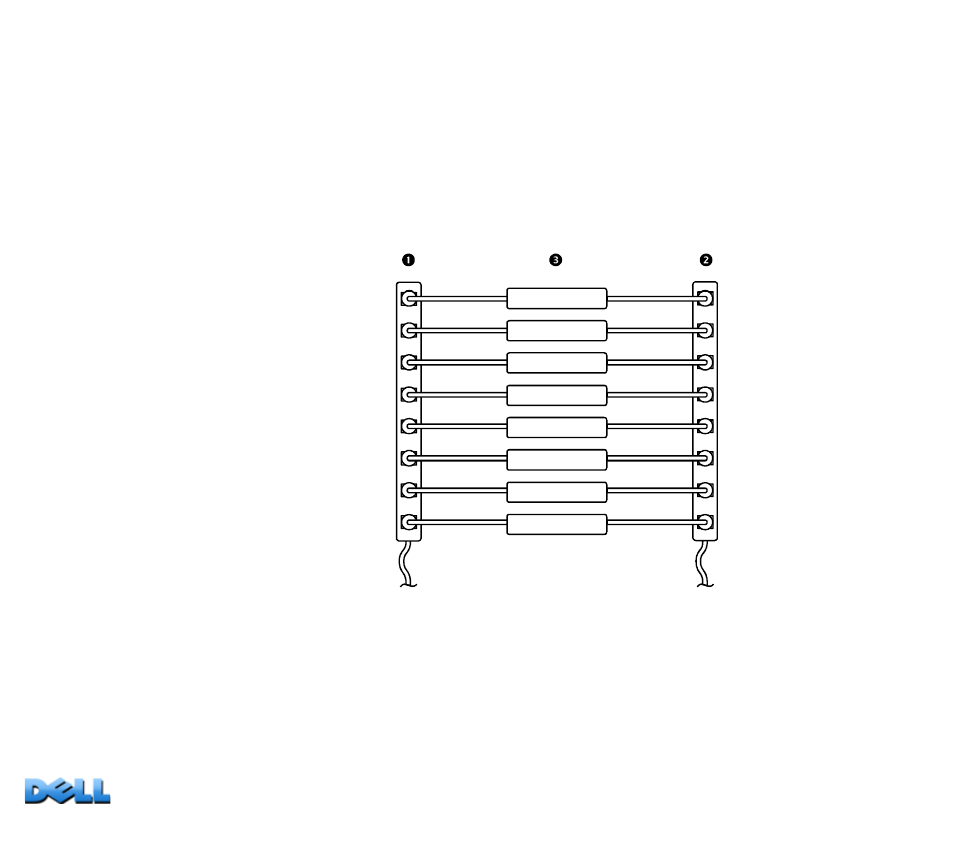

The following configuration shows two Rack PDUs, each with eight outlet groups. Each
outlet group consists of a single global outlet. Each outlet group
1 on the first Rack
PDU is linked to the outlet group 2 in the same location on the second Rack PDU. One
power cord of a dual-corded server 3 is connected to each outlet on the first Rack
PDU, and its other cord is connected to the corresponding outlet on the second Rack
PDU, ensuring that output power from both power sources to the server will turn on or
off in a synchronized manner in response to an outlet control action.
Server 1
Server 2
Server 3
Server 4
Server 5
Server 6
Server 7
Server 8
