Video Card
Removing the Video Card
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the front bezel .
3. Remove the cover .
4. Remove the cooling shroud .
5. Remove the optical drive .
6. Remove the hard drive carrier .
7. Remove the hard-drive assembly .
8. Remove the SAS Backplane .
9. Remove the power supply .
10. Remove the control panel .
11. Remove the system fans .
12. Remove the removable fan bracket .
13. Remove the expansion card cages .
14. Remove the power distribution unit .
15. Remove the center riser board .
16. Remove the CMOS battery .

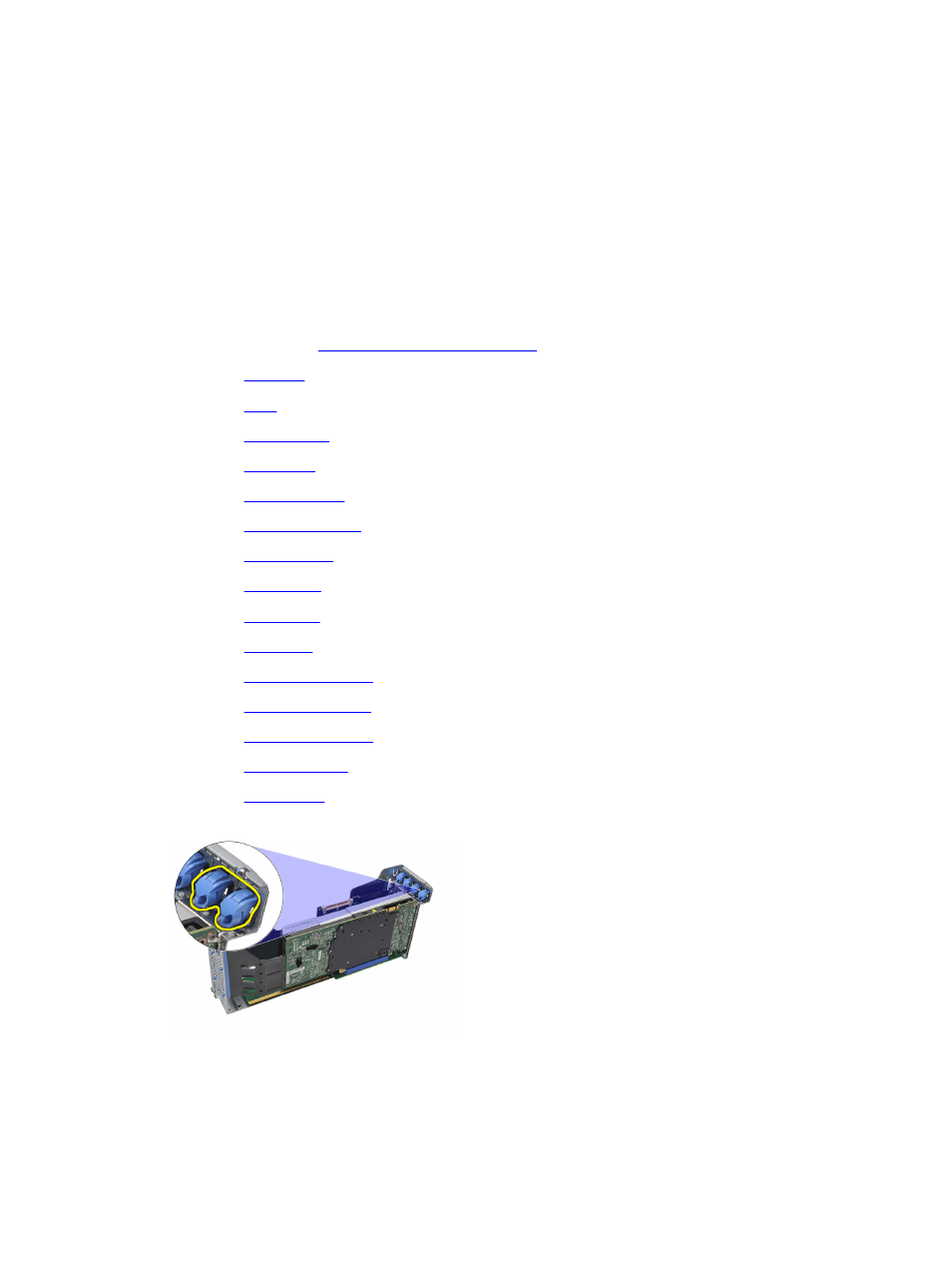

17. Press the release latch to unsecure the video card.
18. Press the release tab in the direction shown by (1) and carefully lift the video card up and away from the computer
as shown by direction marked (2).
