Power Supply
Removing the Power Supply
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the front bezel .
3. Remove the cover .
4. Remove the cooling shroud .
5. Remove the optical drive .
6. Remove the hard drive carrier .
7. Remove the hard-drive assembly .
8. Remove the SAS Backplane .

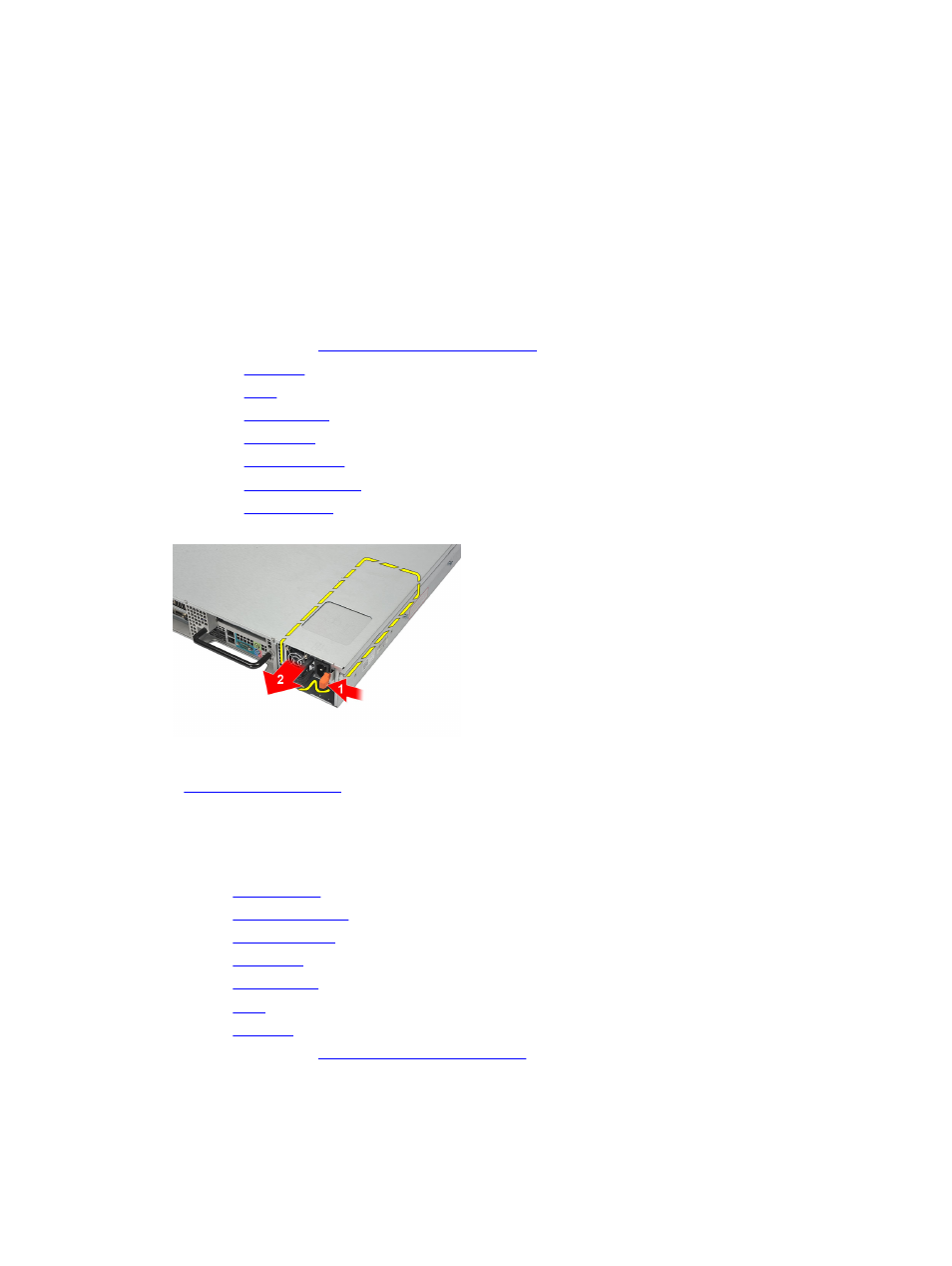

9. Press and hold the orange tab towards latch. Then pull the power supply unit away from the computer.
Related Links
Installing the Power Supply
Installing the Power Supply
1. Insert the power supply unit into the computer until it clicks into place.
2. Install the SAS backplane .
3. Install the hard drive assembly .
4. Install the hard-drive carrier .
5. Install the optical drive .
6. Install the cooling shroud .
7. Install the cover .
8. Install the front bezel .
9. Follow the procedures in After Working Inside Your Computer .
Related Links
