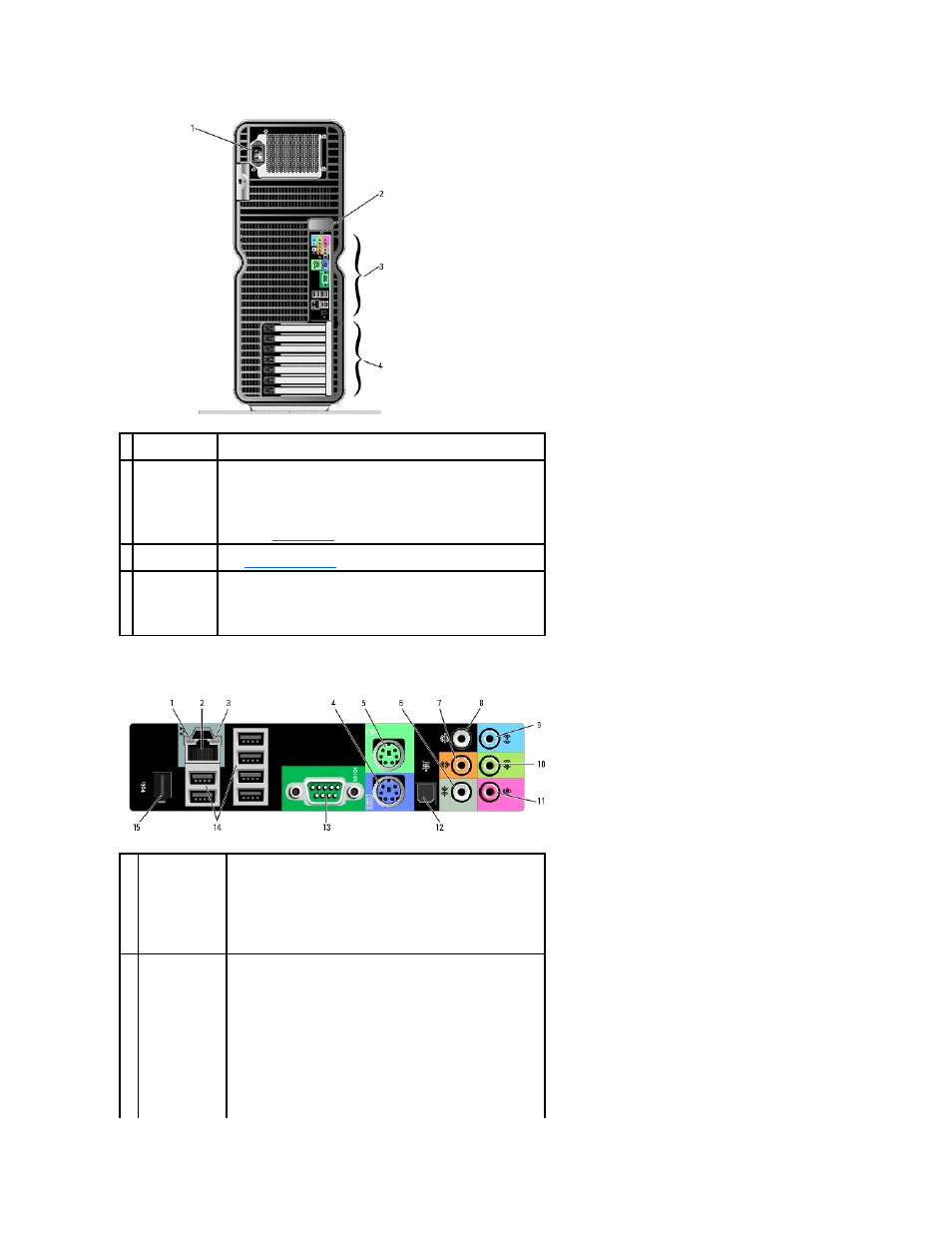

Back I/O Connectors
1 power connector Insert the power cable. The appearance of this connector may differ
from what is pictured.
2 back panel LEDs
(2)
Multi-colored lights provide illumination for the I/O panel on the back of
the computer.
NOTE:
The color of the back panel LEDs can be adjusted in system
setup (see
System Setup
).
3 back I/O
connectors
Plug serial, USB, and other devices into the appropriate connectors
(see
4 card slots
Access connectors for any installed PCI or PCI Express cards.
NOTE:
Some connector slots support full-length cards.
1
link integrity light
l
Green — A good connection exists between a 10-Mbps
network and the computer.
l
Orange — A good connection exists between a 100-Mbps
network and the computer.
l
Yellow — A good connection exists between a 1000-Mbps (1-
Gbps) network and the computer.
l
Off — The computer is not detecting a physical connection to
the network.
2
network adapter
connector
NOTICE:
Do not plug a telephone cable into the network adapter
connector.
Use the network adapter connector to attach your computer to a
network or broadband device. Connect one end of a network cable
to either a network jack or your network or broadband device, and
then connect the other end of the network cable to the network
adapter connector on your computer. A click indicates that the
network cable has been securely attached.
On computers with an additional network connector card, use the
connectors on the card and on the back of the computer when
setting up multiple network connections (such as a separate intra-
