Installing System Components
To replace the SAS RAID controller daughter card battery, see "Replacing the SAS RAID Controller
Daughter Card Battery" on page 92.

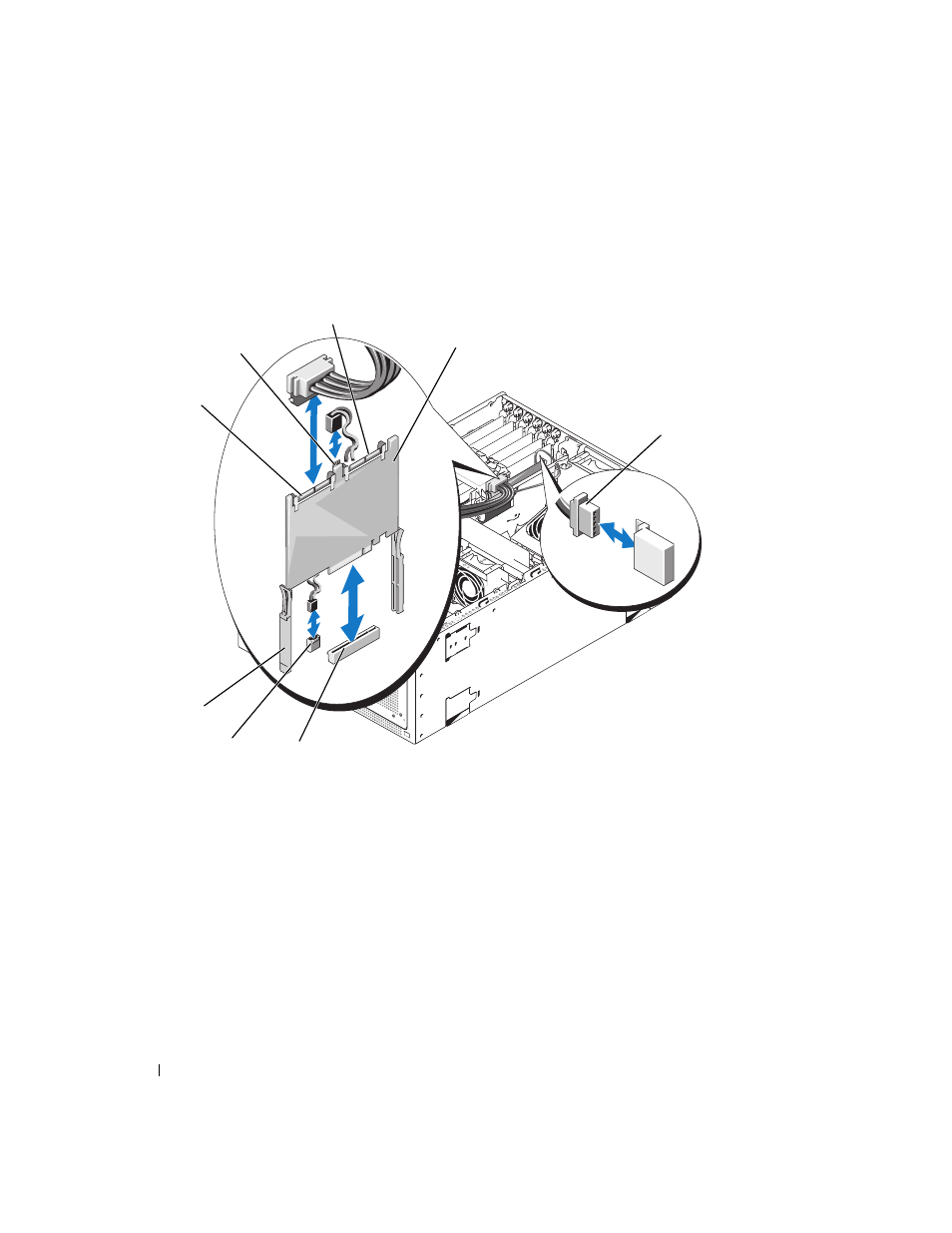

Figure 3-26. Installing and Removing the SAS RAID Controller Daughter Card
6
1
3
8
2
5
7
4
1 SAS RAID controller daughter
card 2 RAID battery cable (SAS RAID
only) 3 SAS RAID controller daughter
card slot socket
(INT_STORAGE)
4 hard drive LED activity
indicator system board
connector (HD_ACT_CARD) 5 slide rails (2) 6 SAS RAID connector 0
7 hard drive LED activity
indicator cable connector 8 SAS RAID connector 1
