Tention cage. see figure 3-13, And illustrated in figure 3-13 should – Dell PowerEdge 1900 User Manual
Page 64
64
Installing System Components

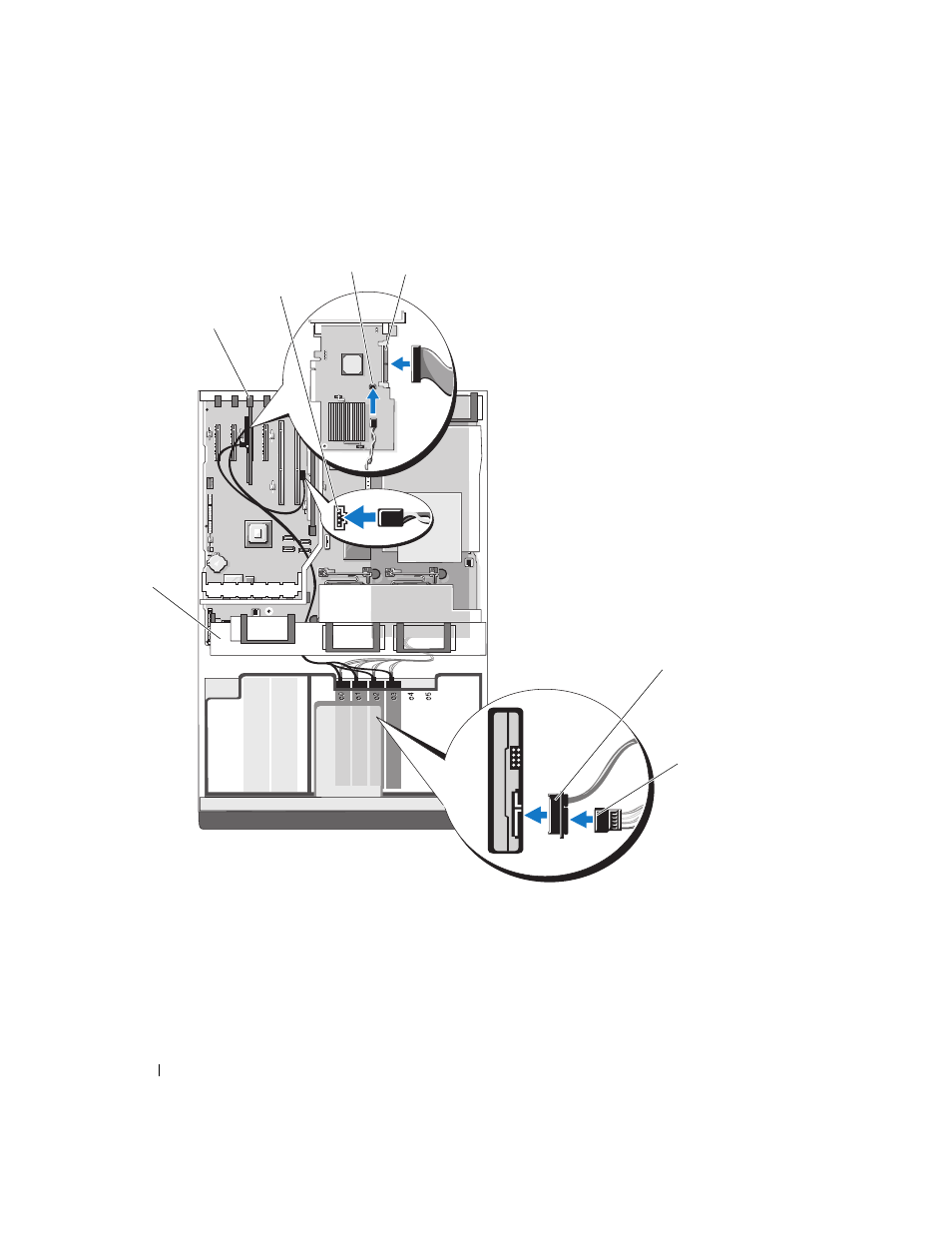

Figure 3-13.
Four-hard-drive Configuration (SAS Controller Card)
1
central fan retention bracket
2
expansion-slot 4 (PCIE_X4_4)
3
hard drive activity system
board connector
4
hard drive activity system
board connector
5
SAS1 connector
6
hard drive interface cable
connector
7
power cable connector
3
4
6
7
5
2
1
