Installing System Components

51

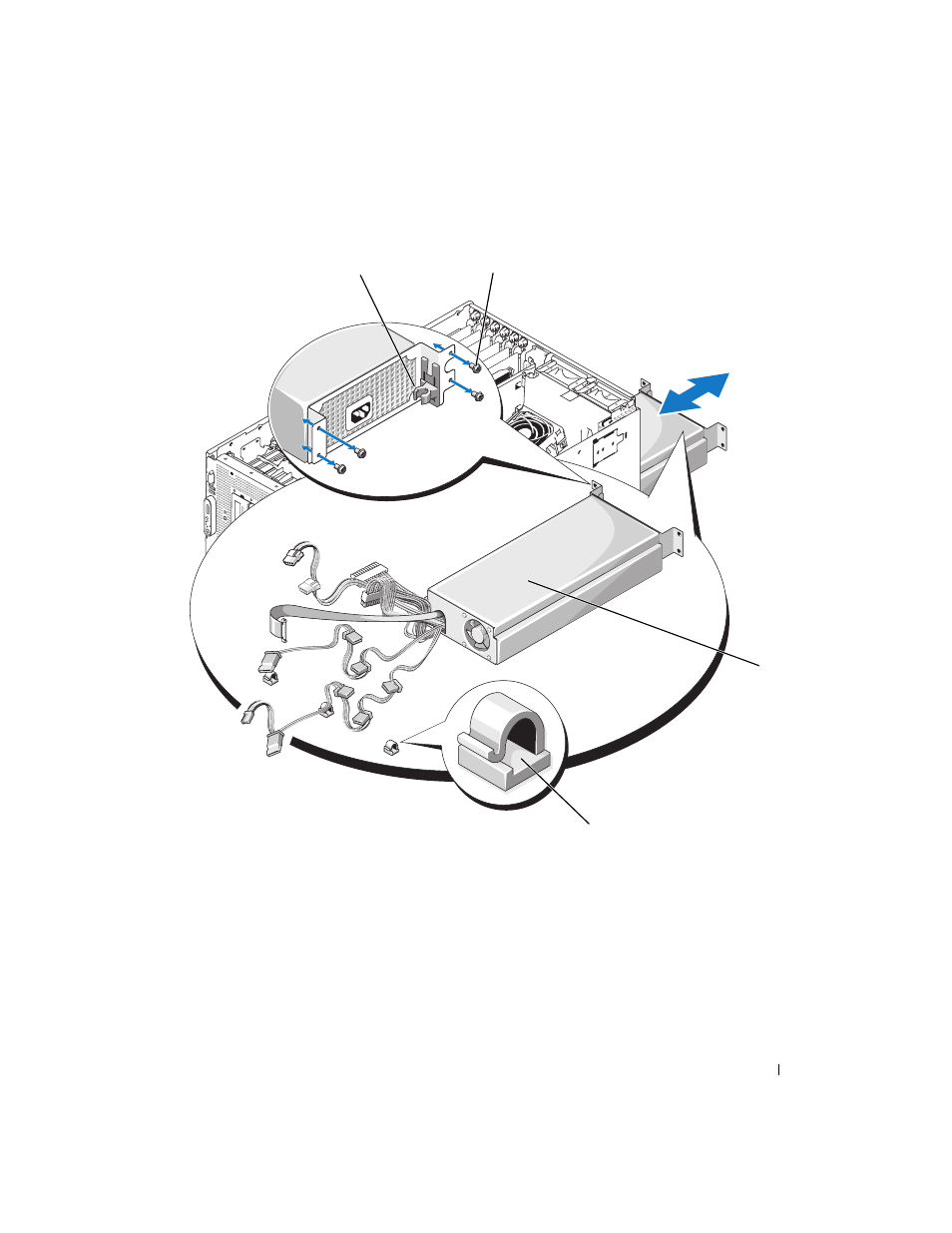

Figure 3-4.

Installing and Removing the Power Supply

Installing the Power Supply

1 Slide the power supply into the chassis until the power supply is fully seated in the chassis. See

Figure 3-4.

2 Install the four screws to secure the power supply to the system’s back panel.

2

3

1

4

1

power cable retention bracket

2

screws (4)

3

power supply

4

cable retention clips (3)
