Front-Panel Features

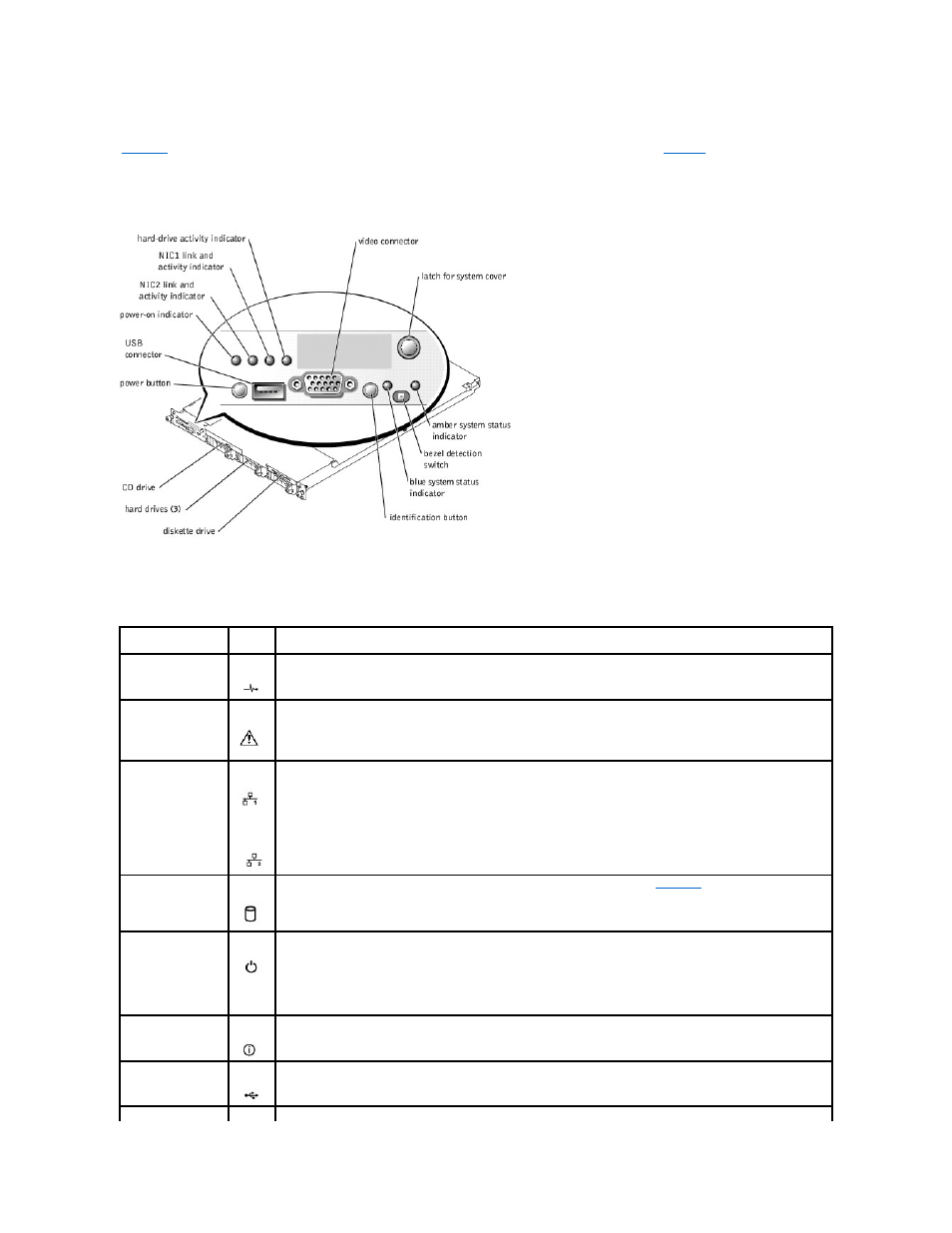

Figure 3 -2 shows the controls, indicators, and connectors located behind the optional bezel on the system's front panel. Table 3 -2 provides a description of
each feature.
Figure 3-2. Front-Panel Features
Table 3-2. Front-Panel LED Indicators, Buttons,
and Connectors
Indicator, Button,
or Connector Icon Description
Blue system status
indicator The blue system status indicator lights up during normal system operation. Both the systems management software and
the identification buttons located on the front and back of the system can cause the blue system status indicator to flash
to identify a particular system.
Amber system status
indicator The amber system status indicator flashes when the system needs attention. Check for a problem with the power
supplies, fans, system temperature, or hard drives.
NOTE: If the system is connected to AC power and an error has been detected, the amber system status indicator flashes
regardless of whether the system has been powered on.
NIC1 and NIC2 link
and activity indicators The link and activity indicators for the two integrated NICs light intermittently when the NICs are in use.
Hard-drive activity
indicator The green hard-drive activity indicator flashes when the hard drives are in use. See Figure 3 -3 for more information on
hard-drive indicators.
Power-on indicator,
power button The power-on indicator lights when the system power is on.
The power button controls the DC power supply output to the system.
NOTE: If you turn off the system using the power button and the system is running an ACPI-compliant operating system,
the system performs a graceful shutdown before the power is turned off. If the system is not running an ACPI-compliant
operating system, the power is turned off immediately after the power button is pressed.
Identification button The identification buttons on the front and back panels can be used to locate a particular system within a rack. When one
of these buttons is pushed, the blue system status indicator on the front and back blinks until one of the buttons is
pushed again.
USB connector Connects a USB 1.1-compliant device to the system.
Video connector Connects a monitor to the system.
