16
About Your System

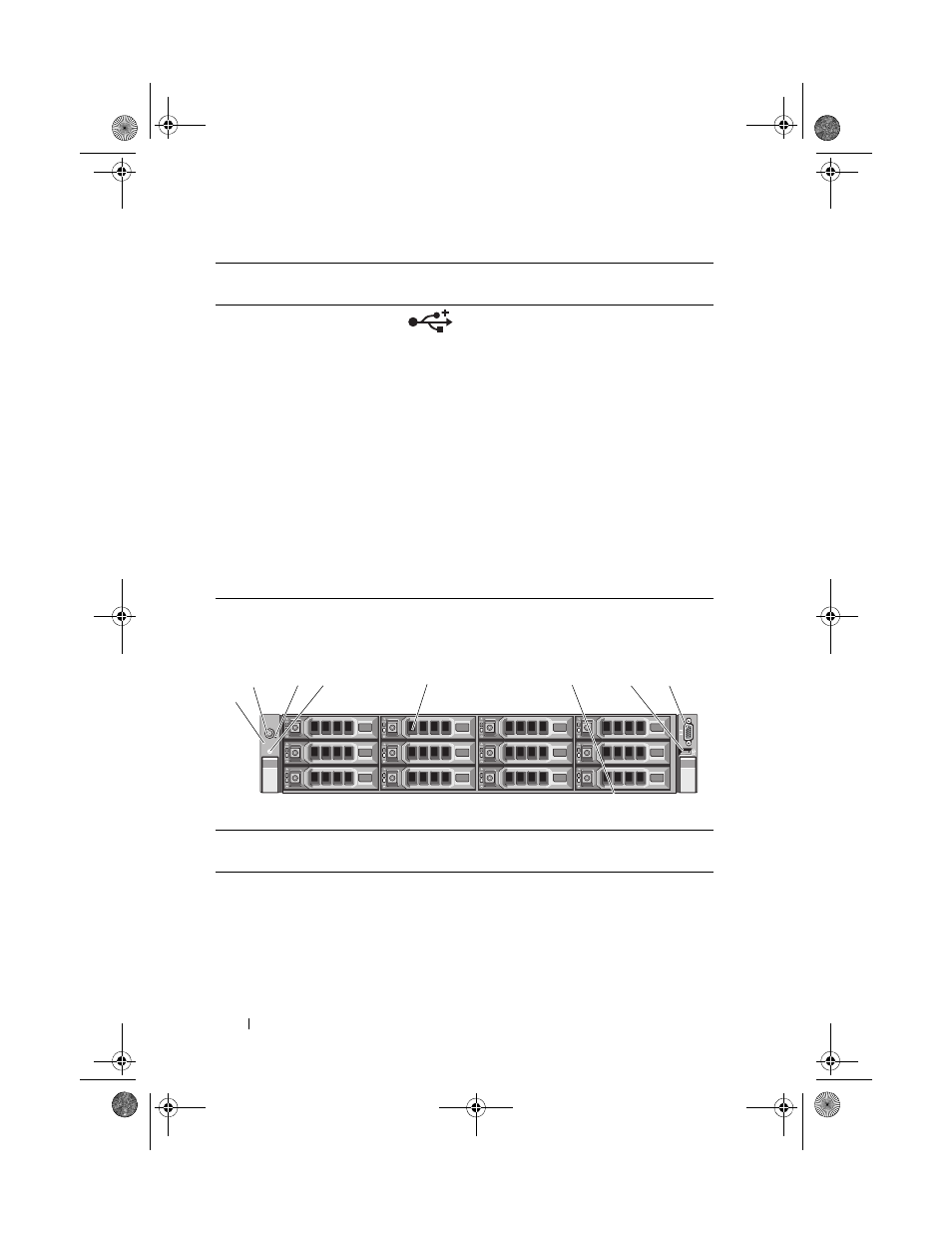

Figure 1-2. Front-Panel Features and Indicators (Twelve–Hard-Drive System)
7 USB connectors (2) Connect USB devices to the system.
The ports are USB 2.0-compliant.
8 Hard drives
Four–hard-drive
systems
Eight–hard-drive
systems
Up to four 3.5-inch, cabled SAS or
SATA drives.
Up to eight 3.5-inch or 2.5-inch,
hot-swappable SAS or SATA drives.
9 System identification
panel A slide-out panel for system information
including the Express Service tag,
embedded NIC MAC address, and
iDRAC6 Enterprise card MAC address.
10 Optical drive
(optional) One optional slimline SATA DVD-ROM
drive or DVD+/-RW drive.
NOTE:
DVD devices are data only.
Item Indicator, Button,
or Connector Icon Description
1 LED panel The LED panel has four diagnostic
indicator lights that display error codes
during system startup. See "Diagnostic
Lights (Optional)
" on page 27.
Item Indicator, Button,
or Connector Icon Description
2 4 8 5 7 3
1
6
