D. see figure 3-30, Figure 3-30 – Dell PowerEdge R510 User Manual
Page 148
148
Installing System Components

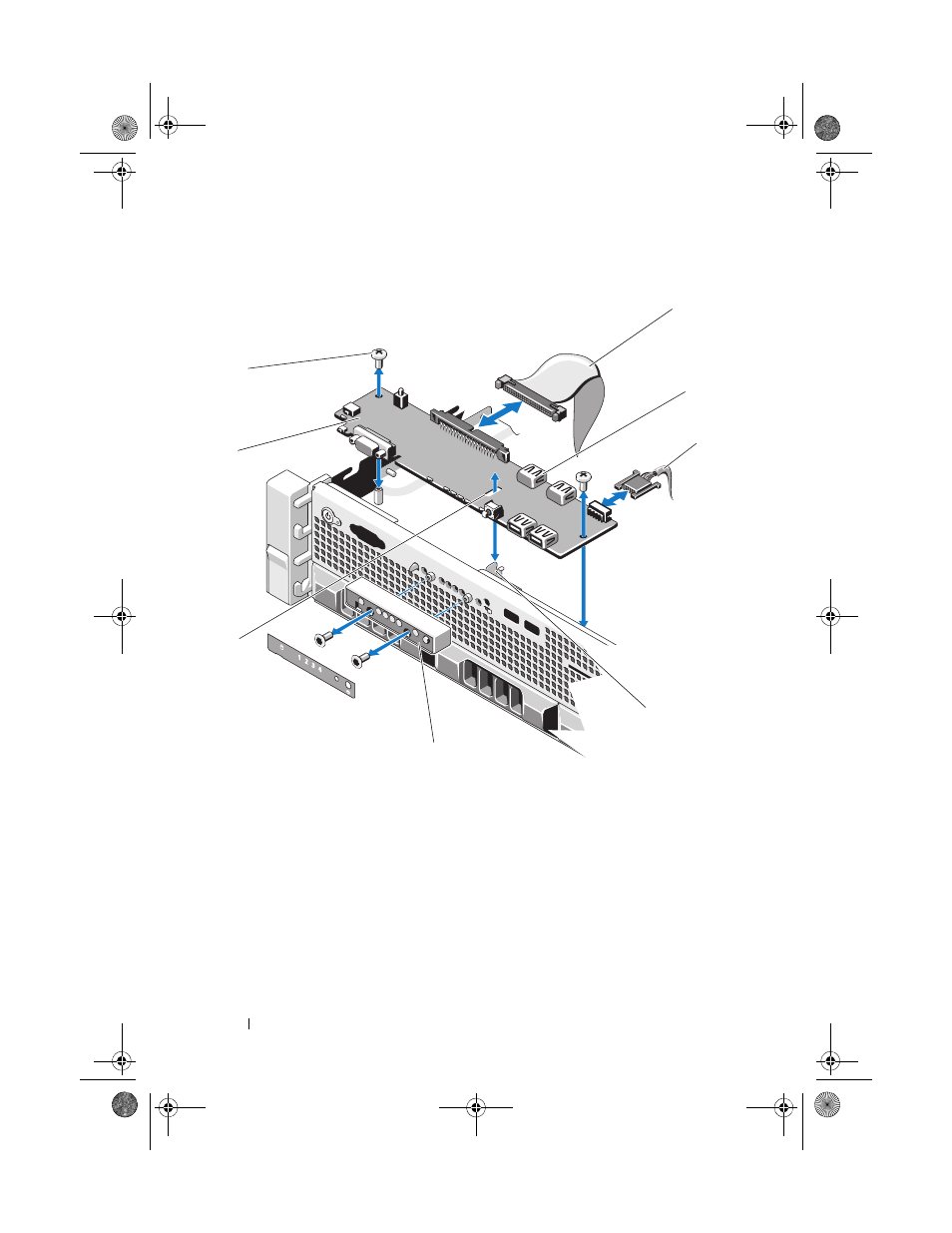

Figure 3-30.
Removing and Installing the Control Panel—LED (Four–Hard-Drive System)
1
control panel cable
2
USB memory key connector
3
power cable
4
standoff
5
LED display module
6
slot
7
control panel board
8
mounting screws (2)
5
7
1
2
4
8
6
3
book.book Page 148 Friday, November 20, 2009 2:56 PM
