System-Board Connectors

See

Figure 6

-1

and

Table 6

-1

for the location and description of system board connectors.

SCSI Backplane Board Connectors

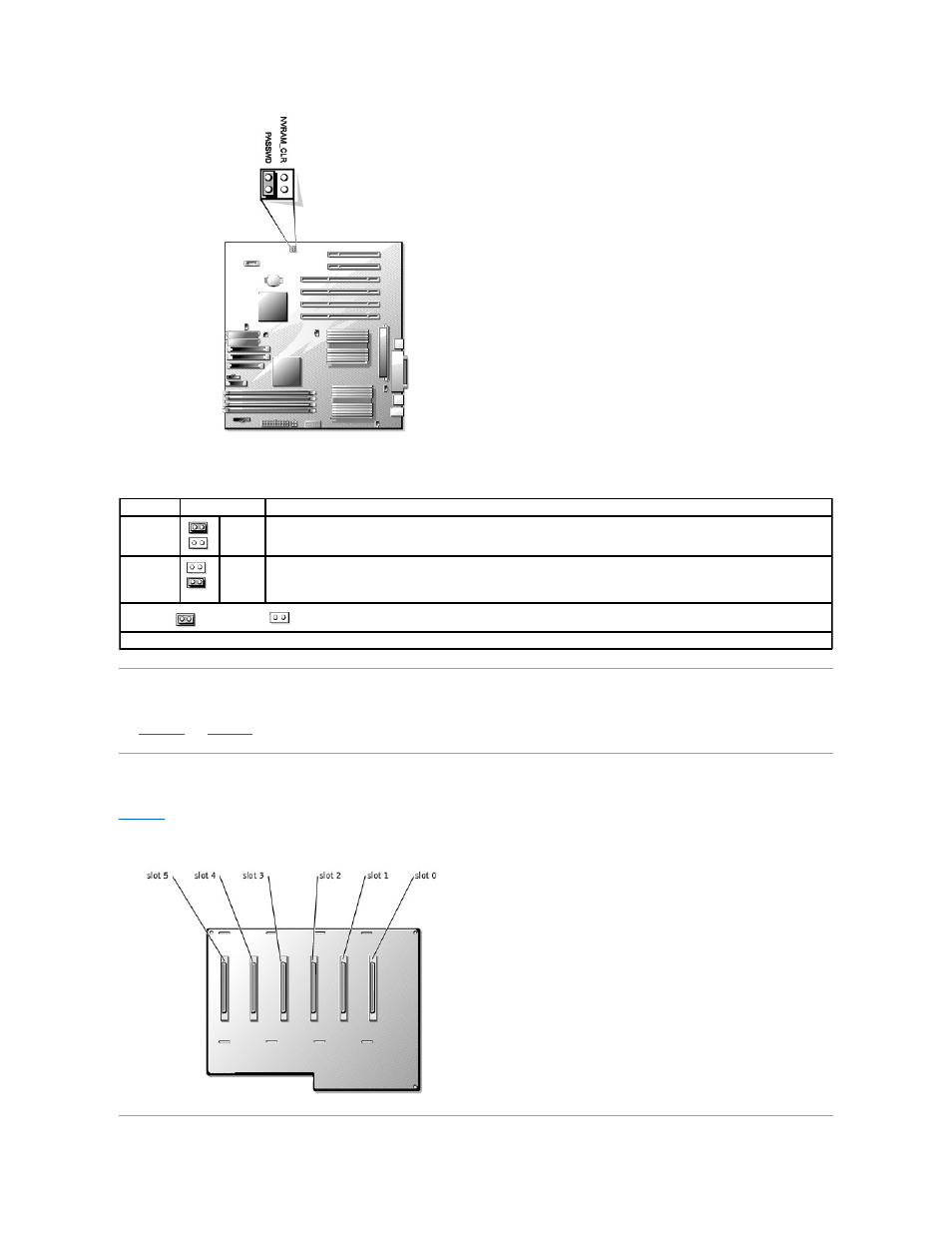

Figure A

-3

shows the location of the connectors on the back of the SCSI backplane board.

Figure A-3. Connectors on the SCSI Backplane Board

Table A-1. System-Board Jumper Settings

Jumper

Setting

Description

PASSWD

(default) The password feature is enabled.

The password feature is disabled.

NVRAM_CLR

(default) The configuration settings are retained at system boot.

The configuration settings are cleared at next system boot. (If the configuration settings become corrupted to the point
where the system will not boot, install the jumper plug and boot the system. Remove the jumper before restoring the
configuration information.)

jumpered

unjumpered

NOTE:

For the full name of an abbreviation or acronym used in this table, see "Abbreviations and Acronyms."
