72 Jumpers and Connectors

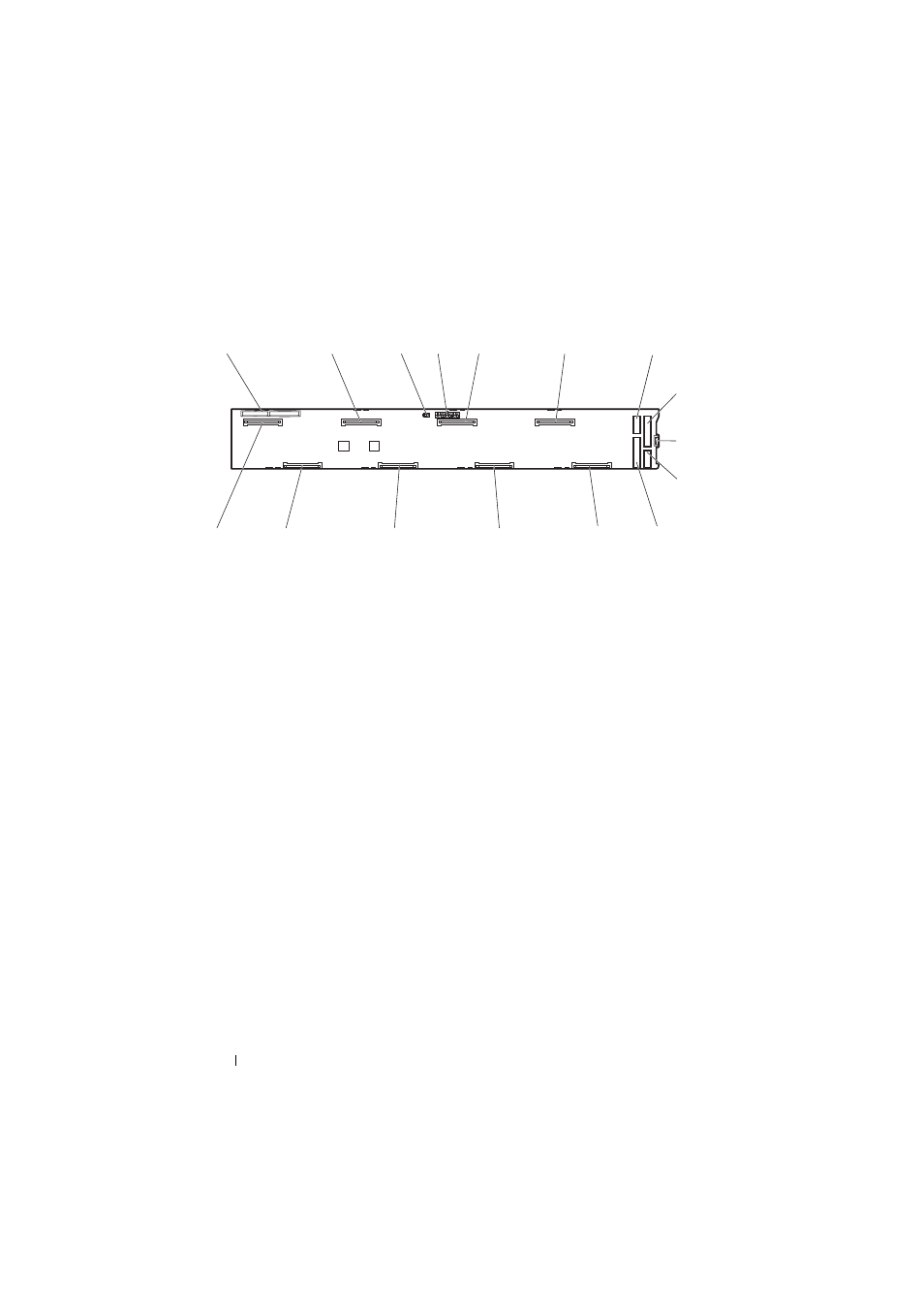

Figure 5-2. Right Hard-Drive Backplane
1 backplane-bridge board
connector
2 onboard SAS/SATA connector
6 or 18
3 power sensor connector 4 power connector
5 onboard SAS/SATA connector
8 or 20
6 onboard SAS/SATA connector
10 or 22
7 mini-SAS connector 0 8 mini-SAS connector 1
9 expander I2C connector 10 mini-SAS connector 2
11 mini-SAS connector 3 12 onboard SAS/SATA connector
11 or 23
13 onboard SAS/SATA connector
9 or 21
14 onboard SAS/SATA connector
7 or 19
15 onboard SAS/SATA connector
5 or 17
16 onboard SAS/SATA connector
4 or 16
1 2 3 4 5
10
11 12 13 14 15
6 7
8
9
16
