Installing System Components 35

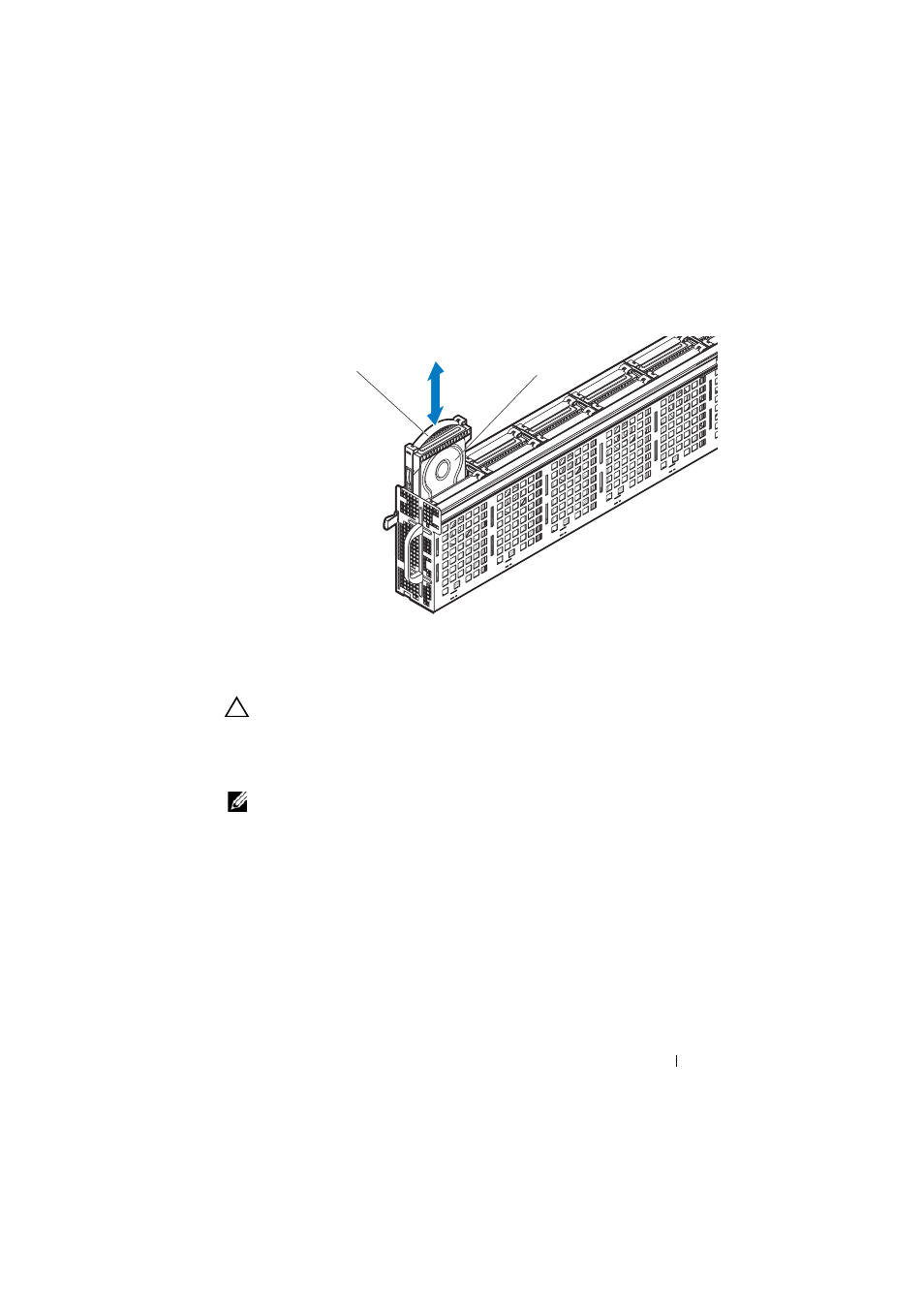

Figure 2-6. Removing and Installing a Standard Hard-Drive Carrier
Installing a Standard Hard-Drive Carrier
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized is not covered by
warranty. Read and follow the safety instructions that came with the product.
NOTE: Orient the standard hard-drive carrier so that the carrier’s strap handle is
flush against the wall of the hard-drive cage. See Figure 2-6.
1 Align the standard hard-drive carrier to the drive bay and then slide the
hard-drive carrier into the drive bay until the drive is fully seated. See
Figure 2-6.
2 Close the sled. See "Closing the Sled" on page 29.
1 strap handle 2 standard hard-drive carrier
1 2
