Installing a Sled
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized is not covered by
warranty. Read and follow the safety instructions that came with the product.
1 Orient the sled so that the release latch is in the left of the sled. See
Figure 2-4.
2 Slide the new sled into the server enclosure until the sled is fully seated
and the sled release tab snaps into place. See Figure 2-4.
Sled Blank
Removing a Sled Blank
CAUTION: To ensure proper airflow in the system, if a module is removed it
should be immediately replaced with another sled or sled blank.
Squeeze and hold the release latches and slide the blank out of the enclosure.
See Figure 2-5.

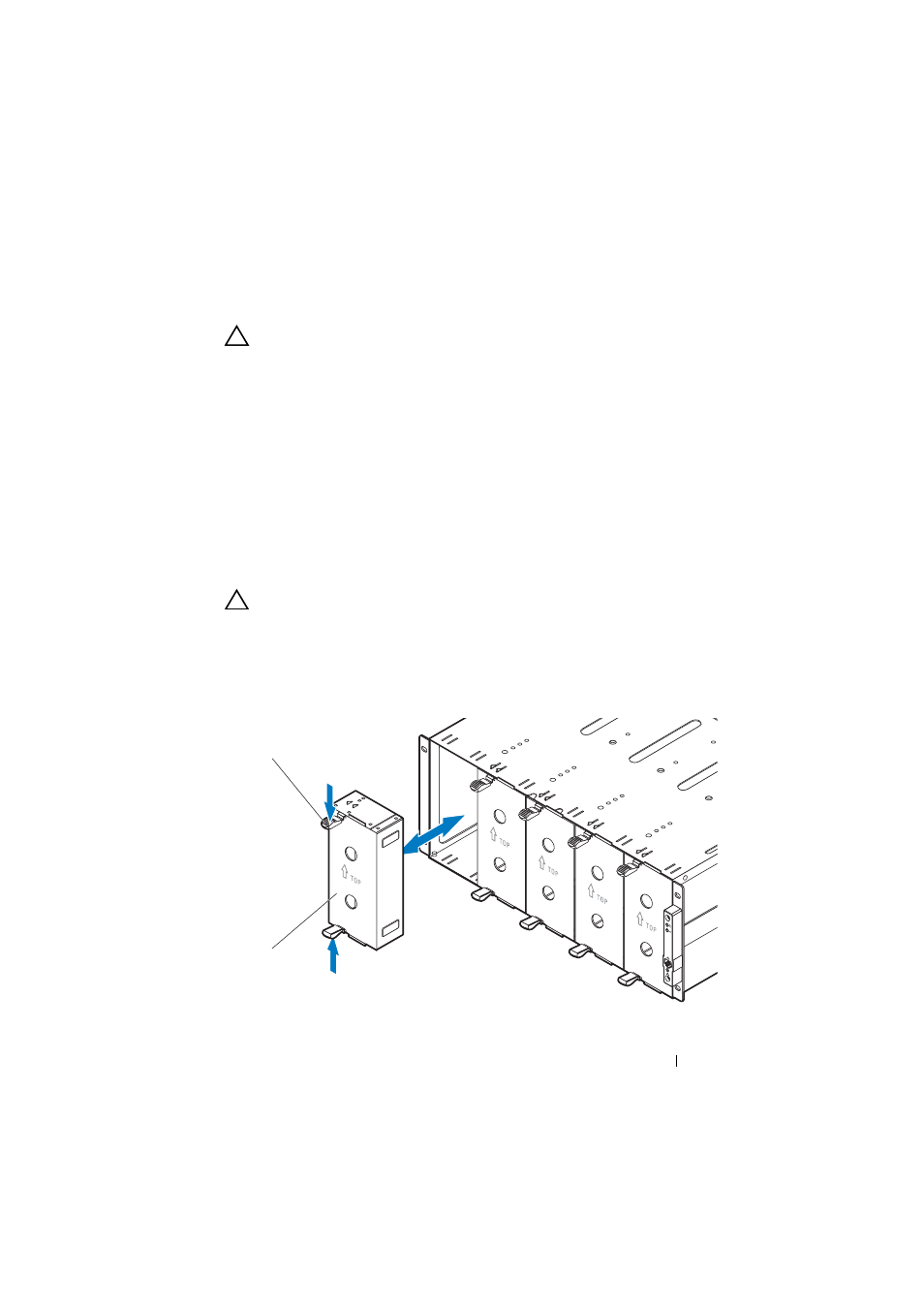

Figure 2-5. Removing and Installing a Sled Blank
1 release latches (2) 2 sled blank
1
2
