STK11C68-5 (SMD5962-92324)
Document Number: 001-51001 Rev. *A
Page 2 of 15
Pinouts
Pin Definitions
Pin Name
Alt
I/O Type
Description
A
0
–A
12
Input
Address Inputs. Used to select one of the 8,192 bytes of the nvSRAM.
DQ
0
-DQ
7
Input/Output
Bidirectional Data I/O Lines. Used as input or output lines depending on operation.
WE
W
Input
Write Enable Input, Active LOW. When the chip is enabled and WE is LOW, data on the I/O
pins is written to the specific address location.
CE
E
Input
Chip Enable Input, Active LOW. When LOW, selects the chip. When HIGH, deselects the
chip.
OE
G
Input
Output Enable, Active LOW. The active LOW OE input enables the data output buffers during
read cycles. Deasserting OE HIGH causes the I/O pins to tristate.
V
SS
Ground
Ground for the Device. The device is connected to ground of the system.
V
CC
Power Supply Power Supply Inputs to the Device.
1&
$
$
$
$
$
$
$
$
'4
'4
'4
9
66
9
&&
1&
$
$
$
$
'4
'4
'4
'4
'4
$
:(
2(
&(
723

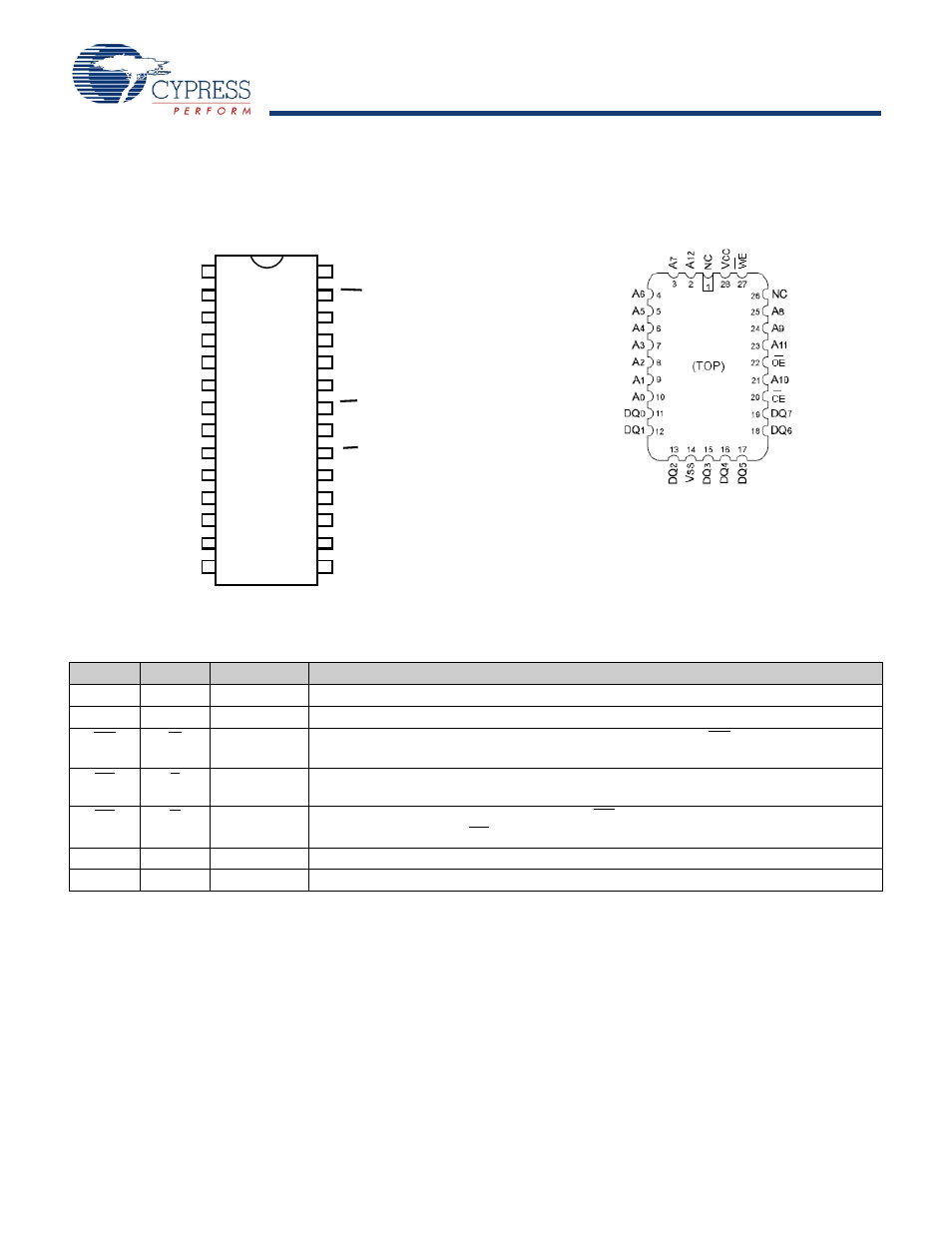

Figure 1. Pin Diagram - 28-Pin DIP
Figure 2. Pin Diagram - 28-Pin LLC
