CHAPTER 3: INSTALLATION
3-6 SEH USER’S GUIDE

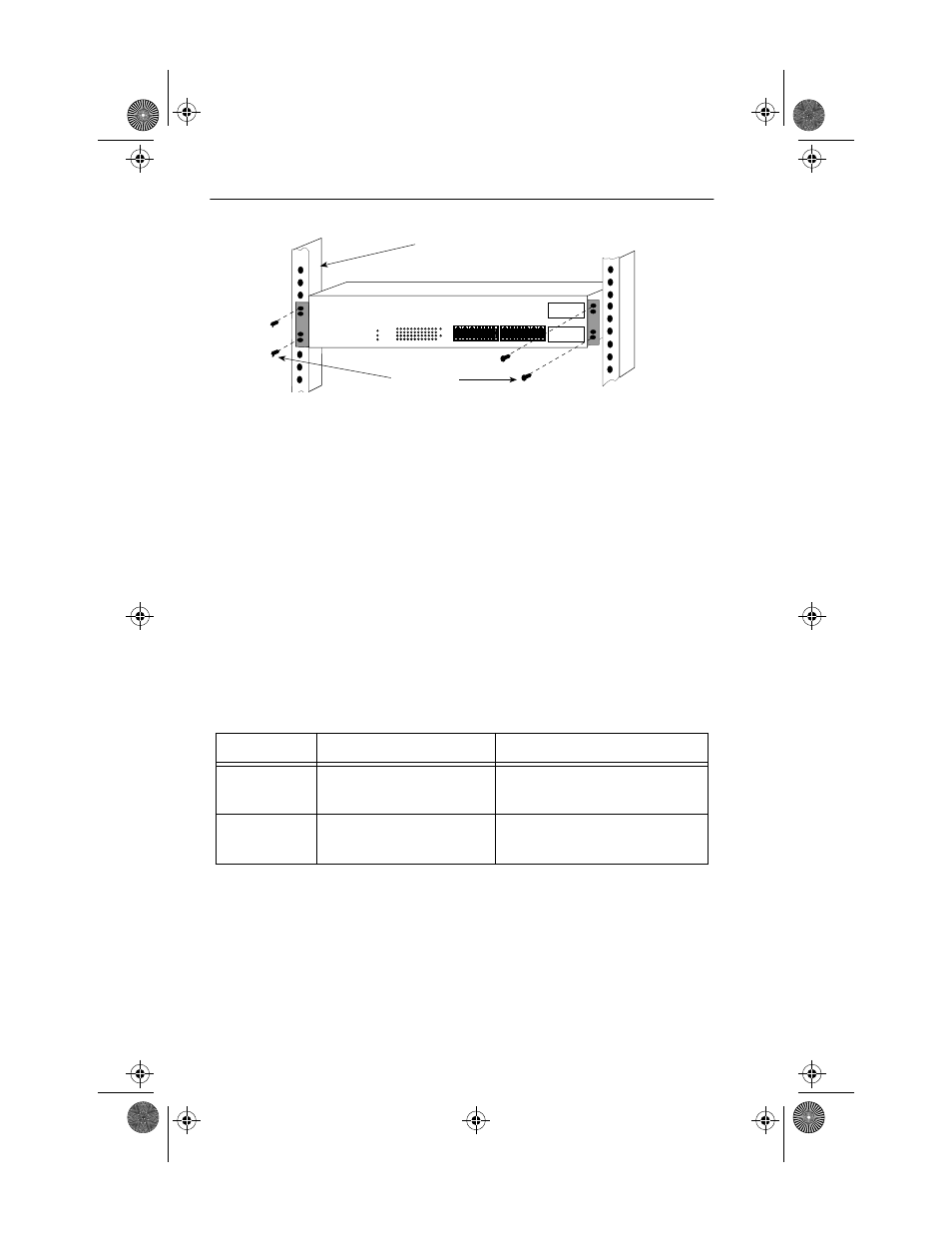

Figure 3-5. Installing the SEH in the Rack
If the installation requires that the SEH is to be stacked, proceed to
Section 3.2.5. Otherwise, continue by connecting power as described in
Section 3.3.
3.2.5 Stacking the SEH
The rear panel of the SEH has an SEH Interconnect Bus In Port (female
connector) and an SEH Interconnect Bus Out Port (male connector).
Daisy chain units together using Cabletron Systems HubSTACK
Interconnect cables. Table 3-1 describes each cable.
Table 3-1. HubSTACK Interconnect Cables
P/N Description Application
9380110 12" HubSTACK
Interconnect Cable SEH to SEH connections.
9380111 18" HubSTACK
Interconnect Cable SEHI or MicroMMAC to
SEH connections.
HubSTACK 10BASE-T HUB WITH LANVIEW®
SEH-24
Screws (4)
19-Inch Rack
1491 05
