Two-Post Rack Installation
33

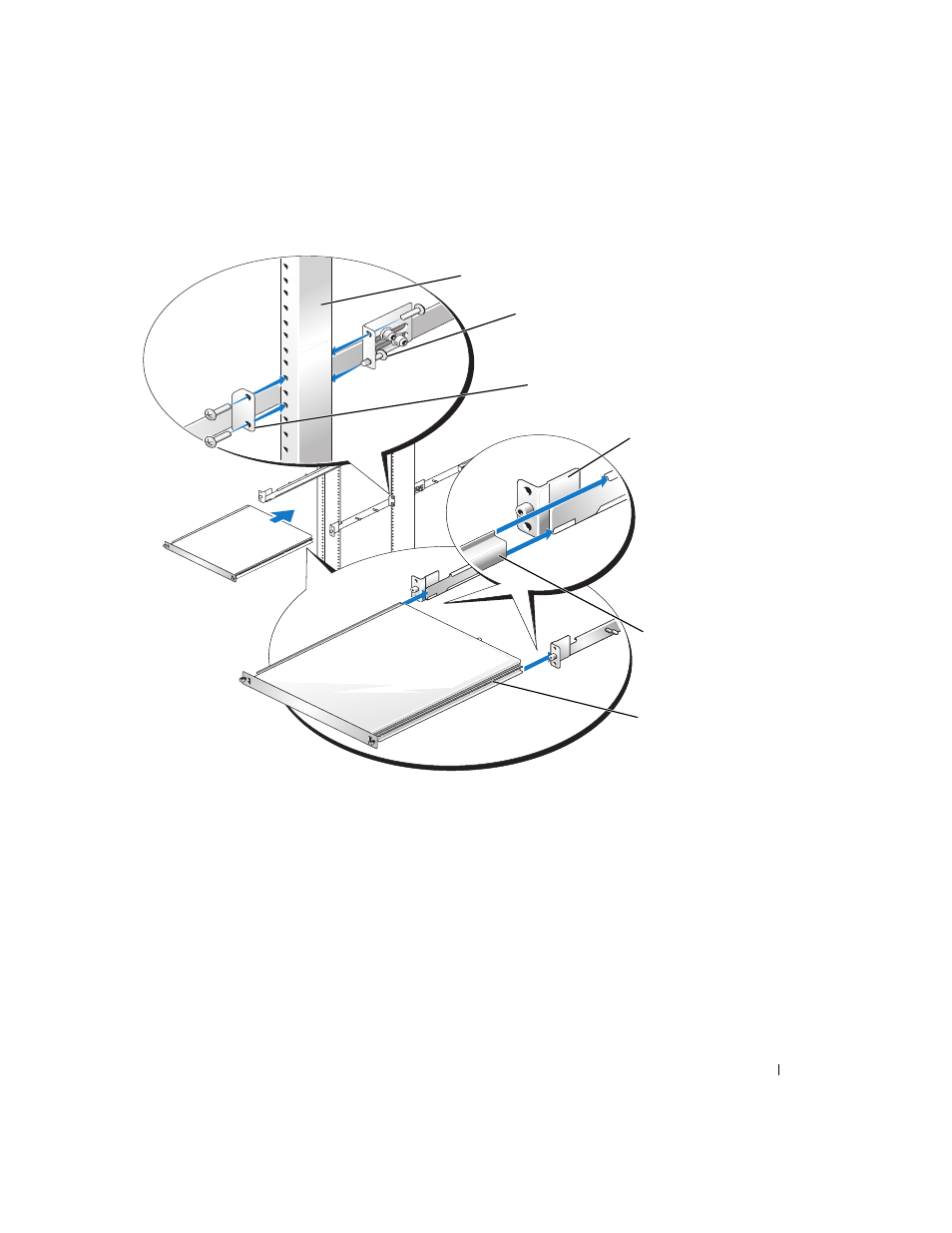

Figure 2-4. Installing the Mounting Rails for Center-Mount Configuration
Flush-Mount Installation
The two-post rack kit is shipped with the brackets configured for a 7.62-cm (3-inch) wide center-mount
installation. See Figure 2-1 for mounting rail components. To prepare the mounting rails for flush-mount
installation in the two-post rack, perform the following steps:
1 Locate the two mounting rails and place them side by side on a smooth work surface, with the front
ends of the mounting rails toward you (see Figure 2-5).
2 Using a 3/8-inch wrench or nut driver, remove two nuts from the adjustable mounting bracket
(see Figure 2-5).
1 two-post open-frame rack 2 12-24 x 0.5-inch pan-head
Phillips screws (4 per rail) 3 center-mount mounting flange
2 mounting rails (2) 4 system rails (2) 6 release latch
2
1
4
6
3
5
