Two-Post Rack Installation
29
Rack Kit Contents
The two-post rack kit includes (see Figure 2-1):
• One pair of mounting rails
• 12-24 x 0.5-inch pan-head Phillips screws (8)
• Releasable tie wraps (2) (not shown in Figure 2-1)

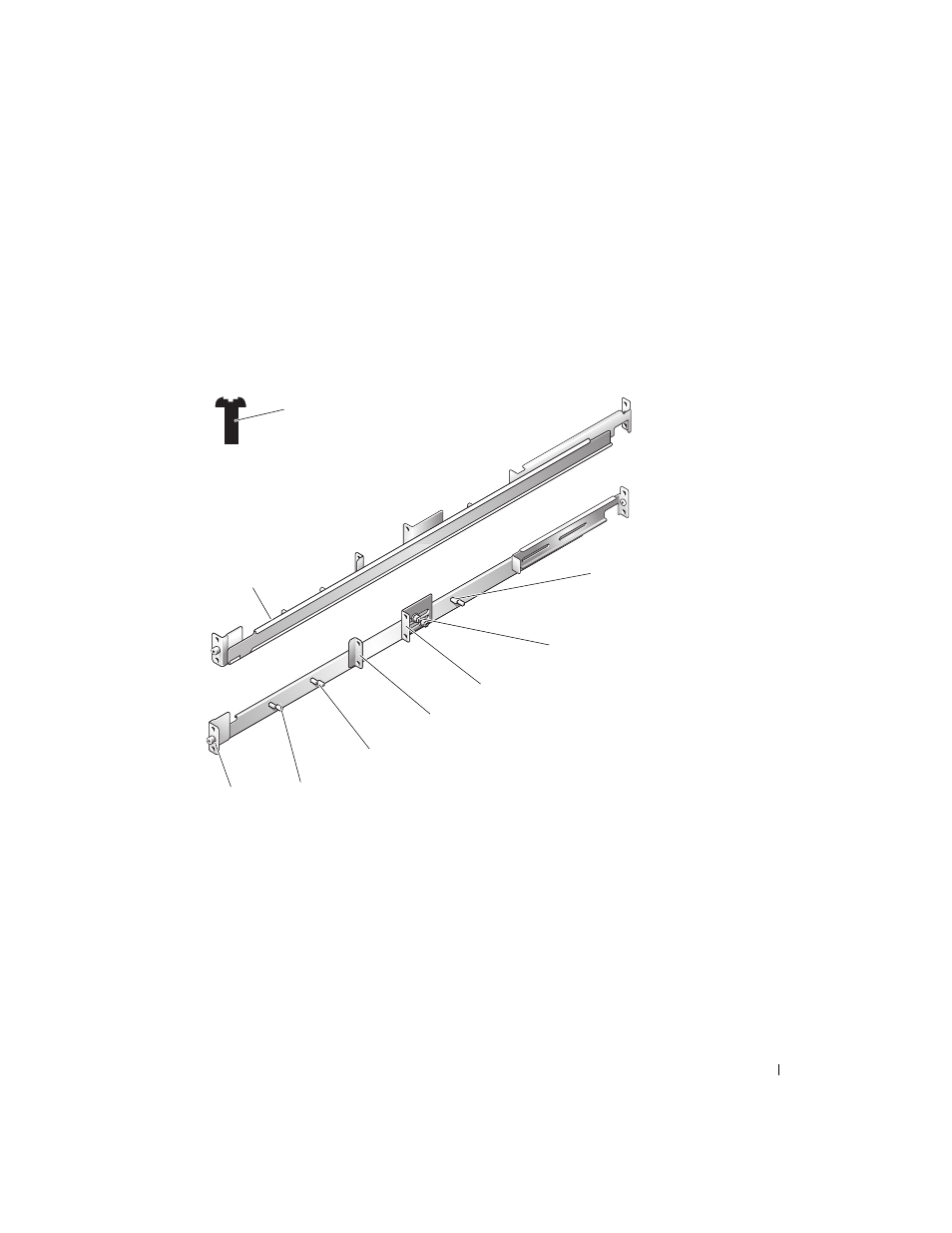

Figure 2-1. Two-Post Rack Kit Components
1 12-24 x 0.5-inch pan-head
Phillips screws (8) 2 15.24-cm (6-inch) wide,
center-mount, threaded studs 3 7.62-cm (3-inch) wide, center-
mount, threaded studs
4 adjustable mounting flange 5 center-mount mounting flange 6 15.24-cm (6-inch) wide, flush-
mount, threaded studs
7 7.62-cm (3-inch) wide, flush-
mount, threaded studs 8 flush-mount mounting flange 9 mounting rails (2)
9
1
7
8
6
5
3
2
4
