Four-Post Rack Installation
23
Installing the Cable-Management Arm
NOTE:
You can attach the cable-management arm to either the right or left mounting rail, depending on how you
intend to route cables from the system.
1 If necessary, press the catch at the center of the cable-management arm retention latch on the tray,
and rotate the latch downwards (see Figure 1-12).
2 At the back of the system, fit the latch on the front end of the cable-management arm onto
the innermost bracket on the slide assembly, until the latch engages (see Figure 1-13).
3 Fit the latch on the unattached end of the cable-management arm onto the outermost bracket on
the slide assembly, until the latch engages (see Figure 1-13).

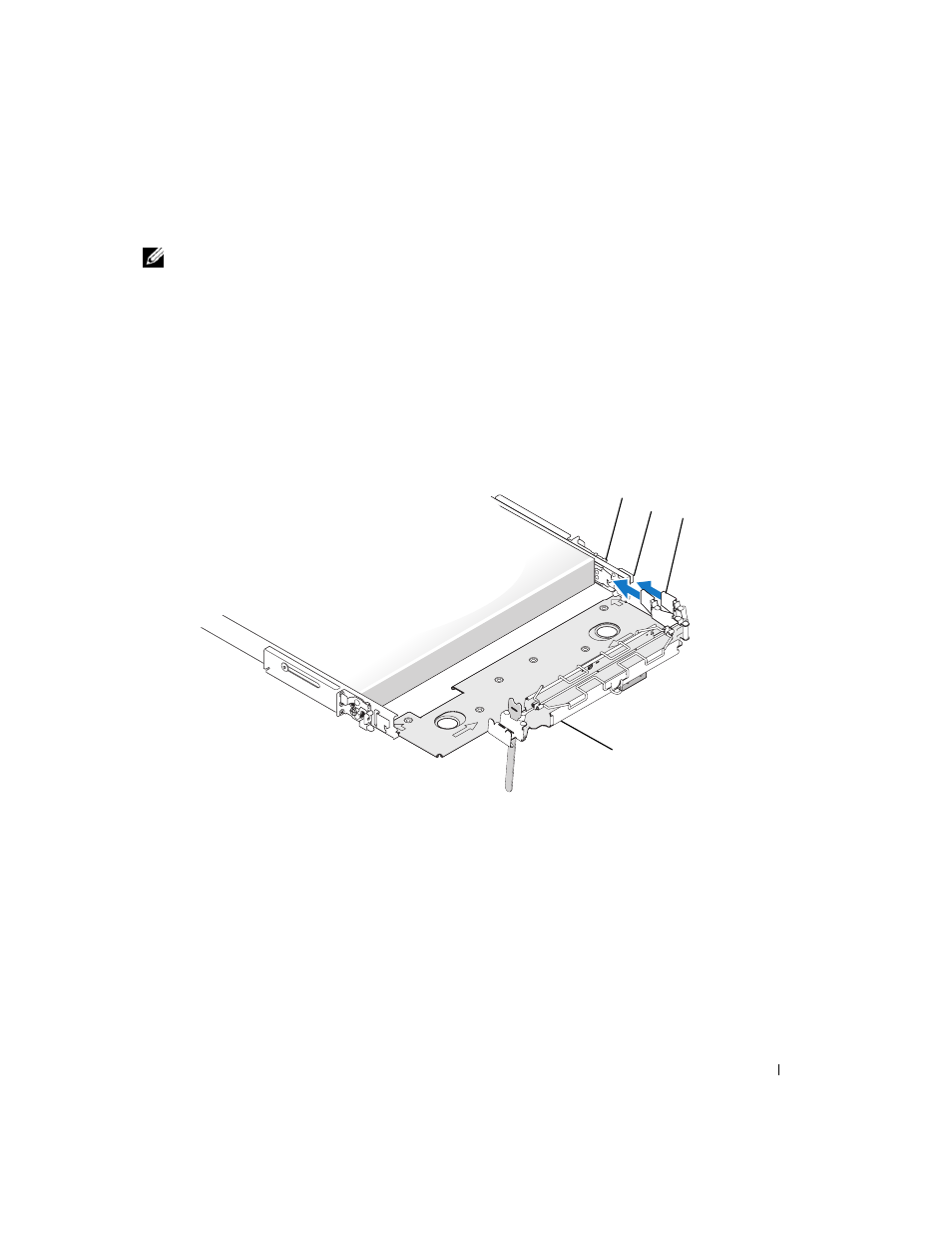

Figure 1-13. Installing the Cable-Management Arm
1 mounting rails (2) 2 brackets (2) 3 latches (2)
4 cable-management arm
back of system
1
2
4
3
