T--298 3-14
a. Remove the batteries from the remote control.
b. Carefully remove the remote cover by inserting a nar-
row flat object between the cover and remote body
and prying apart.
c. Remove the brass screw holding the PCB in place.
d. Carefully remove the PCB board from the remote
body, making sure the battery springs release from
their holders.
e. Locate FR9 on the PCB board (see Figure 3-39).
f. Carefully cut the FR9 jumper wire.
g. Reverse above procedure for reassembly.
CAUTION
When re--assembling, ensure the battery
springs are correctly placed in the battery
spring holders.
PCB
COVER
BODY
BATTERIES
&
COVER
Battery Springs Spring Holders

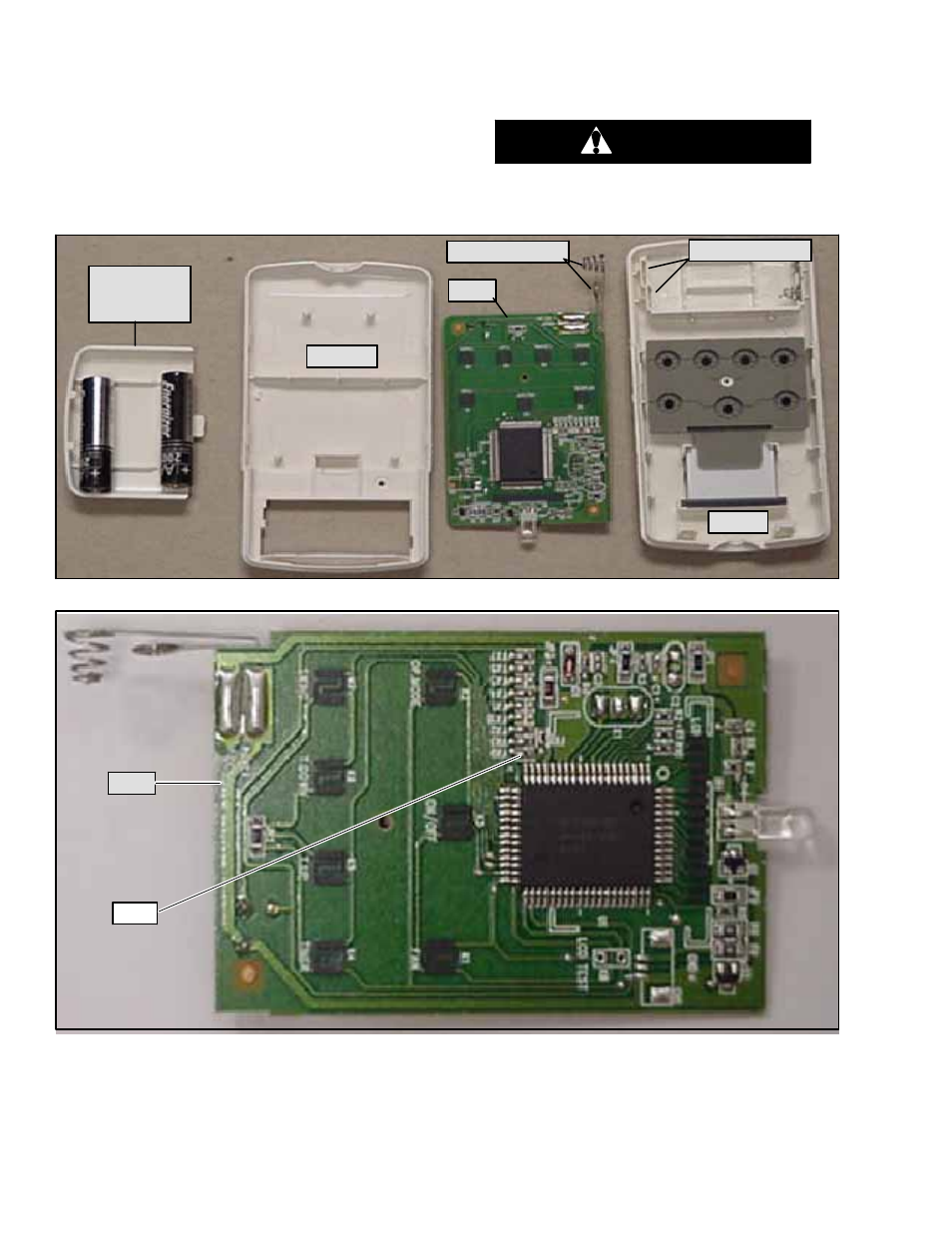

Figure 3-38 Remote Control Components
FR9
PCB
Figure 3-39 Remote Control PCB (FR9 Location)
