3.6 SERVICE -- UPPER UNIT -- LOW PROFILE
3.6.1 Exterior Cover Removal
CAUTION
Coil fins are sharp. Use care when removing
the cover form the base pan to avoid per-
sonal injury.
To remove the exterior cover, do the following:
a. Before working on unit place the master switch in the
OFF position and disconnect all electrical power.
b. Remove (8) screws securing the unit cover to the
base pan assembly. See Figure 3-26.
c. Carefully lift the exterior cover off of the unit base pan
assembly.
d. Reverse above procedure for reassembly.
Screws
Screws

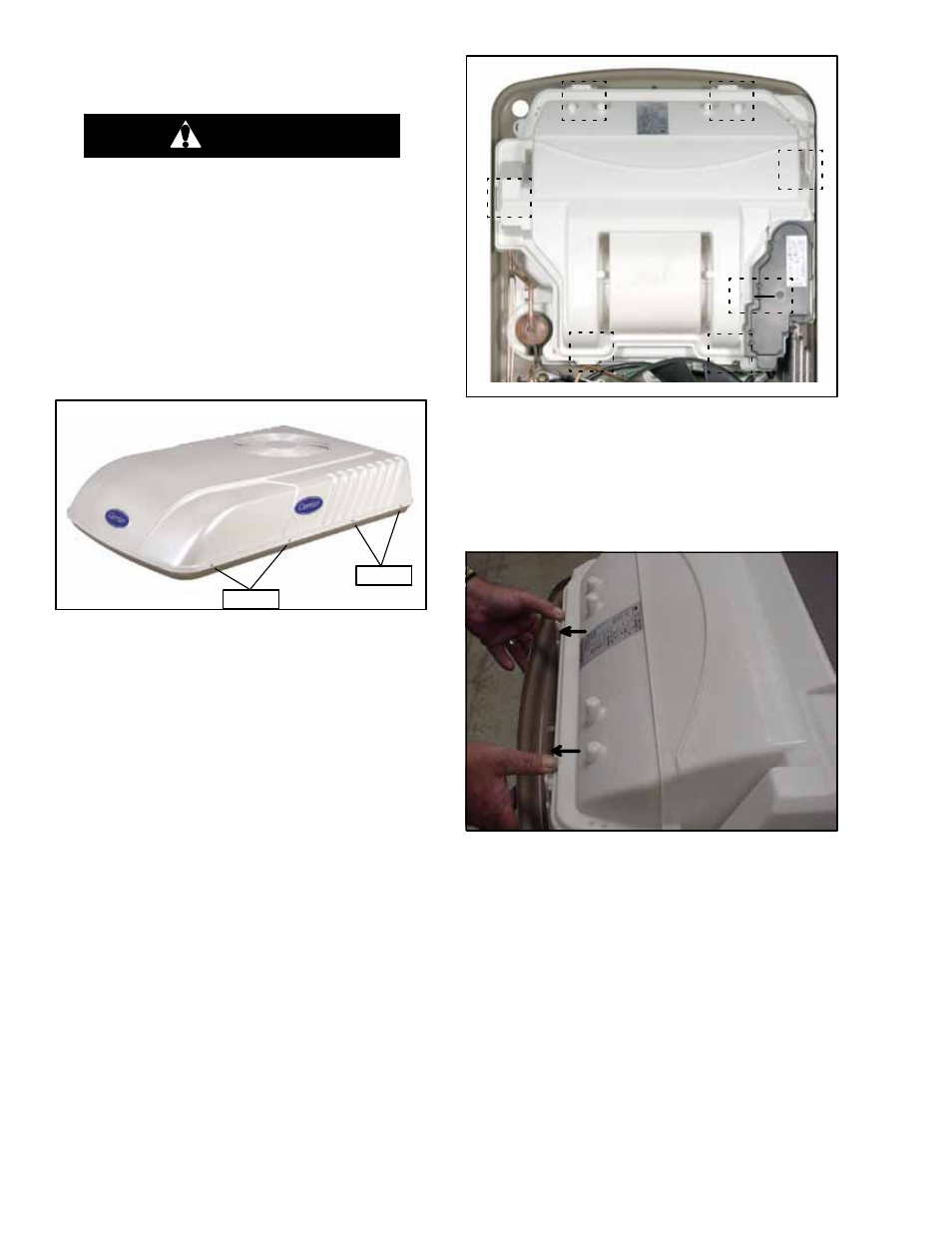

Figure 3-26 Cover Assembly -- Low Profile
3.6.2 Upper Scroll Assembly Removal
To remove the upper scroll assembly, do the following:
a. Remove exterior cover assembly. Refer to paragraph
3.6.1.
b. Release the (2) front, (2) rear, (1) left side and (1) right
side locking tabs (See Figure 3-27) by pulling back on
the tabs (See Figure 3-28).
c. Remove the screw (1) from the control box cover
(See Figure 3-27).
d. With all (6) locking tabs released and control box
screw removed, lift the upper scroll assembly off of
the lower scroll assembly.
e. Reverse above procedure for reassembly. Ensure all
(6) locking tabs snap shut & lock.
b. b.
b.
b.
b. b.
c.
Figure 3-27 Upper Scroll Assembly
Locking Tabs (b.) & Screw Locations (c.)
Figure 3-28 Upper Scroll Assembly
Keeper Tab Release
