Carrier T--298 User Manual

Page 15

background image

T--298

1-6

1

2

3

4

5

6

7

8

9

10

11

12

1.

Telescoping Divider (3 different sizes available)

2.

Divider Assembly

3.

Frame Panel, Insulation Assembly

4.

Control Box Assembly

5.

Control Box Cover

6.

Suction Packing Assembly

7.

Remote Control Assembly

8.

Remote Control Bracket Assembly

9.

Filter Assemblies (2)

10. PCB Cover
11. PCB Main Assembly
12. PCB Display

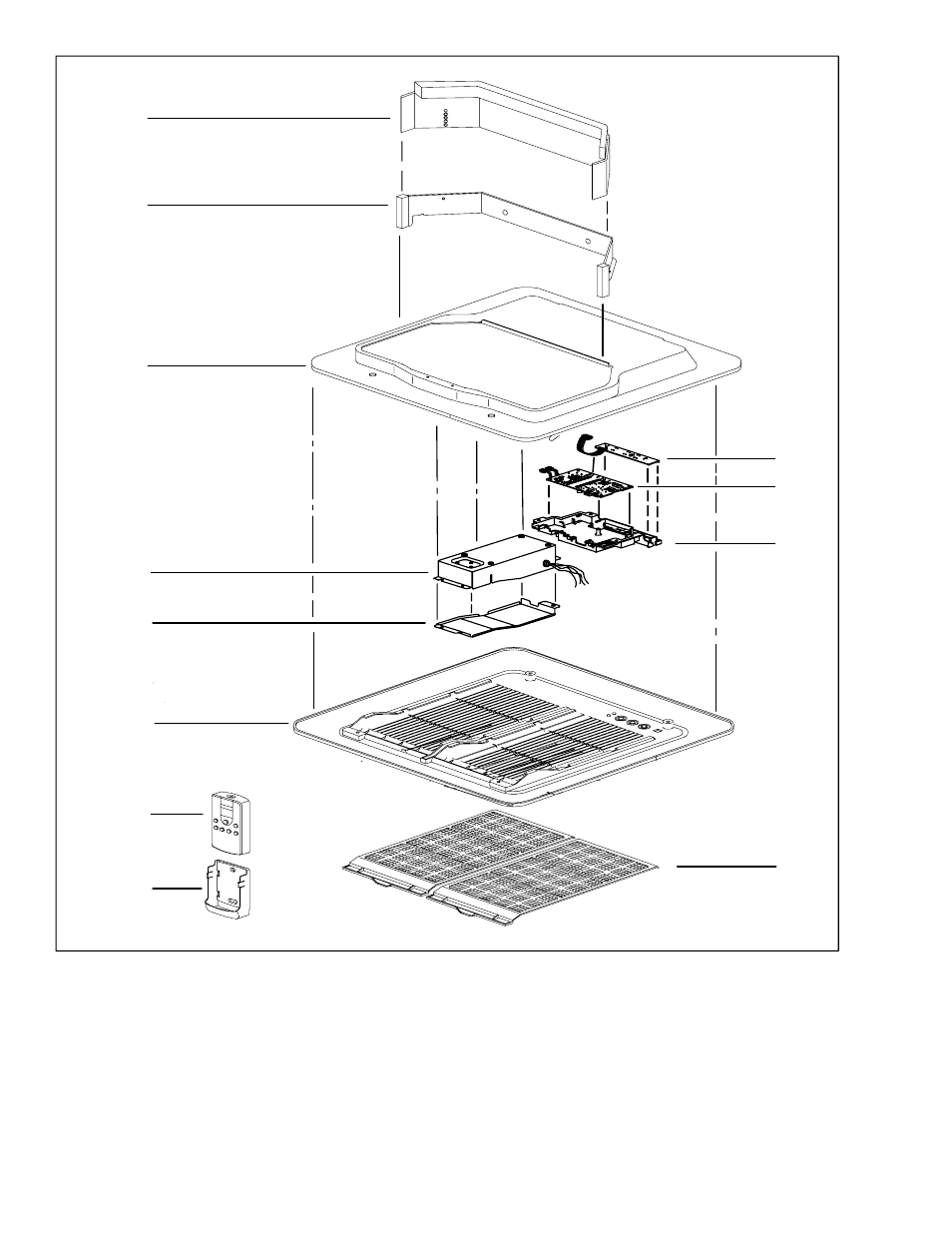

Figure 1-5 Component Listing--Ceiling Unit For Ducted Systems
