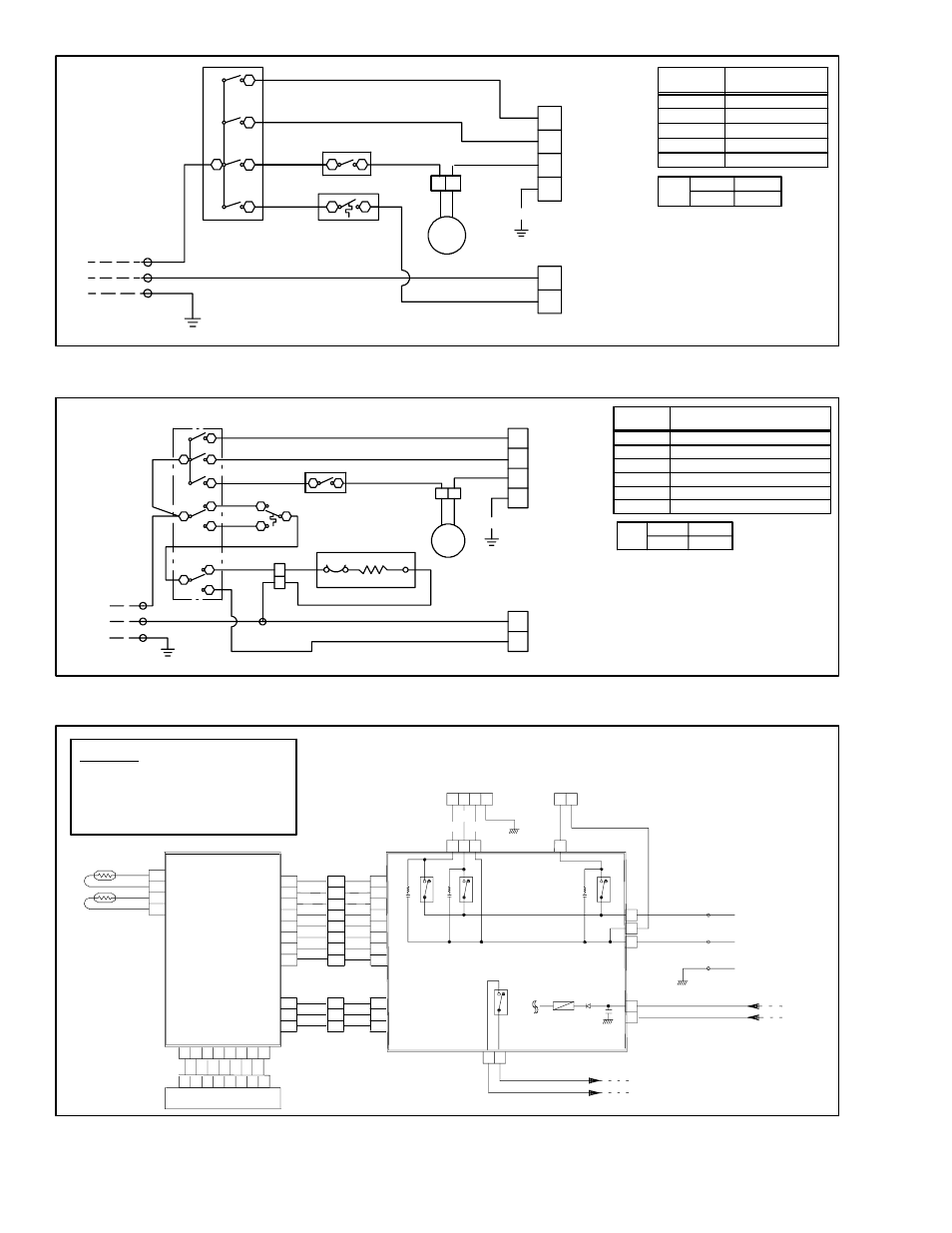

Legend, T 4-2, Figure 4 ceiling unit schematic -- cooling only – Carrier T--298 User Manual

Page 44: Figure 4 ceiling unit schematic -- heat/cool, Control pcb ass’y, Figure 4 ceiling unit, standard -- ducted, 4p 2p, Sw it asw

Legend, T 4-2, Figure 4 ceiling unit schematic -- cooling only | Figure 4 ceiling unit schematic -- heat/cool, Control pcb ass’y, Figure 4 ceiling unit, standard -- ducted, 4p 2p, Sw it asw | Carrier T--298 User Manual | Page 44 / 49 Legend, T 4-2, Figure 4 ceiling unit schematic -- cooling only | Figure 4 ceiling unit schematic -- heat/cool, Control pcb ass’y, Figure 4 ceiling unit, standard -- ducted, 4p 2p, Sw it asw | Carrier T--298 User Manual | Page 44 / 49
