Compaq EP Series User Manual
Page 99
Compaq Despro EP Series of Personal Computers
5-3

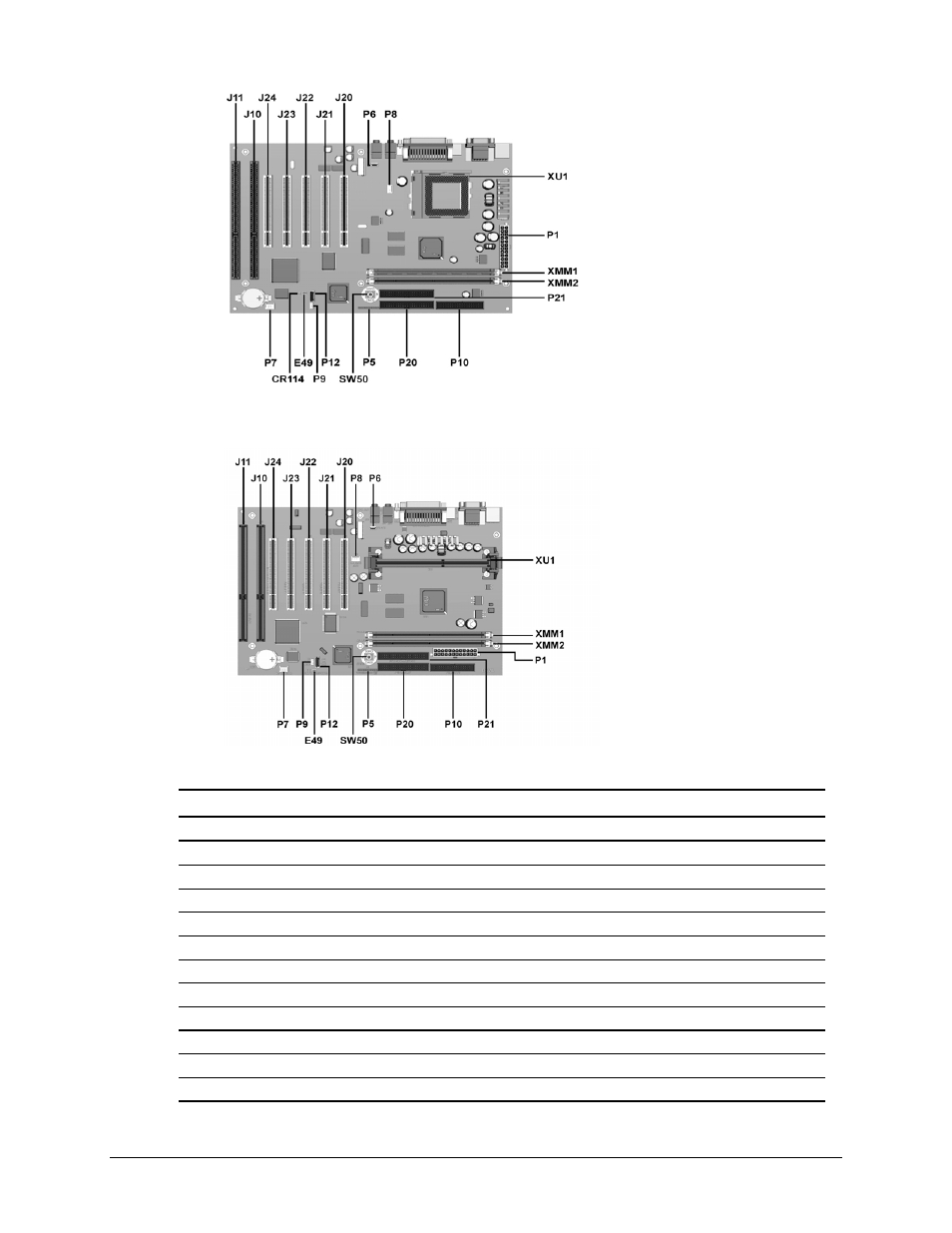

System Board Overview - Intel 810 (Two-DIMM Board)
System Board Overview - Intel 810e (Two-DIMM Board)
Connectors, Jumpers, and Switches - Intel 810/810e (Two-DIMM Board)
Item
Description
Item Description
CR114 AUX LED
P1
Power Supply Connector
E49
Clear Password
P5
Power Switch and LED Connector
XMM1 DIMM 1 Expansion Slot
P6
Chassis Fan
XMM2 DIMM 2 Expansion Slot
P7
CD-In Header
J10
ISA Dual Expansion Slot 1 (combo)
P8
Chassis Fan Connector
J11
ISA Expansion Slot 2
P9
Wake on LAN Header
J20
PCI Expansion Slot 1
P10
Diskette Drive Connector
J21
PCI Expansion Slot 2
P20
IDE Connector (primary)
J22
PCI Expansion Slot 3
P21
IDE Connector (secondary)
J23
PCI Expansion Slot 4
XU1
Processor Connector
J24
PCI Dual Expansion Slot 5 (combo)
SW50 CMOS Button
