Compaq Despro EP Series of Personal Computers 5-1
chapter 5
C
ONNECTORS
, J
UMPERS
,
AND
S
WITCHES
5.1 System Board
5.1.1 Connectors, Jumpers, and Switches

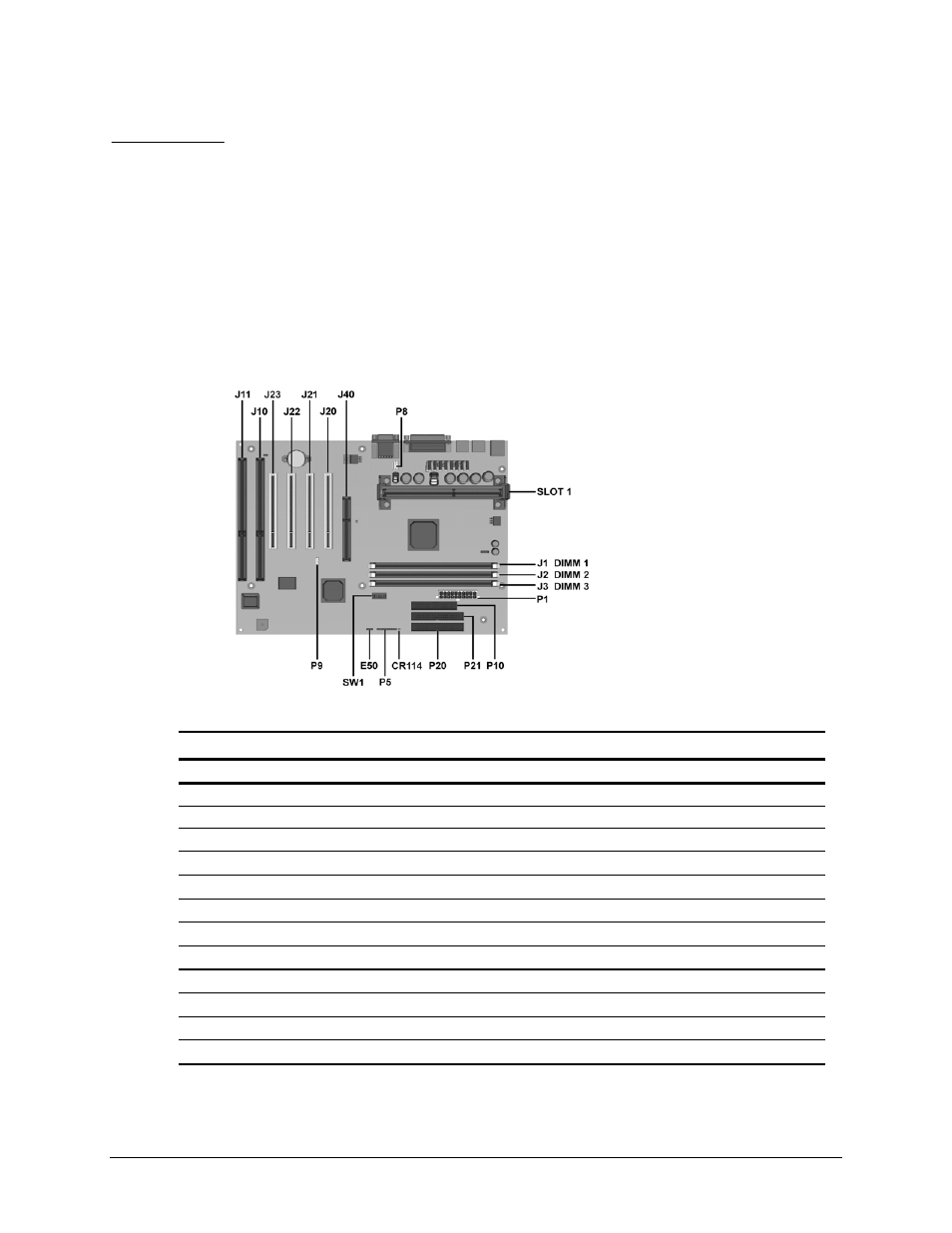

System Board Overview - 440BX (Three-DIMM Board)
Connectors, Jumpers, and Switches - 440BX (Three-DIMM Board)
Item Description Item Description
CR114 AUX LED P1 Power Supply Connector
E50 CMOS Header P5 Power Switch and LED Connector
J1 DIMM 1 Expansion Slot P8 Chassis Fan Connector
J2 DIMM 2 Expansion Slot P9 Wake on LAN Header
J3 DIMM 3 Expansion Slot P10 Diskette Drive Connector
J10 PCI/ISA Dual Expansion Slot (combo) P20 IDE Connector (primary)
J11 ISA Expansion Slot P21 IDE Connector (secondary)
J20 PCI Expansion Slot P24 Not used
J21 PCI Expansion Slot P55 Not Used
J22 PCI Expansion Slot Slot 1 Processor Connector
J23 PCI Dual Expansion Slot (combo) SW1 Processor Speed and Feature Switch
J40 AGP Video Graphics Slot
