Use the Radar Control window to change your radar settings for fine-tuning.

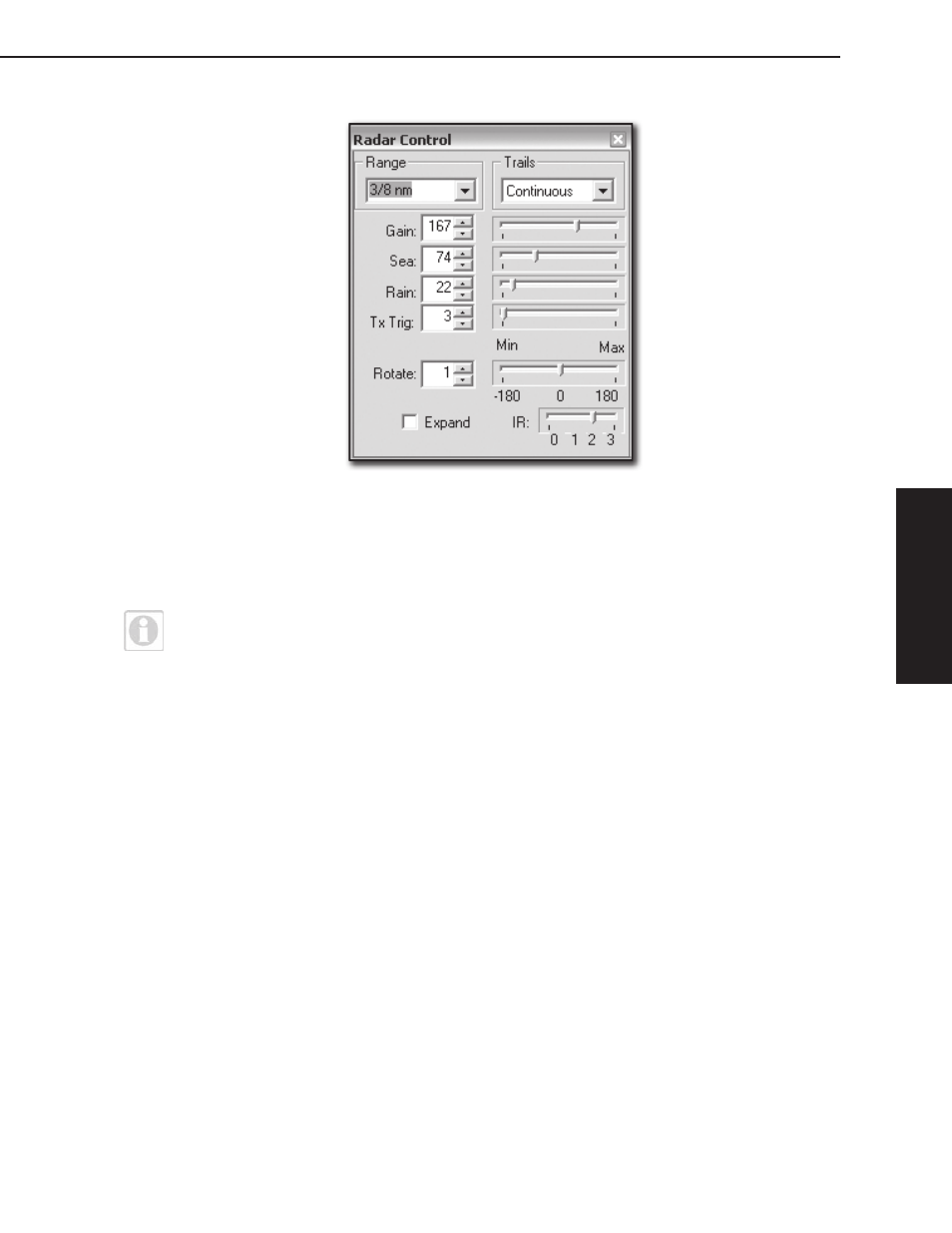

Figure 2.23 - Radar Control Window
It may take a few minutes for any changes you make to be applied to the Radar
Viewer for verification. Continue making small adjustments until you are satisfied
with the radar output.
NOTE:
Changes made to IR2-BB connections occasionally do not accurately
display in the Radar Viewer. If you find that this is the case for your
configuration, make radar adjustments to the full-size radar window pane
within Jeppesen Workboat Navigator.
Once you are satisfied with how the radar image appears, click Next.
Radar Setup Wizard has now completed. Click Finish to exit the Radar Setup
Wizard.
10.
11.
12.
