The Radar Setup Wizard will search available serial, USB, and Ethernet ports on
your computer for incoming information, including GPS and heading sensor data
(Figure 2.21).

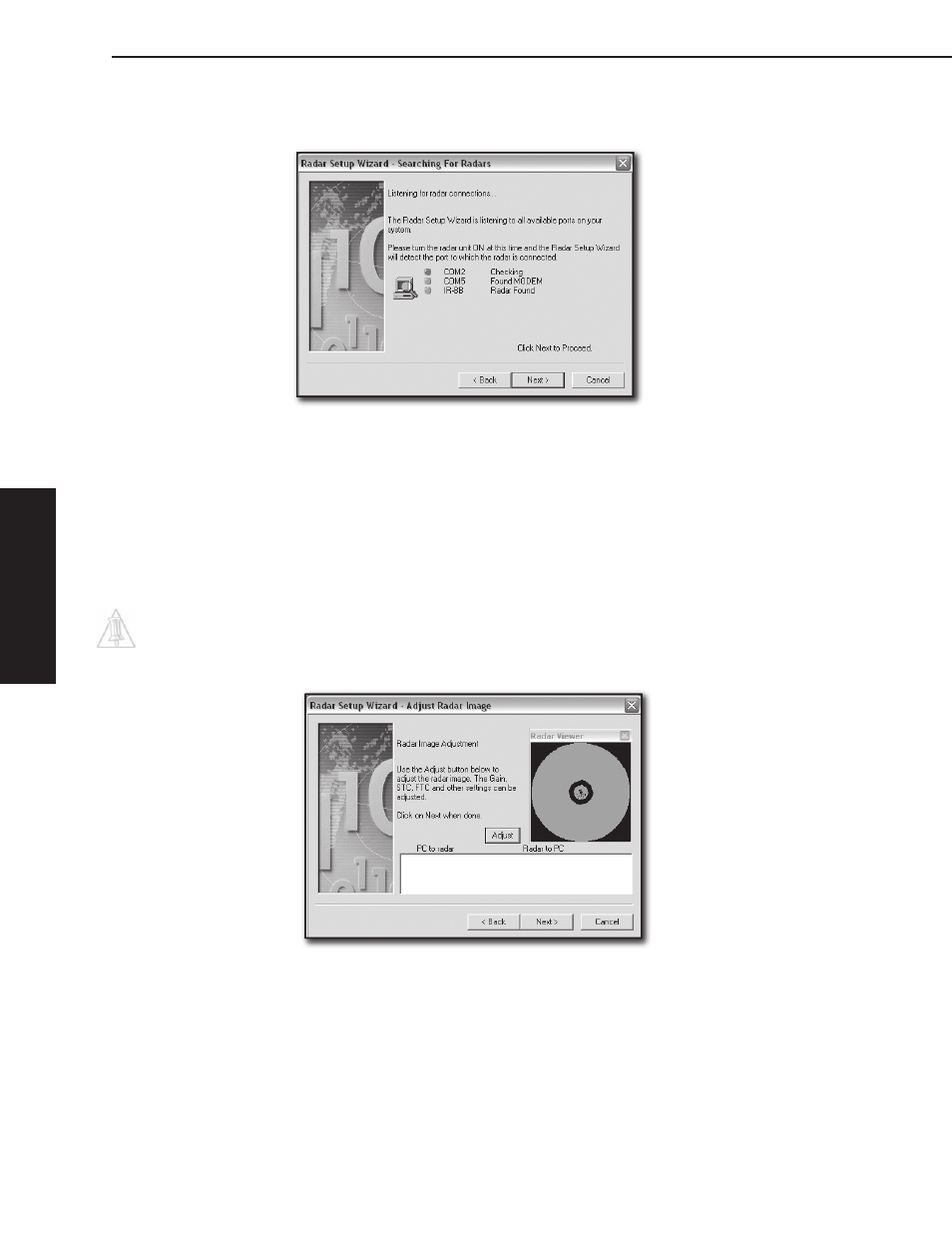

Figure 2.21 - Searching for Radars
If a device is not detected by the Radar Setup Wizard, confirm all cable
connections and that there is power to each device. Click Back and then Next
to attempt to detect that device a second time.
When the IR2-BB is detected, click Next.
Once the radar is warmed up and transmitting data through the IR2-BB, the
Radar Setup Wizard will display a small view of radar output in the window
labeled Radar Viewer (Figure 2.22).
TIP:
It's possible you will need to turn the power to your radar on and off in
order for the Radar Viewer image to appear. Additionally, you may need to
wait up to 30 seconds for the radar to warm up and the Radar Setup Wizard
to process the radar feed.
Figure 2.22 - Radar Viewer
Click Adjust to open the Radar Control window.
