E184020

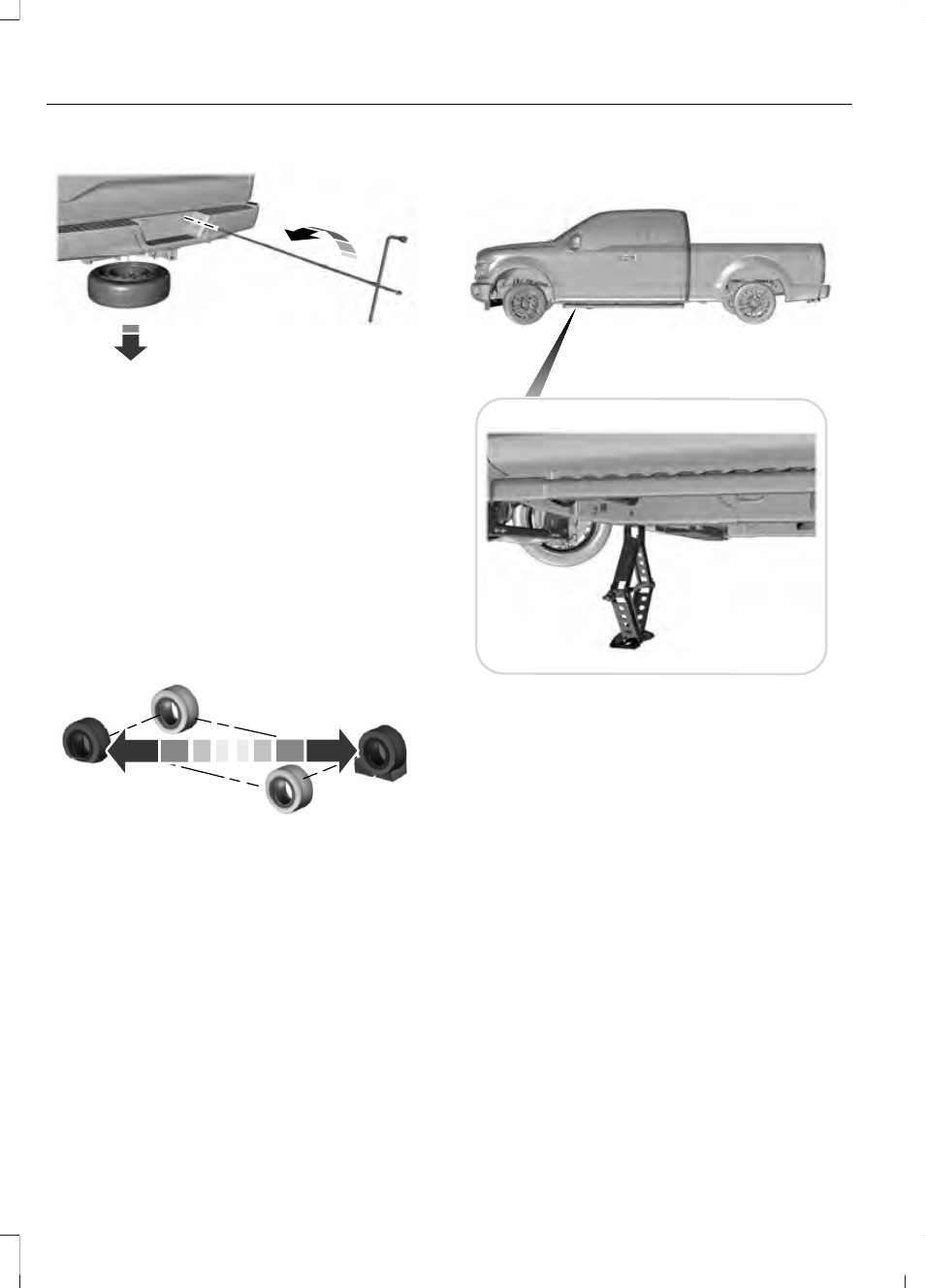

2. Fully insert the jack handle through the
bumper hole and into the guide tube
through the access hole in the rear
bumper.
3. Turn the handle counterclockwise until
the tire is lowered to the ground, the
tire can be slid rearward and the cable
is slightly slack.
4. Remove the retainer from the center
of the wheel.
E175447
5. Block both the front and rear of the
wheel diagonally opposite the flat tire.
For example, if the left front tire is flat,
block the right rear wheel.
6. Obtain the spare tire and jack from
their storage locations.
7. Loosen each wheel lug nut on the
affected flat tire one-half turn
counterclockwise, but do not remove
them.
Jacking the Vehicle
Front Jacking Points
E183709
Note: Use the frame rail as the jacking
location point, not the control arm. The
frame rail is marked with an arrow.
354
F-150 (), enUSA, First Printing
Wheels and Tires
