FORD 2015 F-150 - Manual (Page 317)

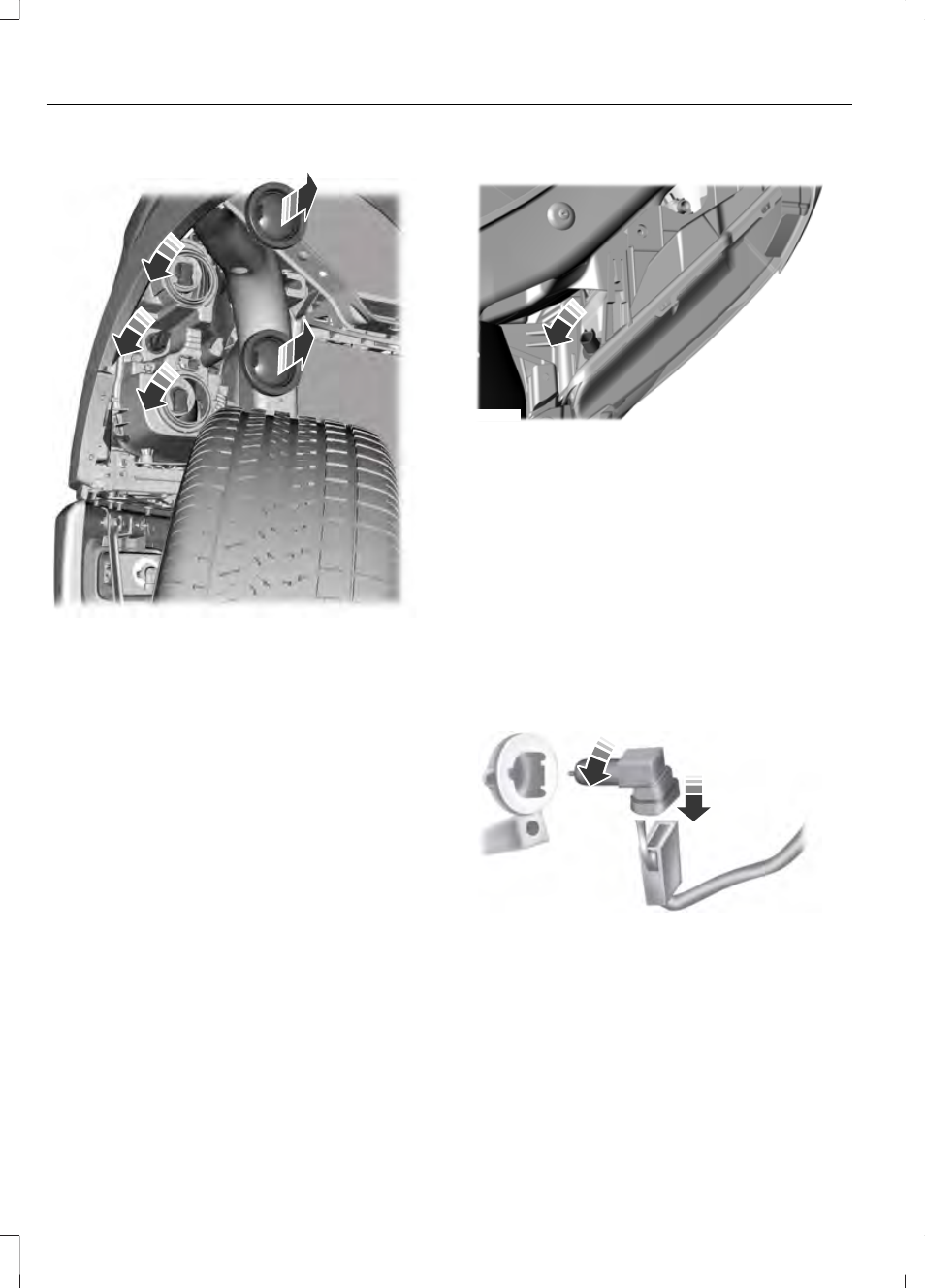

E183763
1. Make sure the headlamps are off.
2. For the high beam and low beam bulbs,
remove the rubber cap to access the
bulbs.
3. Remove the bulb holder from the lamp
assembly by turning it
counterclockwise and pulling it straight
out.
4. Disconnect the bulb from the electrical
connector.
5. Install the new bulb in reverse order.
Replacing Side Marker Bulb
E183764
1. Make sure the headlamps are off.
2. With the hood open, locate the side
marker on the top of the headlamp
assembly.
3. Remove the bulb holder from the lamp
assembly by turning it
counterclockwise and pulling it straight
out.
4. Install the new bulb in reverse order.
Replacing Fog Lamp Bulbs
(If Equipped)
E163826
1. Make sure the fog lamps are off.
2. Disconnect the electrical connector
from the fog lamp bulb.
3. Turn the bulb counterclockwise and
remove it from the fog lamp.
4. Install the new bulb in reverse order.
314
F-150 (), enUSA, First Printing
Maintenance
