Replacing LED Headlamp Bulbs

(If

Equipped)

These lamps have LED bulbs. Contact an
authorized dealer.

Replacing LED Direction Indicator
and Side Marker Bulbs

(If Equipped)

These lamps have LED bulbs. Contact an
authorized dealer.

Replacing Brake, Rear, Direction
Indicator and Reverse Lamp Bulbs

1.

Make sure the headlamps are off.

2. Open the tailgate to access the rear

lamp assemblies

E187288

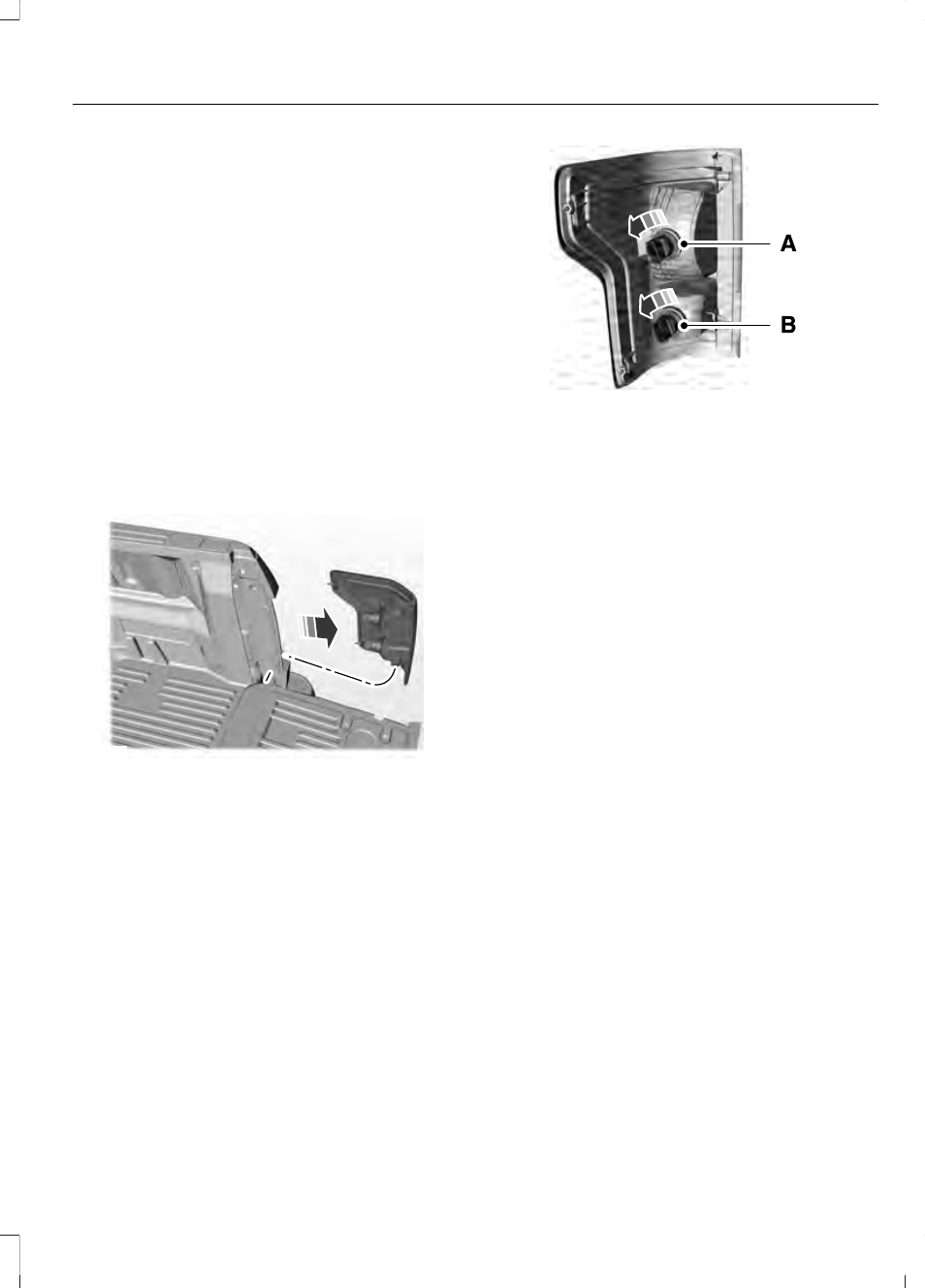

3. Remove the two bolts from the tail

lamp assembly. Then, carefully pull the
lamp assembly from the tailgate pillar
by releasing the two retaining tabs.

4. Disconnect the electrical connector

from the bulb.

E187289

Brake, rear and direction
indicator bulb.

A.

Reverse lamp bulb.

B.

1.

Rotate the bulb socket
counterclockwise and remove it from
the rear lamp assembly.

2. Install the new bulb in reverse order.

Replacing LED Brake, Rear,
Direction Indicator and Reverse
Lamp Bulbs

(If Equipped)

These lamps have LED bulbs. Contact an
authorized dealer.

Replacing Cargo Lamp and High-
mount Brake Lamp Bulbs

1.

Make sure the lamps are off.

2. Remove the four screws and move the

lamp assembly away from the vehicle
to expose the bulb sockets.
