72
Installing System Components
SAS and SAS RAID Controller Daughter Card Cabling Guidelines

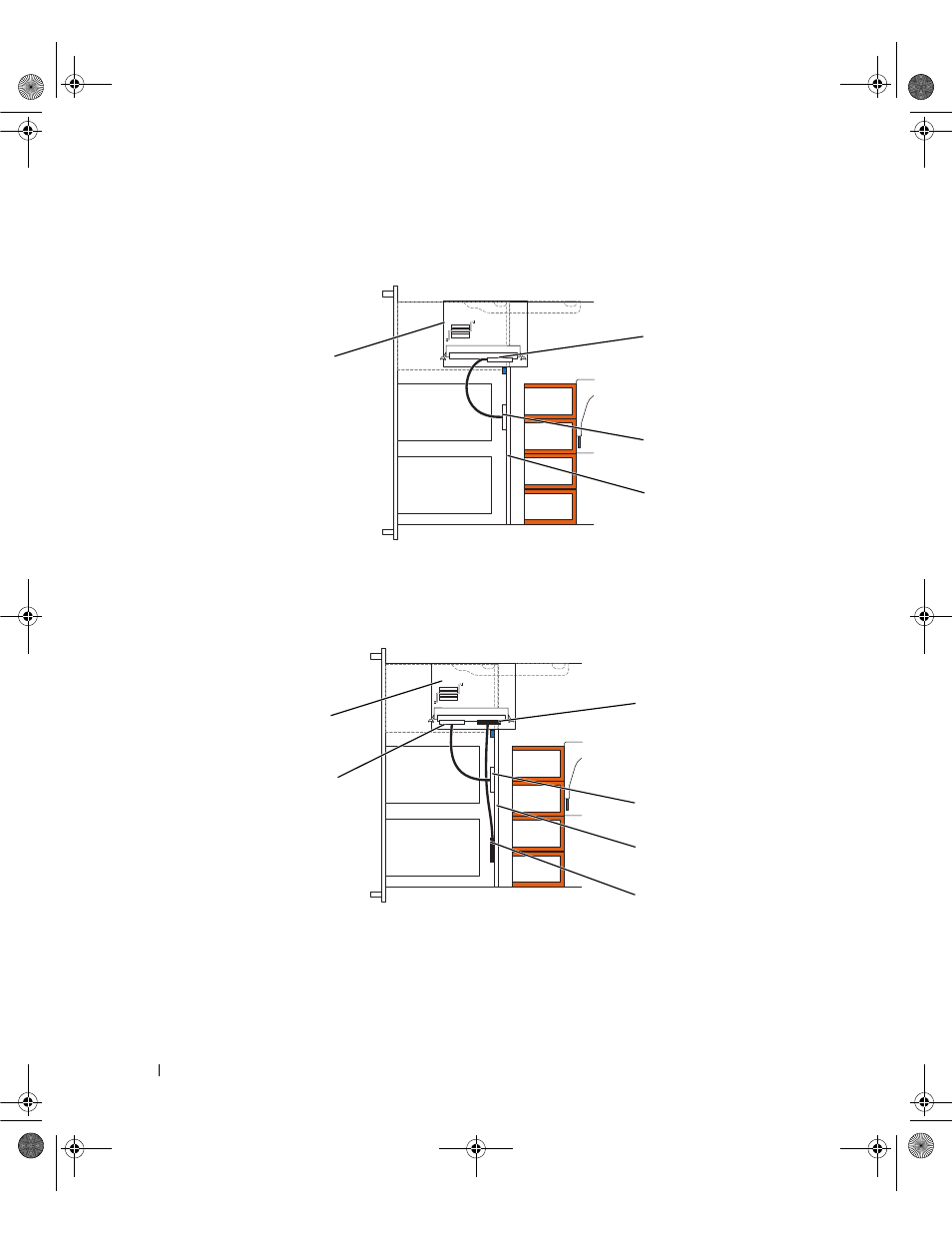

Figure 3-13. SAS Controller Daughter Card Cabling With all Backplanes
Figure 3-14. SAS RAID Controller Daughter Card Cabling With 3.5-inch x6 Backplane
1 SAS controller daughter card 2 SAS controller 0 3 SAS backplane A
4 backplane
1 SAS controller 0 2 SAS RAID controller daughter
card 3 SAS controller 1
4 SAS backplane A 5 3.5-inch x6 backplane 6 SAS backplane B
1
4
3
2
2
5
4
3
1
6
