Jumpers and Connectors
139
SAS Backplane Board Connectors
Figure 6-3, Figure 6-4, and Figure 6-5 show the location of the connectors on the three SAS backplane board
options.

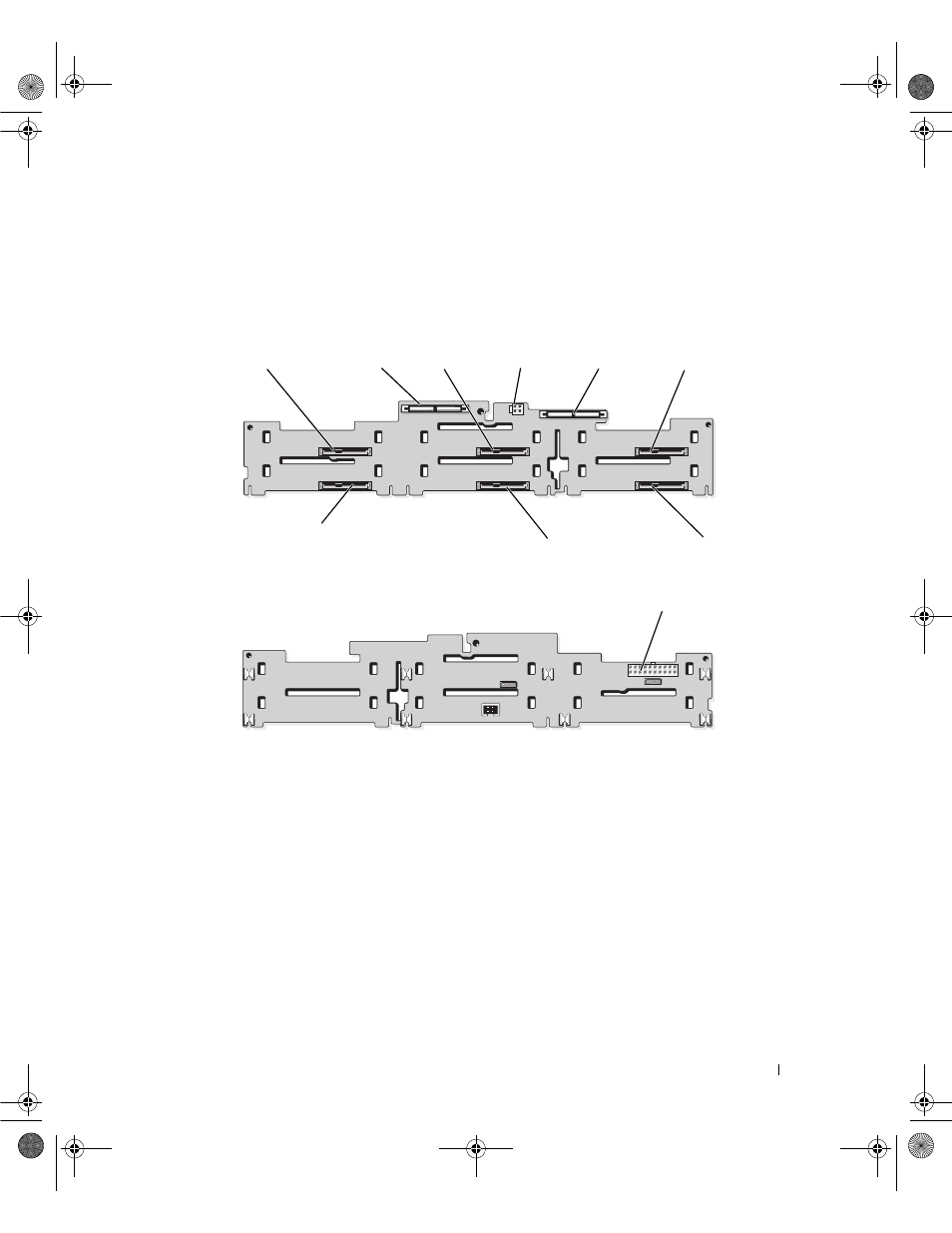

Figure 6-3. SAS Backplane Board Components: 3.5-inch x6 Option
3
9
7
6
front
back
8
4 2 1
10
5
1 drive 0 (SASDRV0) 2 primary SAS (SAS_A) 3 drive 2 (SASDRV2)
4 optical drive power (CD_PWR) 5 secondary SAS (SAS_B) 6 drive 4 (SASDRV4)
7 drive 5 (SASDRV5) 8 drive 3 (SASDRV3) 9 drive 1 (SASDRV1)
10 backplane power (BP_PWR)
