Installing System Components

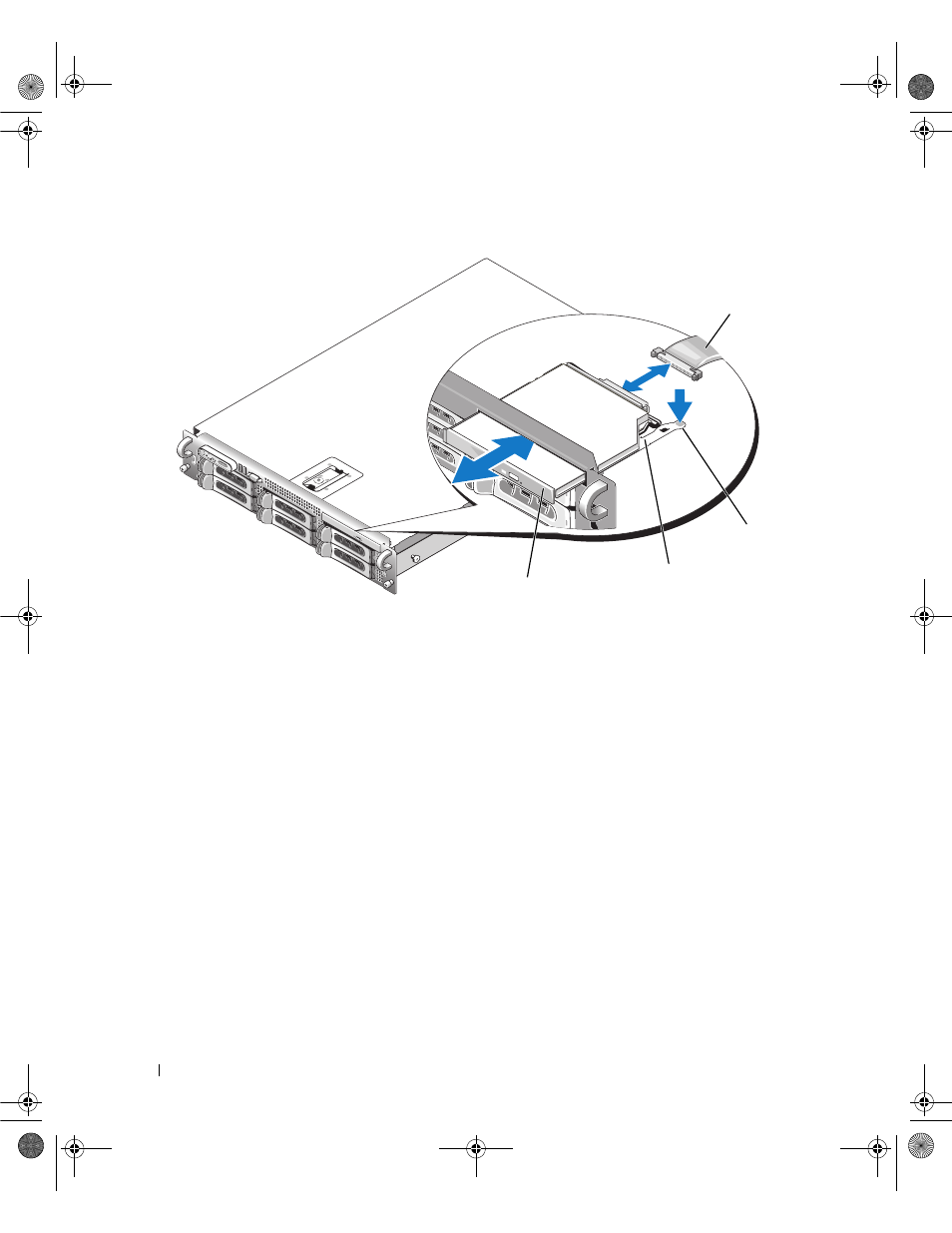

Figure 3-21. Removing and Installing the Optical Drive Tray
Installing the Optical Drive
1 Align the optical drive tray with its opening in the front panel.
The optical drive opening is above the hard-drive slots on the far right, or the flex bay, depending on
your system’s drive configuration (the hard-drives slots are identified by labels on the front panel of the
system).
2 Slide in the drive tray until the tray snaps into place. See Figure 3-21.
3 Connect the optical drive cable to the connector on the back of the drive.
4 Close the system. See "Closing the System" on page 55.
5 Replace the bezel. See "Replacing the Front Bezel" on page 54.
6 Reconnect your system and peripherals to their electrical outlets, and turn on the system.
1 optical-drive cable 2 optical-drive release tab 3 optical -drive tray
4 optical drive
