5

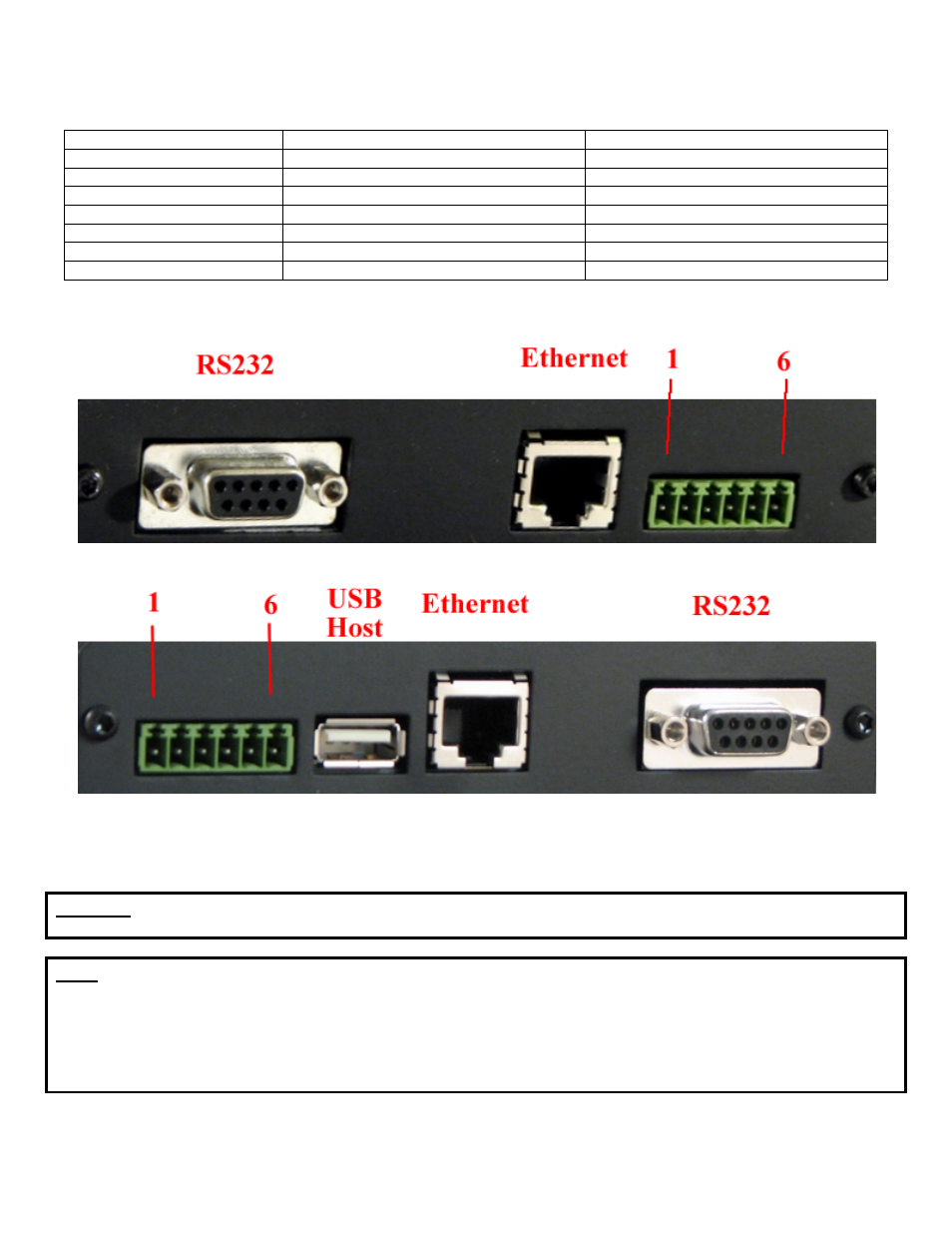

Terminal Block Pin JP1 & JP2 (internal) Center to Right JP1 & JP2 (internal) Center to Left
Pin 1 Din – Discrete Input (See Appendix A)
Pin 2 Din Src – Discrete Input Source RxD of auxiliary serial port
Pin 3 Dout Gnd – Discrete Output Ground Ground of auxiliary serial port
Pin 4 Dout - Discrete Output TxD of auxiliary serial port
Pin 5 Power supply Ground Power supply Ground
Pin 6 Power supply +12VDC Power supply +12VDC
Figure 3 – Z4300S Model
Figure 4 – Z4300U Model
3 Start Up
Warning – You must connect antenna(s) to the SMA style antenna connectors on the router before turning it on.
Failure to do this could result in erratic start up behavior and could possibly damage the unit.
Note – Z Series routers ship from the factory with DHCP server enabled. The Default Gateway address for the
unit is 192.168.1.10. The address of the web based administration is also 192.168.1.10. After you have activated
your unit on the wireless network it WILL NOT have a DNS address, meaning that public Internet web access will
not work. To load DNS values go to the Ethernet Interface screen, select “Acquire From Wireless Network” and
press the update button. At this point the Primary and Secondary DNS addresses in the Ethernet Interface screen
will be populated with the DNS addresses provided by your wireless network. As a last step restart both the
router and the connected PC.
