CTEK Z4300U SkyRouter - Manual (Page 6)

22 September 2009
3
2 Connectors, Lights, Switches, and Jumpers
2.1 Switches
Referring to Figure 1, there are two switches on the front of the Z Series router. S1 (Reset) causes a hard reset of unit.
S2 (DFLT) is used to completely restore the firmware settings that were included when the product was shipped from the
factory. To restore factory defaults, the unit must be running. Press the Restore Defaults (inner) switch and hold it down
for 10 seconds. After 10 seconds, you will see both the green and yellow lights go off. At that time you may either press
the reset (outer) switch or cycle power on the unit.

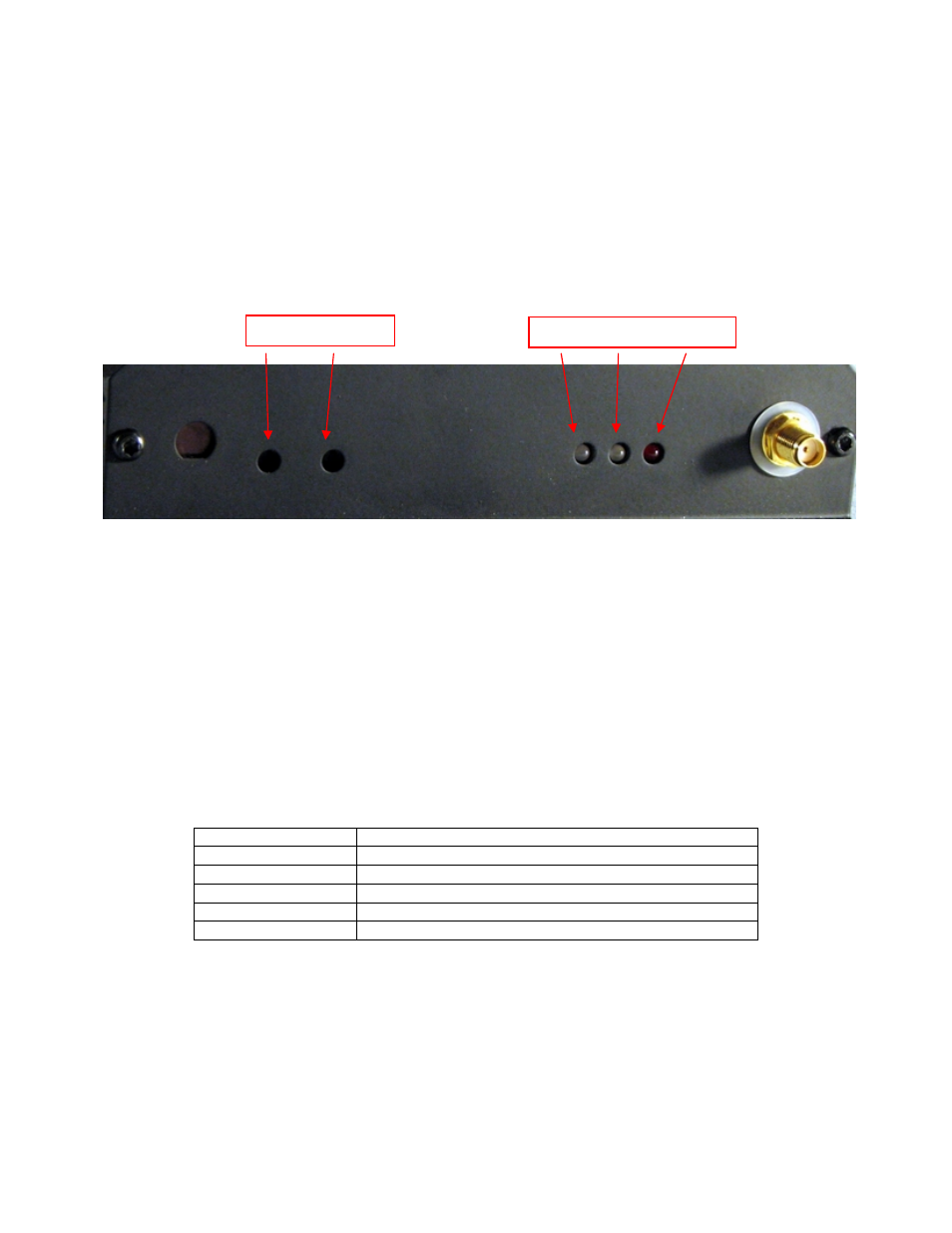

Figure 1
2.2 Lights
The Z Series router has indicators as shown in Figure 1.
LAN – The LAN light indicates that the Ethernet port is connected to an active Ethernet device.
The network status indicators LINK and SVC are interpreted as follows:
SVC – Multi-color (yellow/green). Indicates:
a) Power
b) RSSI
Display Definition
Off No Power
Yellow Blinking Power On – No Signal (RSSI)
Yellow Solid Power On – RSSI < -88
Green Solid Power On – RSSI >= -88
LINK SERVICE LAN Reset Default
