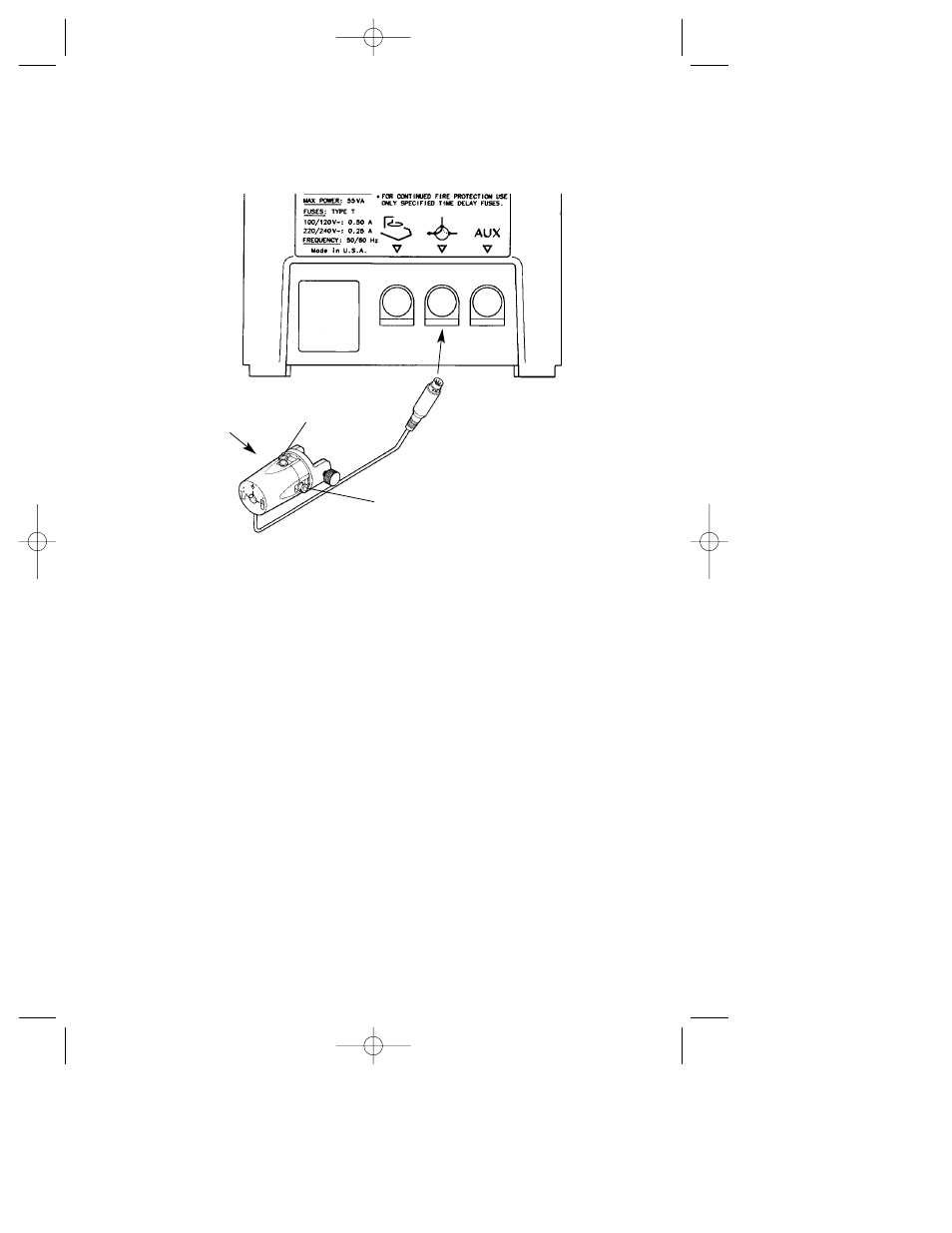

Fig. 7.1. Connection of the Model SV-3 Diverter Valve.
7.2 Use of the Econo Pump with the Model 2128
Fraction Collector
The Econo Pump is capable of controlling the Model 2128 Fraction
Collector. The pump must be calibrated in order to run a fraction collector
program. See Section 6 for calibration instructions.
Use System Cable 15 (catalog number 731-8286) to connect the Econo
Pump to the Model 2128 Collector. If the SV-3 diverter valve is used,
connect it as shown in Figure 7.1. If the Model 2128 Diverter Valve is used,
connect one end of System Cable 3 to the diverter valve port on the Econo
Pump, and connect the other end to the mini-DIN port on the Model 2128
Fraction Collector. This cable transmits flow diversion information from
the Econo Pump to the collector. Program collection as demonstrated in
Section 7.1. For more information about the Model 2128 Fraction
Collector, consult the user manual.
Outlet to Collector
Outlet to Waste
Inlet
