CONTINUOUS DRIVE UNIT CONNECTIONS

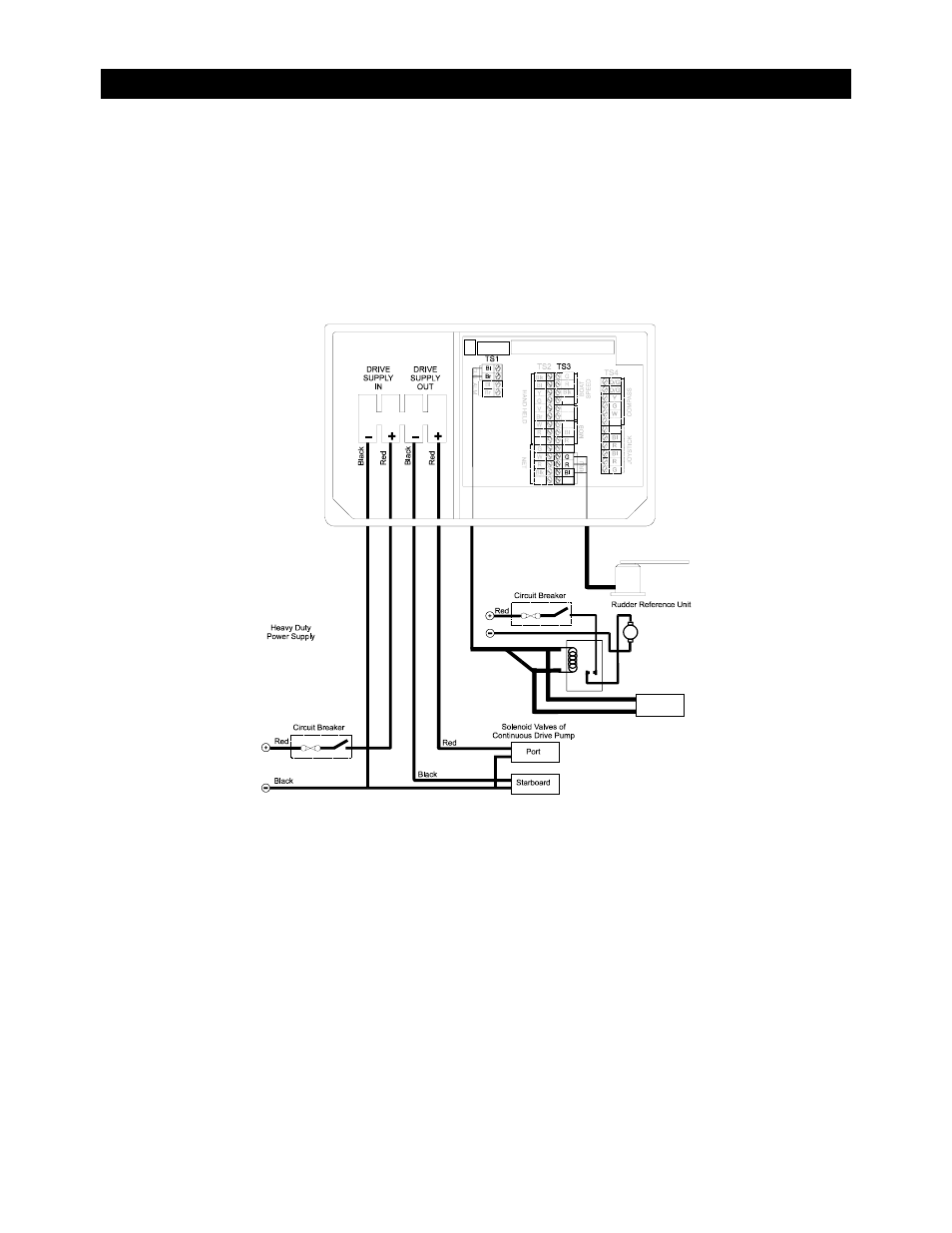

These are general wiring instructions only, showing the installation of
the Computer Unit outputs to drive the continuous drive pump solenoid
valves. The continuous drive pump motor will also require a heavy duty
supply, this is not supplied however suitable units can be obtained from
your dealer. Clutch output is used to control the motor supply.
NOTE: The ram solenoid must be designed to operate at the same
voltage as the pump.
RAM
SOLENOID
Note:
Heavy Duty Relay
Not Supplied
Blue
Brown
Continuous
Running Pump
Relay
NOT
USED
Black
