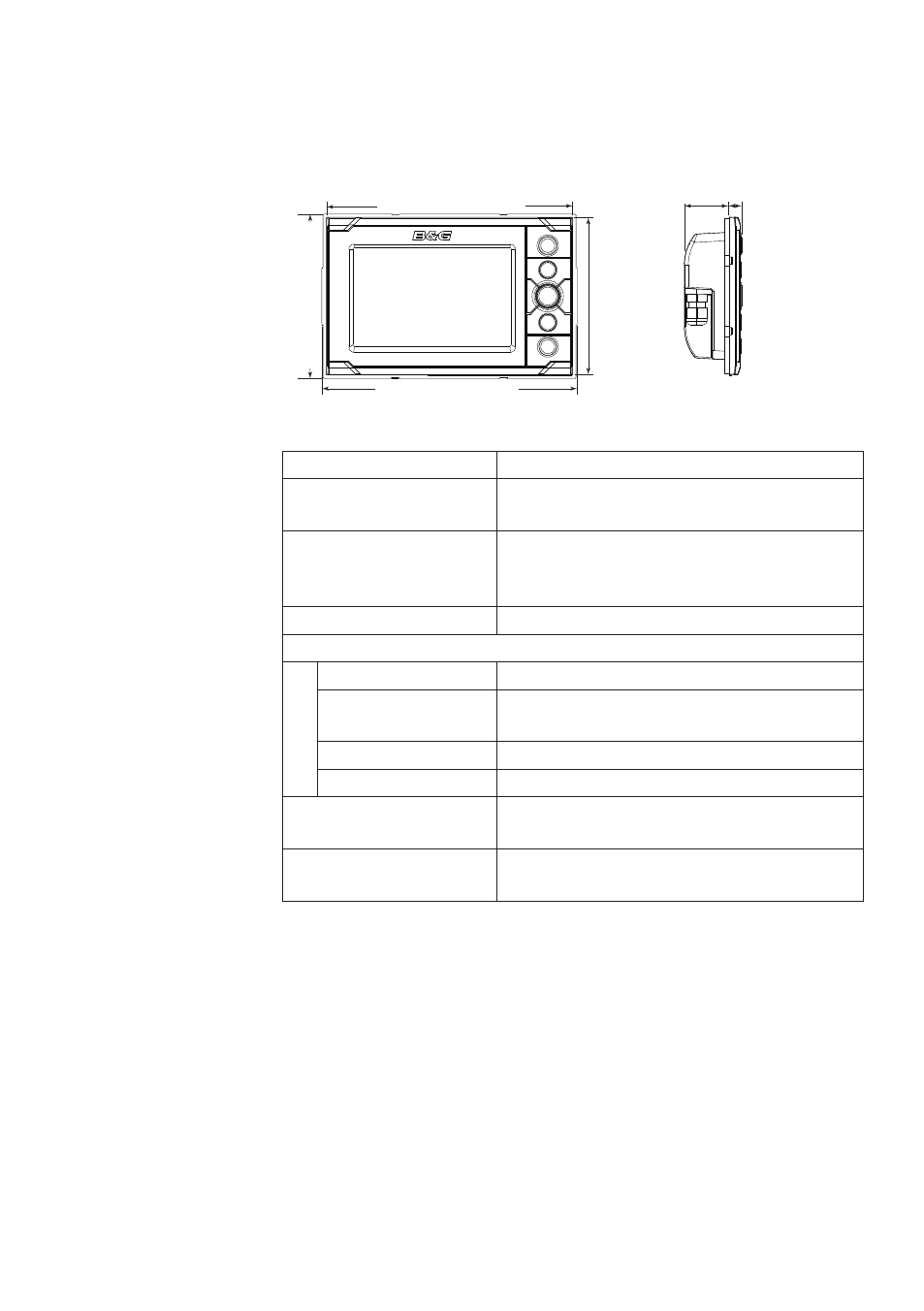

Technical drawings & specifi cations | H5000 Installation
Race display
178.0 mm (7.01")
32.0 mm (1.26")10.0 mm (0.39") Product Outline
Product Outline
Sun Cover Outline
Sun Cover Outline
114.0 mm (4.49") 119.0 mm (4.69")
184.5 mm (7.26")
Weight 0.45 kg (1 lbs)
Supply voltage 12 V DC Nominal (9-16 V) Network pow-
ered
Power consumption
0.6 Watt (50 mA @ 12 V) Typical
1.0 Watts (86 mA @ 12 V) Max.
(NMEA 2000® equivalent 2 LEN)
Color Black
Display
Size 5” (Diagonal)
Type
Transfl ective - 7 segment LCD
White & Red LED back-light
Color Monochrome
Resolution 7 segment LCD
Environmental
Protection
IPX7
Safe distance to
compass 0.3 m (1.0 ft.)
