| External sensor wiringAnalog Expansion | H5000 Installation

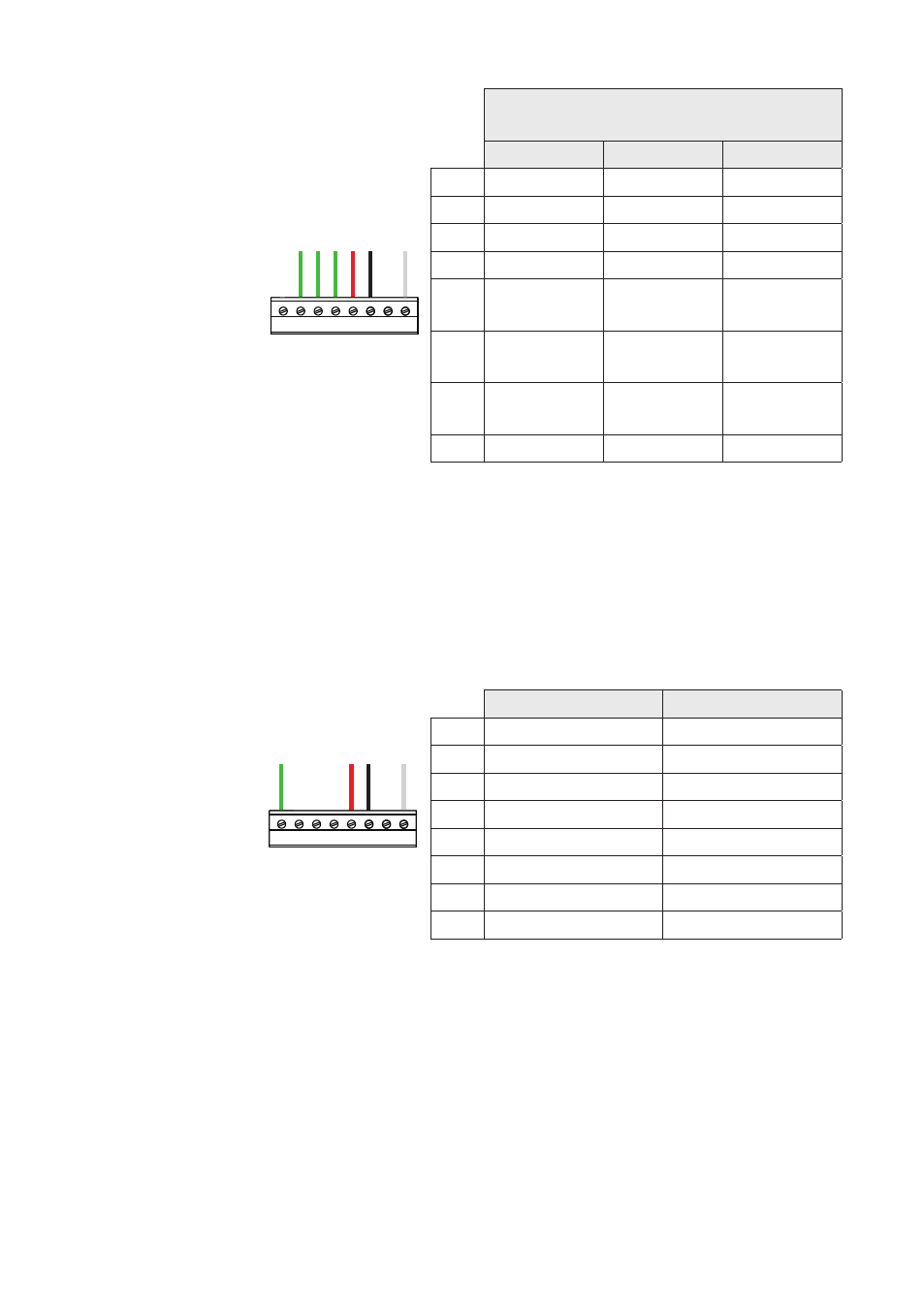

CONNECTOR B
(BOTTOM TERMINALS)
1 2 3 4 5 6 7 8
Color Input Channel
1 - Screen -
2 - - -
3 Black 0 Volts -
4 Red 5 Volts -
5
Sensor
dependent
Signal
0 V to +5 V
Analog 4
6
Sensor
dependent
Signal
0 V to +5 V
Analog 5
7
Sensor
dependent
Signal
0 V to +5 V
Analog 6
8 - - -
 Note:
0 Volt to 5 Volt sensors can be wired into either Connector A
or Connector B. If you plug a 0 - 5 Volt analog input into connector 1
then the analog channels will be 1, 2 & 3, if connected to connector 2
then they will be channels 4, 5 & 6.
Paddle wheel
1 2 3 4 5 6 7 8
Color Input
1 - Screen
2 - -
3 Black 0 Volts
4 Red 5 Volts
5 - -
6 - -
7 - -
8 Green Speed
