43
Autopilot | H5000 Installation

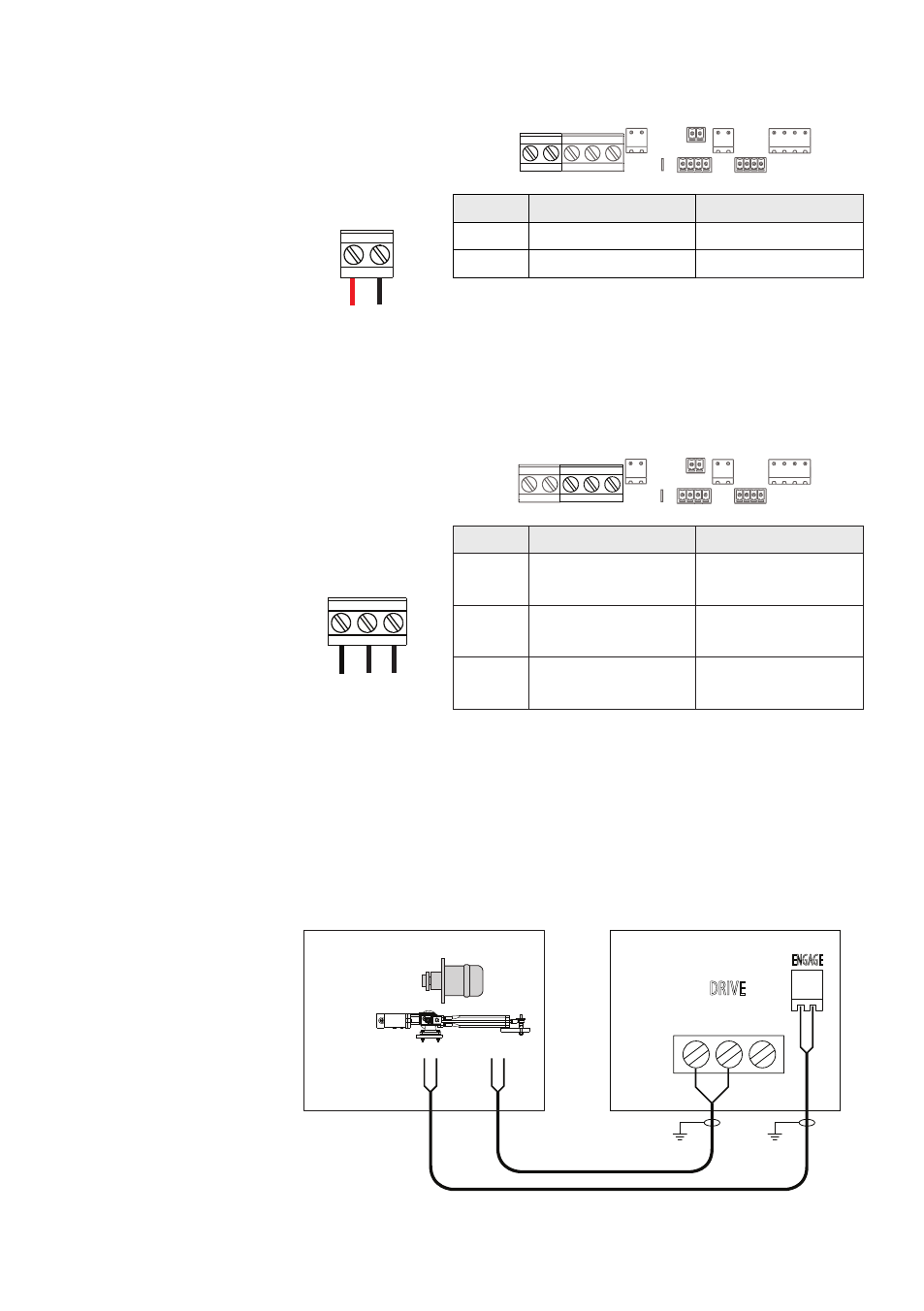

Power
1 2
Direct Color Description
1 Red 12 or 24 Volts
2 Black 0 Volts
 Note:
The power cable is hard wired directly to the supply terminal on
the PCB.
Drive
1 2 3
Direct Color Description
1 Drive Dependant
Motor /
Solenoid 1
2 Drive Dependant
Motor /
Solenoid 2
3 Drive Dependant
Solenoid
ground
 Note:
The drive cable is hard wired directly to the drive terminal on
the PCB.
Reversing drive
Hydraulic drives and rotary drives need connection to the Engage
terminal for clutch operation.
MO
TOR
SOL
-1
MO
TOR
SOL
-2
SOL GND
DRIVE
ENGAGE
CMD RET
H5000 Pilot
Rotary drive
CLUTCH MOTOR
Hydraulic ram
