46
| Autopilot | H5000 Installation

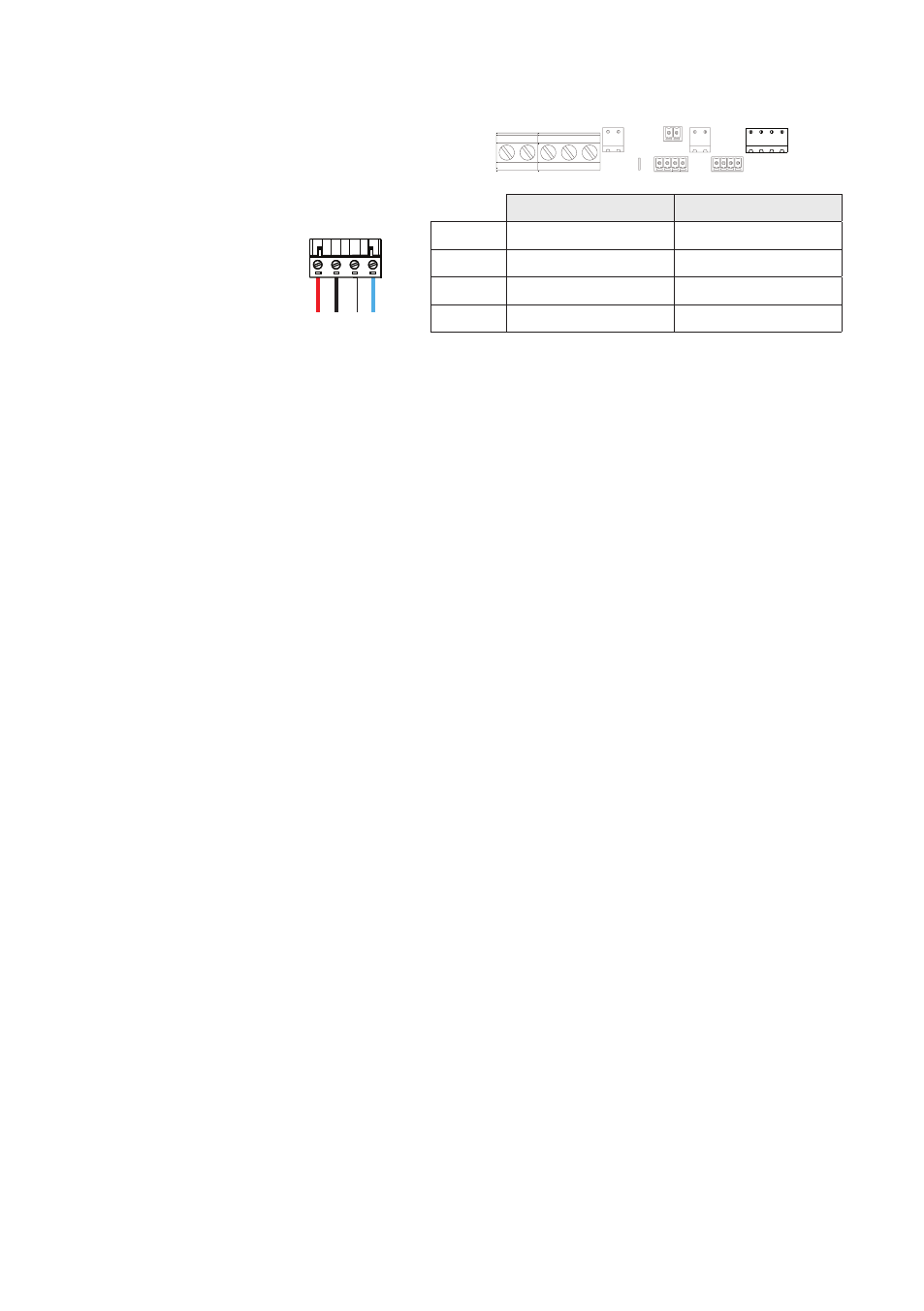

Simnet (Network)
1 2 3 4
Color Description
1 Red 12 Volts
2 Black 0 Volts
3 White Data high +ve
4 Blue Data low -ve
Turning on for the fi rst time
Before attempting to turn on the autopilot and perform an
installation setup, the hardware installation and electrical installation
must be completed and in accordance with the installation
instructions.
The fi rst time the autopilot system is started and after a factory reset,
you will need to follow the setup and commissioning procedures as
described.
 Note:
Some important points regarding the installation settings:
• When the autopilot is delivered from factory and ANY TIME AFTER AN
AUTOPILOT RESET HAS BEEN PERFORMED, the installation settings are
all reset to factory preset (default) values.
• The prompt will appear and a complete setup has to be made.
• The Sea Trial settings are dependent on successful completion of the
Dockside settings.
