System architecture | H5000 Installation

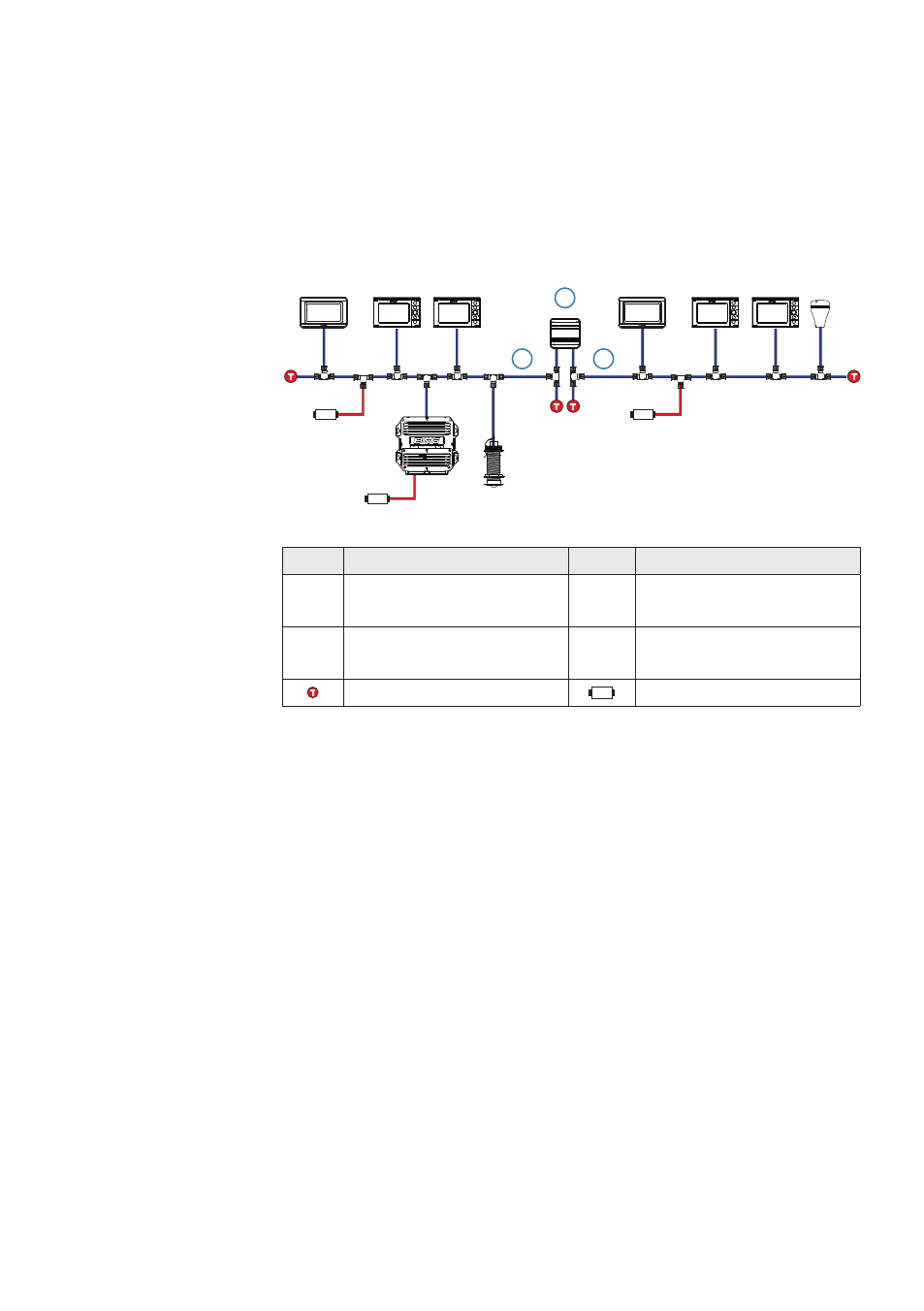

Bridged network
For networks that exceed the recommended network cabling
maximum length a bridged network adaptor can be used.
 Note:
When using a network bridge it is important that both
networks are powered and terminated as per H5000 network
guidelines.
12V
3
1 2
T
T
T
12V 12V
T
PILOT
No. Description No. Description
1
Micro-C CAN bus
backbone 1
3 3rd party network bridge
2
Micro-C CAN bus
backbone 2
T
Micro-C Terminator 12V 12 Volt DC power supply
