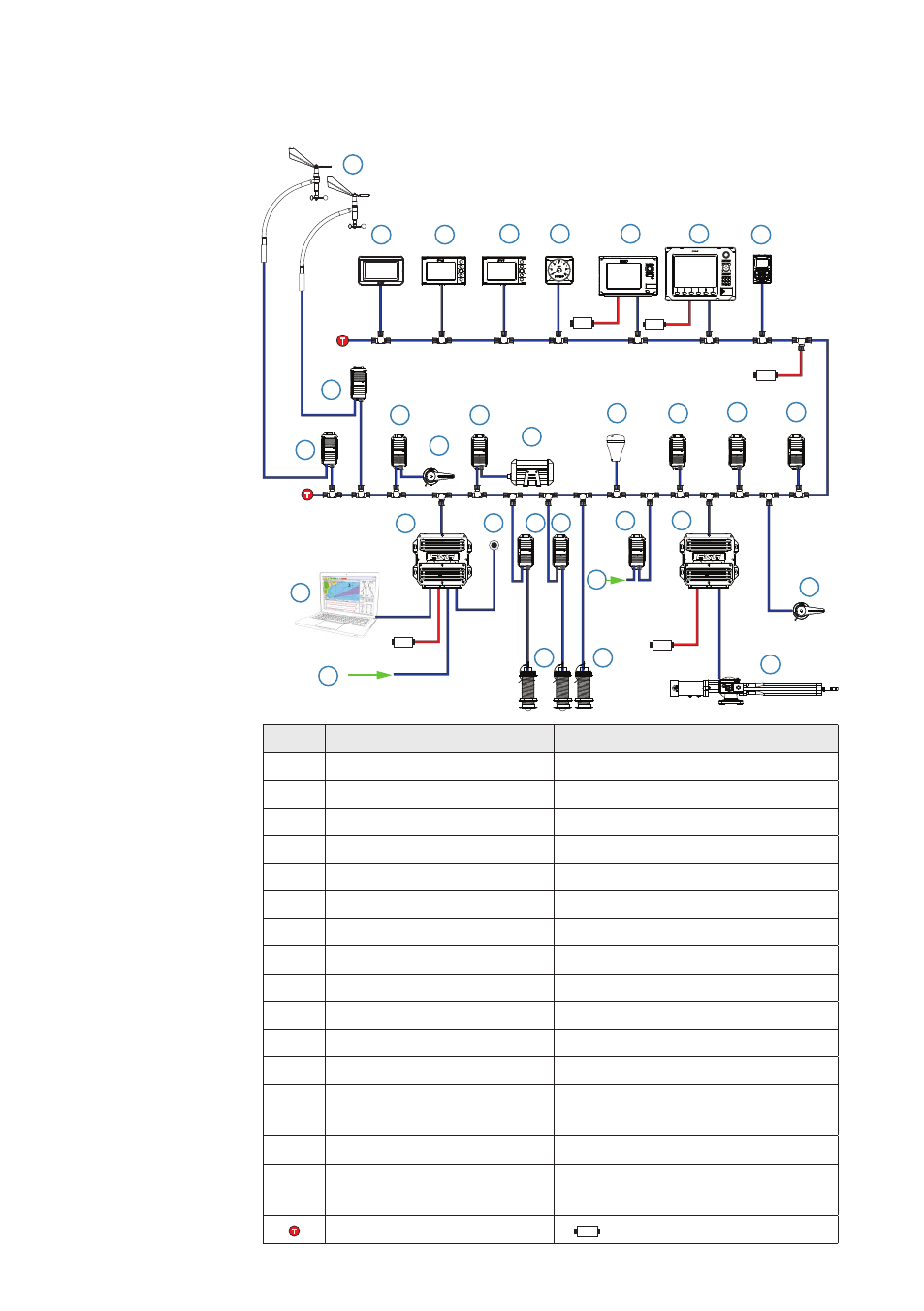

H5000 performance system example
12V
12V
2
3
4
5
6
13
16
17
14
15
1
25
24
T
T
27
28
29
19
20 20
18
23
21
22
7
8
11
12
10
9
9
12V
12V
12V
26
ECHO
RADAR
CHART
NAV
INFO
PAGES
MENU
PLOT
GO TO
MARK
VESSEL
WIN
IN
MOB
ABC
DEF
1
2
3
JKL
GHI
MNO
4
5
6
TUV
PQRS
WXYZ
7
STBY
AUTO
PWR
8
0
9
OUT
No.
Description
No.
Description
1
Fwd & Aft vertical MHU
16
Motion sensor
2
HV Display
17
Alarm module
3
Graphic Display
18
H5000 CPU
4
Race Display
19
Man Overboard Button
5
Analogue display
20
Analog module
6
Zeus Touch
21
Analog module
7
Zeus
22
Analog sensor
8
H5000 Pilot Controller
23
H5000 Pilot Computer
9
Analog module
24
Rudder Feedback Unit
10
Analog module
25
Hydraulic ram
11
Mast rotation sensor
26
Deckman via serial port
12
Serial Expansion Module
27
NMEA 0183 Tx / Rx
13
Halcyon Gyro Stabilized
Compass
28
Port & Starboard speed
sensor
14
GPS
29
Depth sensor
15
Barometric & Air temp
sensor
T
Micro-C Terminator
12V
12 Volt DC power
