26
| H5000 Central Processor Unit - CPU | H5000 Installation

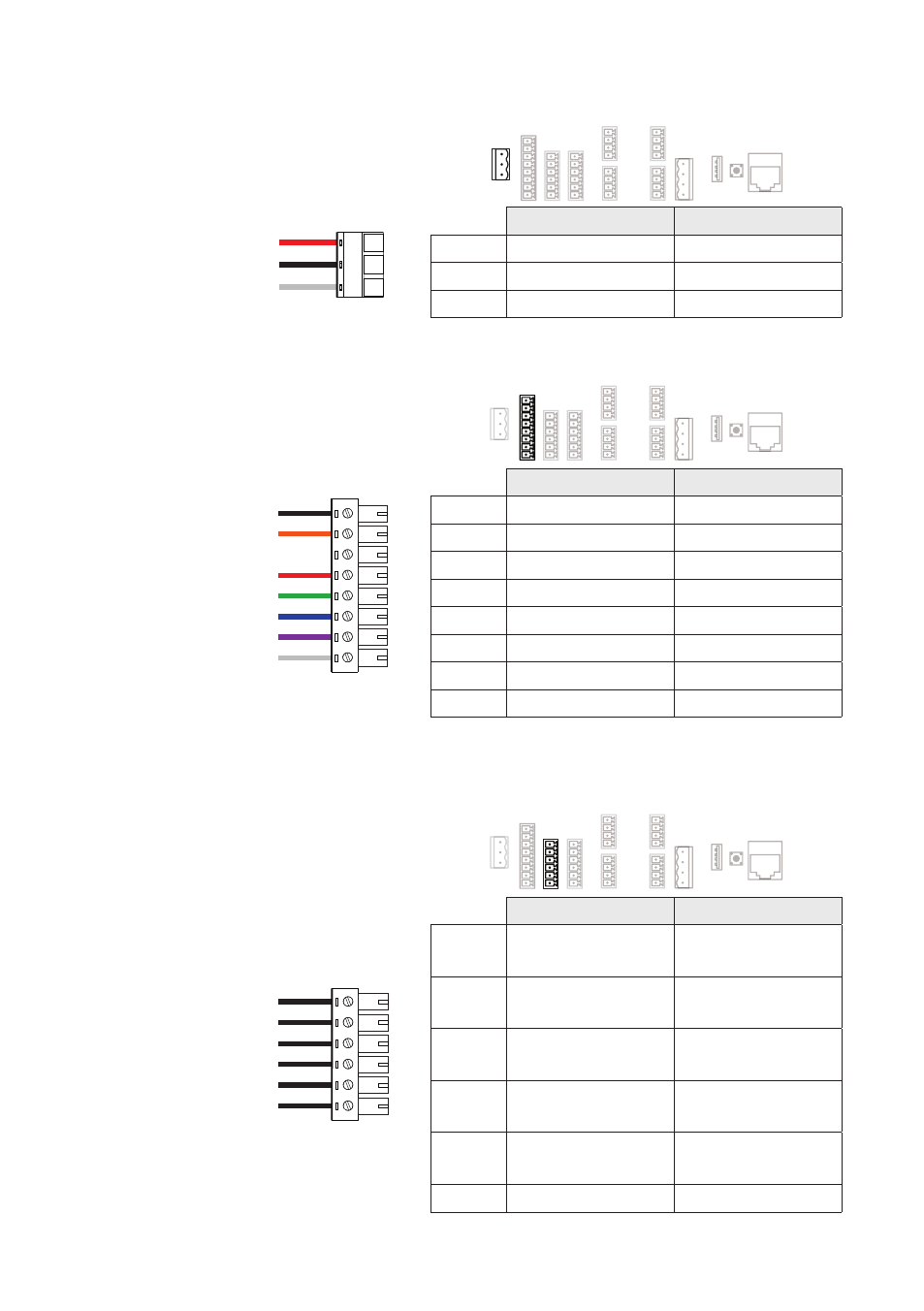

Power supply
1
2
3
Color Description
1 Red 12 Volts
2 Black 0 Volts
3 - Screen
Masthead Unit
1
2
3
4
5
6
7
8
Color Description
1 Black 0 Volts
2 Orange 12 Volts
3 - -
4 Red Wind angle phase
5 Green Wind angle phase
6 Blue Wind angle phase
7 Violet Wind speed
8 - Screen (if present)
Analog input 3 & 4
1
2
3
4
5
6
Color Description
1
Sensor
Dependent
0 Volts
2
Sensor
Dependent
12 Volts
3
Sensor
Dependent
5 Volts
4
Sensor
Dependent
0 - 5 Volts
(Analog 4)
5
Sensor
Dependent
0 - 5 Volts
(Analog 3)
6 - Screen
