H5000 Central Processor Unit - CPU | H5000 Installation
CPU Installation
1: Find a suitable location to position the CPU.
2: Mount the CPU vertically. Ensure that there is at least 100 mm
clearance between the
cable grommet and any surface to enable easy access to cables.
3: Mark the hole positions, drill pilot holes and fi x into position with
four self tapping screws.

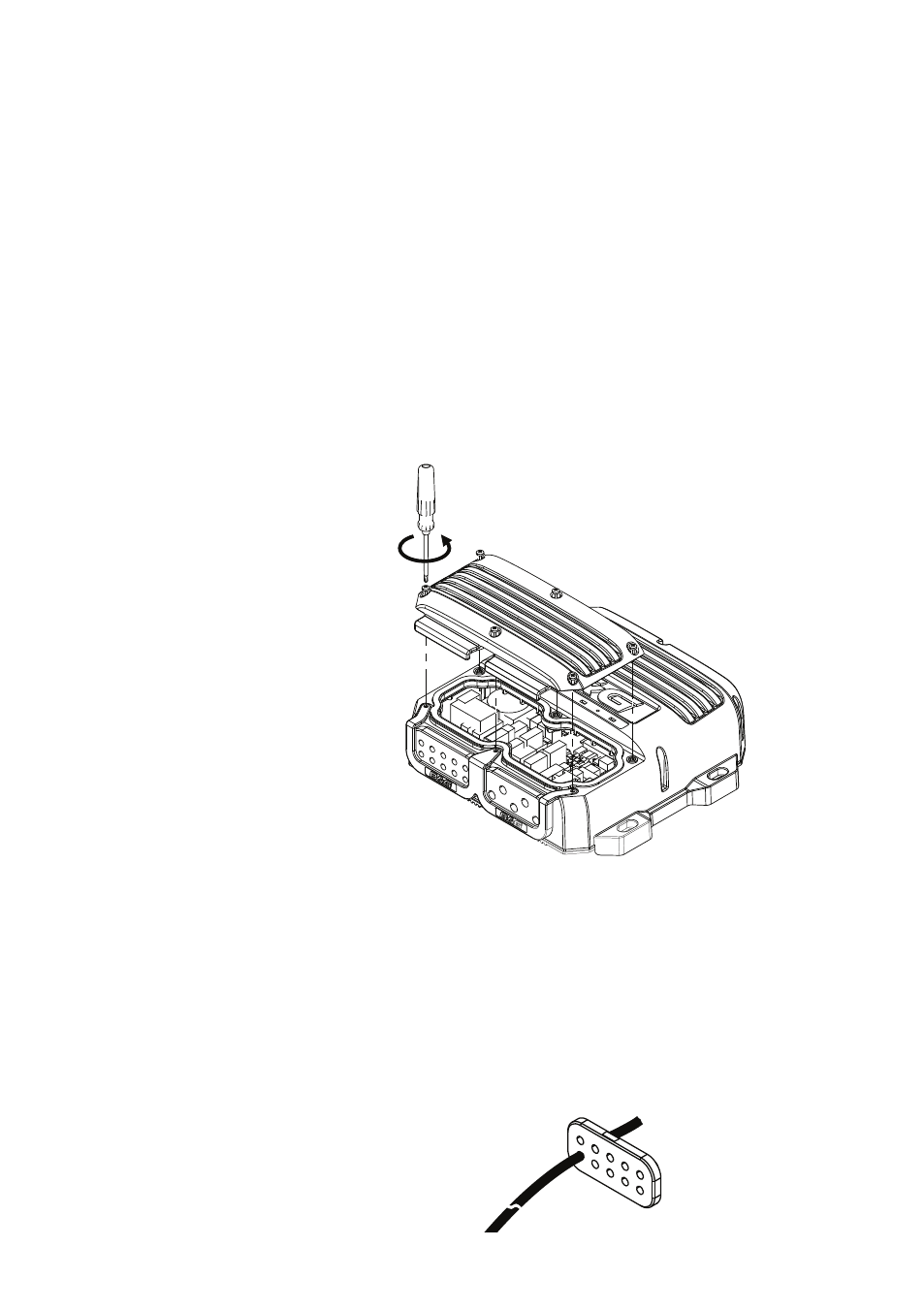

4: To remove the lid, unscrew the 6 captive lid screws anti-
clockwise.
Note: The lid comes away from the CPU. The 6 captive screws
remain fi xed to the lid.
5: Remove the grommet retaining clip
6: Remove the cable grommet
7: Feed the cut cable through the cable grommet.
