Great Plains Manufacturing, Inc. Assembly 27
03/06/2014 566-224Q-ENG

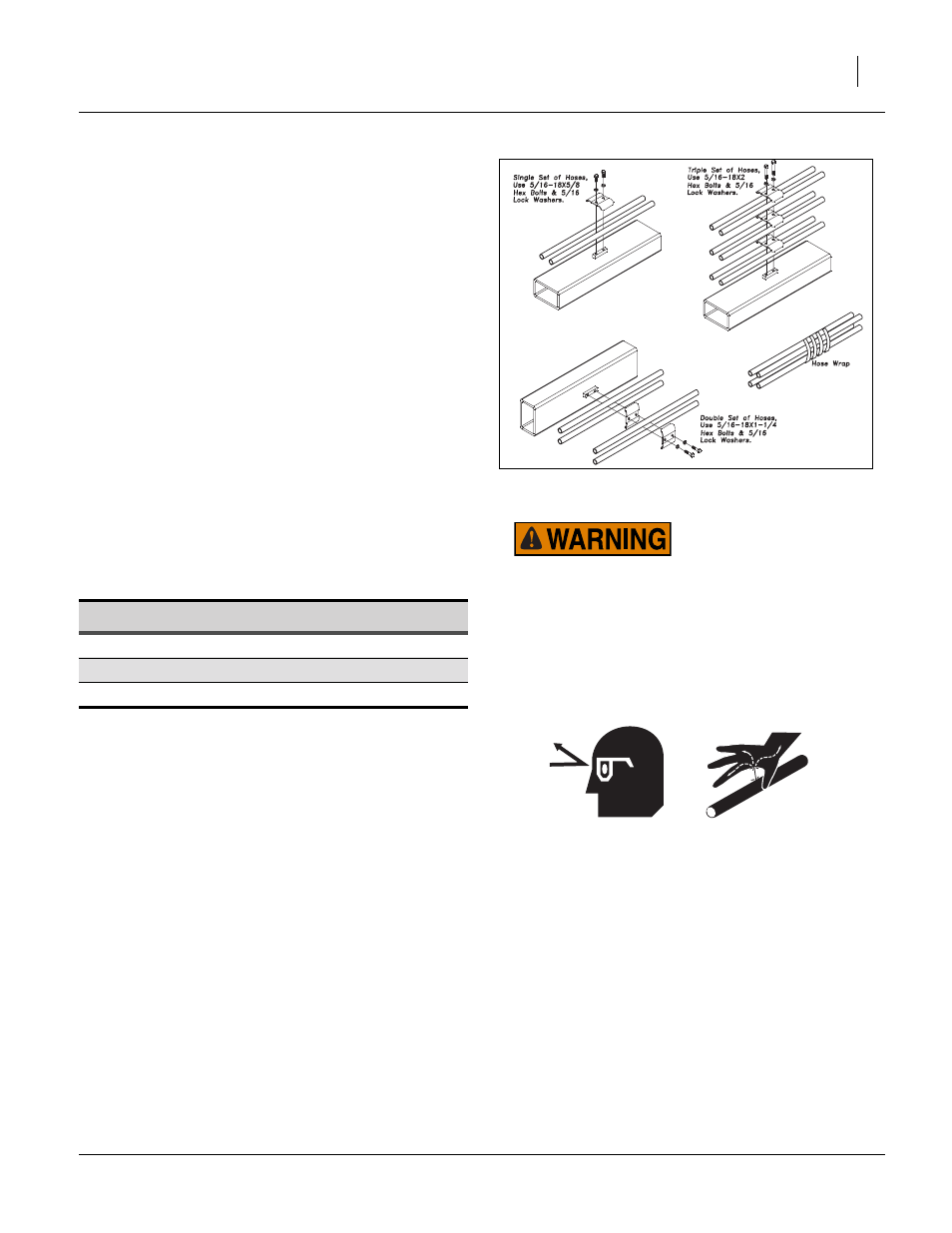

Refer to Figure 25
Attach Hose Clamps and Hose wraps
113.When all the hoses are hooked up and tightened prop-
erly, put hose clamps on hoses as shown.
114.Install hose wraps on hoses as needed.
Note: Be sure and get hoses and light wiring harness fas-
tened properly so they do not drag. Check to be sure
there is enough slack in hinge area when folding ma-
chine the first time.
Hydraulic Hose Hookup
115.Great Plains hydraulic hoses are color coded to help you
hookup hoses to your tractor outlets. Hoses that go to
the same remote valve are marked with the same color.
Color Hydraulic Function
Black Lift (2 hoses)
Green Fold (2 hoses)
Red Gang (2 hoses)
Figure 25
Hose Clamp
41583
High Pressure Fluid Hazard:
Relieve pressure before disconnecting hydraulic lines. Use
paper or cardboard, NOT BODY PARTS, to check for leaks.
Wear protective gloves and safety glasses or goggles when
working with hydraulic systems. Escaping fluid under pressu
can have sufficient pressure to penetrate the skin causing se
ous injury. If an accident occurs, seek immediate medical
assistance from a physician familiar with this type of injury.
Only trained personnel should work on system hydraulics.
