Great Plains TC5319 (S/N A1420X+) Assembly Manual - Manual (Page 11)

03/06/2014 566-224Q-ENG
Great Plains Manufacturing, Inc. 7
Assembly
Center Transport
Refer to Figure 5
11. Once the center Frame has been uncrated, carefully
turn the center frame upside down and set on blocks
to assemble torque tube/walking beam assembly.
12. Carefully raise the torque tube/walking beam assem-
bly with an overhead hoist and secure with 1 1/4 x
7 pins , 3/8 x 2 1/4 Gr. 8 special thread hex bolts
and 3/8 top lock nut.
13. Install pre-assembled hub assembly into torque
tube/walking beam assembly . Align hole in spindle
with hole in torque tube/walking beam assembly,
secure with 1/2 x 4 1/2 hex bolt
and 1/2 top lock
nut.
14. Attach the tire/wheel assembly to hub assembly
and secure with 5/8 lug nuts .
15. All bolts may be tightened to specs, See “Torque
Values Chart” on page 31.
Note: Fasten the bottom of the torque tube to frame with
chain or straps so it does not swing down and hit
something while turning center frame over. Care-
fully use hoist to turn center frame over and set on
stands to finish assembling components.
5317-5323 Wing Transport
Refer to Figure 6
16. Once the wing Frame has been uncrated, carefully
turn the wing frame upside down and set on blocks to
assemble torque tube.
17. Carefully raise the torque tube with an overhead
hoist and secure with 1 1/4 x 7 pins , 3/8 x 2 1/4 Gr.
8 special thread hex bolts and 3/8 top lock nut.
18. Install pre-assembled 8-bolt hub assemblies into
torque tube . Align holes in spindle with hole in
torque tube, secure with 5/16 x 3 1/2 Gr. 8 hex bolt
and 5/16 top lock nut.
19. Attach the tire/wheel assembly to hub assembly
and secure with 5/8 lug nuts .
20. All bolts may be tightened to specs, See “Torque Val-
ues Chart” on page 31.
Note: Fasten the bottom of the torque tube to frame with
chain or straps so it does not swing down and hit
something while turning center frame over. Careful-
ly use hoist to turn center frame over and set on
stands to finish assembling components.

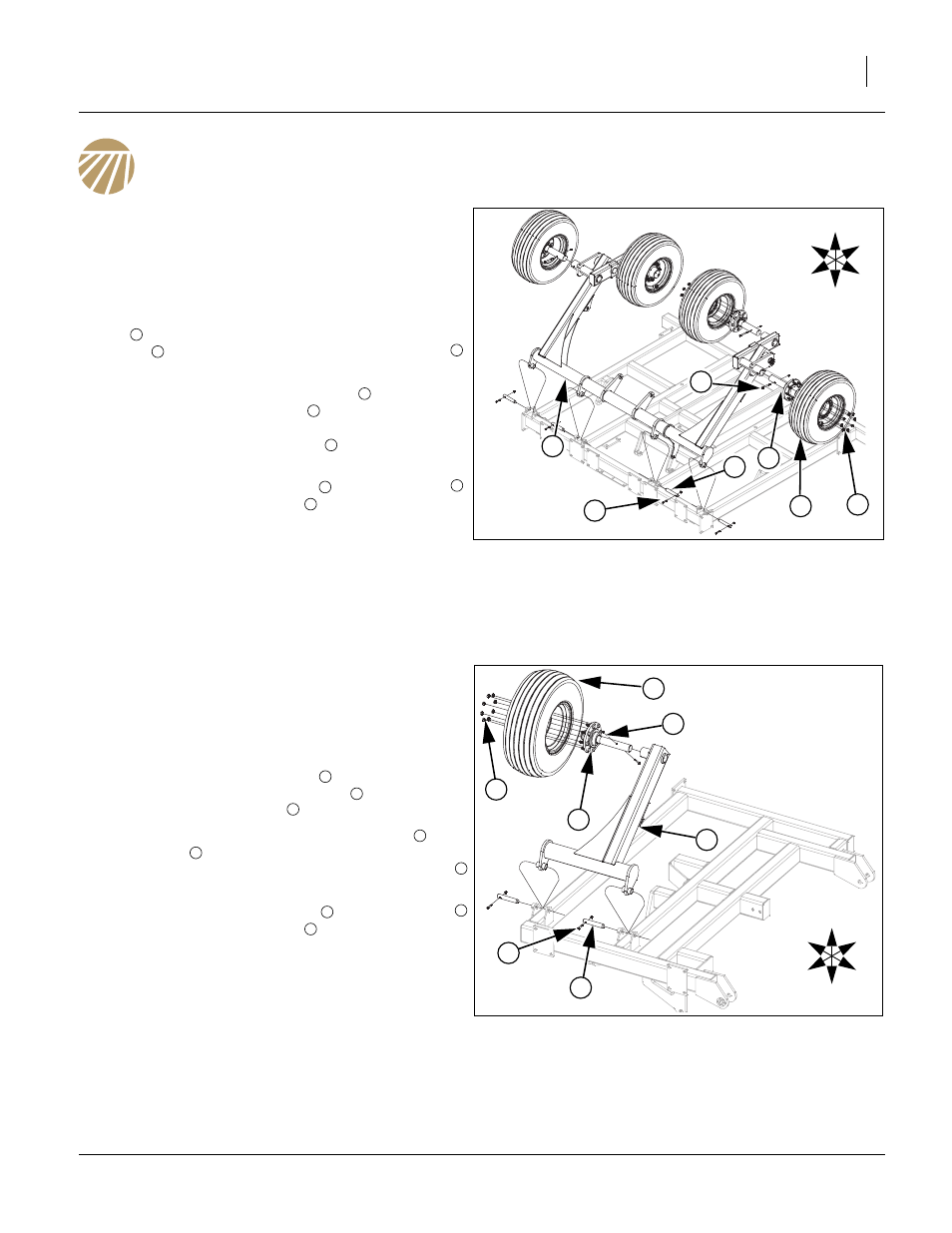

Figure 5
Center Transport
42675
2
6
3
1
U
D
F
B
L
R
4
5
7
1
2 3
4
1
5
6 4
7
Figure 6
5317-5323 Wing Transport
42676
5
2
3
1
U
D
F
B
L
R
6
4
7
1
2
3
4
1
5
6 4
7
