Valve, Fitting and Hose Assembly
Note: Refer to hydraulic layouts in Appendix for complete
hose routings

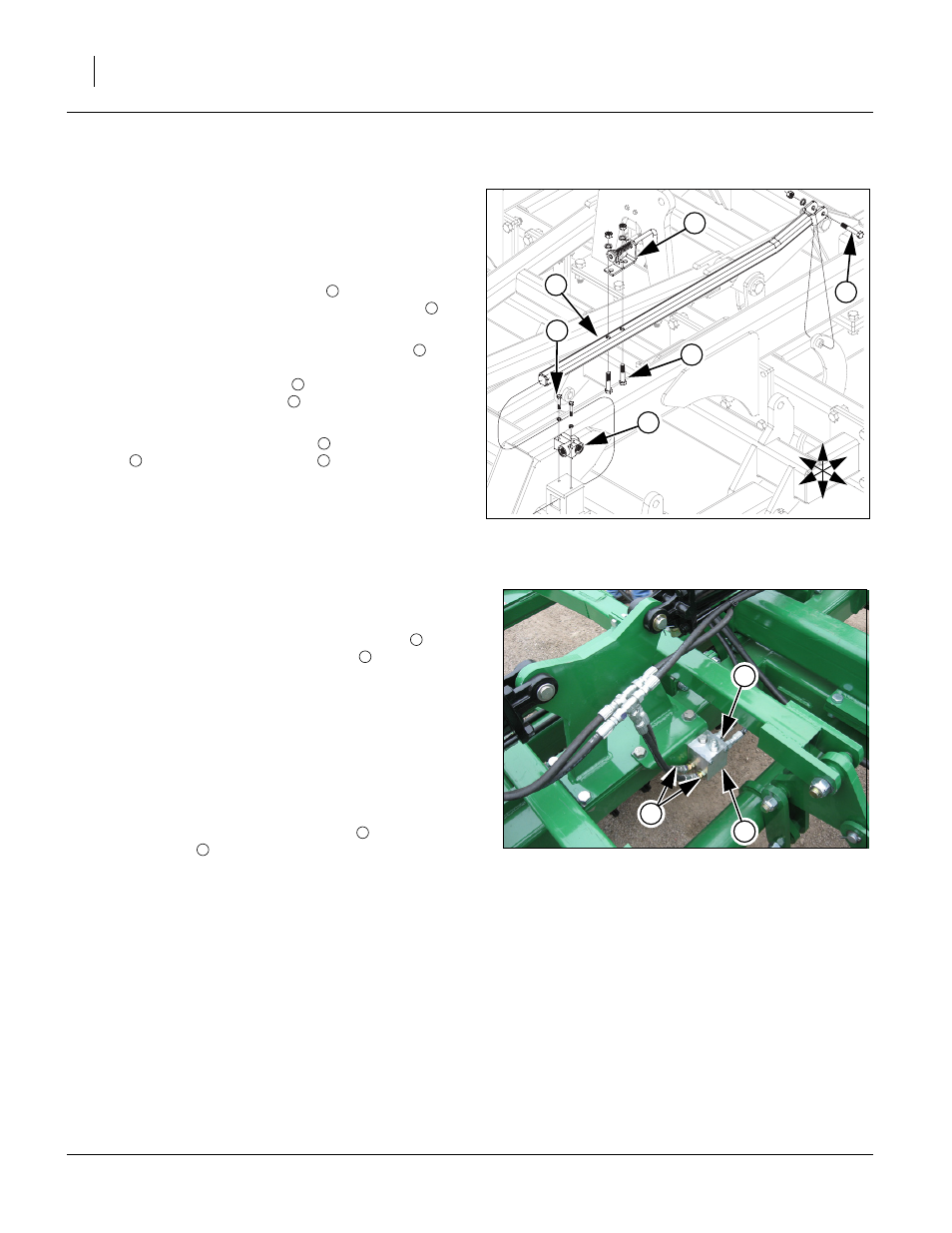

Refer to Figure 19
Depth Stop
97. Align holes in depth control valve to top of depth stop
valve mounting bracket using 5/16 x 2 hex bolts and 5/
16 lock washers.
98. Slide one end of (with 2 holes) depth stop tube through
slotted hole in depth stop valve mounting bracket. Slide
other end of depth stop tube
over lever on torque tube,
secure with 1/2 x 3 hex bolt , 1/2 lock washer and 1/2
nut.
99. Bolt depth stop screw assembly to front of depth stop
tube with 1/2 x 2 1/2 hex bolts , 1/2 lock washers and
1/2 nuts.
100.Tighten all u-bolts to specs, See “Torque Values Chart”
on page 31.
Note: Install all hydraulic fittings as shown in steps below. See
hydraulic layouts in Appendix for proper hose routing.
Install Rebound Valve and O-Ring Fittings
Refer to Figure 20
101.Thread straight (non- adjustable stud) fittings
into
ports V1, V2 and C2 of rebound valve .
Note: Tighten as shown below. Do not over tighten as this
could cause damage to valves.
a. Inspect all components for damage or contamination dur-
ing shipping.
b. Lubricate o-ring and threads on fitting.
c. Turn fitting into port until finger tight, See “Fittings
Torque Values” on page 32.
102.Thread elbow (adjustable stud) fitting into port C1 of
rebound valve .
a. Follow steps a and b from the foregoing instructions, then
proceed with the following steps below.
b.Looking at fitting from end with nut/washer/o-ring
assembly, turn nut clockwise as far as possible.
a. Using wrench, turn fitting into port until the washer
touches the port spot face. Continue turning fitting until
washer touches thread nearest wrench pad.
b. Back off fitting counterclockwise not exceeding one revo-
lution until it is oriented in the correct position.
c. Place wrench on the wrench pad of fitting to keep fittings
from turning, See “Fittings Torque Values” on page 32,
