Air System Operation

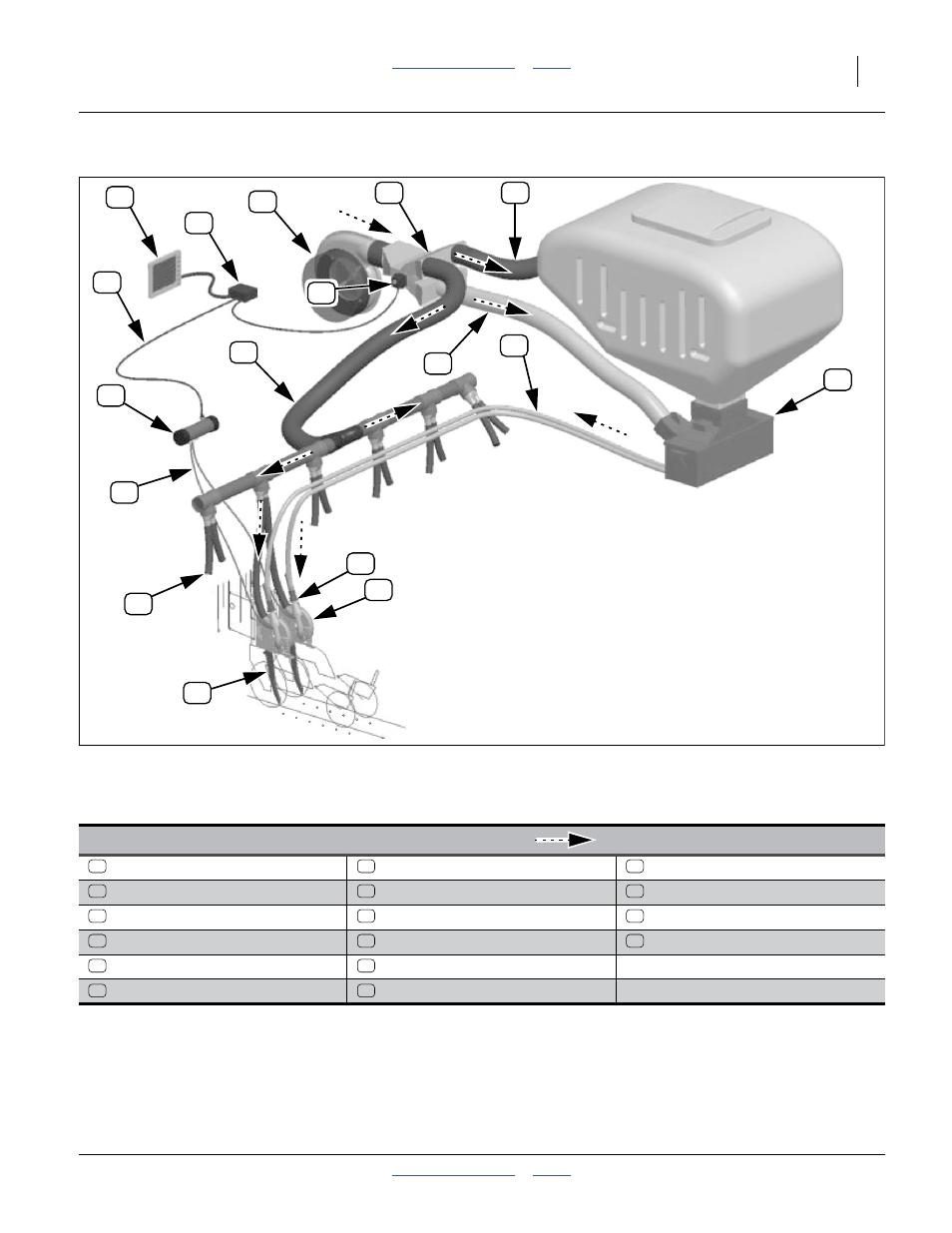

Meter Pressurization System Elements ( shows air direction)
Hydraulic Fan Pressure Sensor Lines Air-Pro
®
Seed Meter
Split-Air Manifold Pressure Sensor Chamber Row Pressurizing Tubes
Servo-Controlled Vane Feedback Signal Line Row Unit Seed Tube
WSMT Servo Programming Air Box & Seed Manifold IntelliAg
®
Console
Priority Meter Pressurization Air Seed Delivery Hose
Excess Air to Air Box Air Release Screen
Figure 49
Yield-Pro
®
Air System for Air-Pro
®
Seed Metering
