Digital Acremeter Operation
(S/N YY1735-)
Refer to Figure 45
The acremeter is used to calculate and display the field
acres and total acres accumulated on the 3S-4000.
The battery operated acre counter operates in one of two
modes. In sleep mode, the display is blank, and the
counter is accumulating acres. Sleep mode will be
entered if a button is not pressed for 20 seconds. In entry
mode, the display is on, and the operator can enter
values. To get into entry mode, press the FUNC button. If
you continue to press the FUNC button, the acre counter
will cycle through the functions that it can perform. The
icons above the digits indicate which function is selected.
The available functions are:
• Field Acres
• Total Acres
• Pulses per Mile
• Width
• Password
Field Acres
Refer to Figure 46
Press the FUNC button until the “FIELD” icon appears in
the display. The digits indicate the acres covered since
the field acre counter was cleared.
To clear the field acre count, depress the UP and DOWN
buttons for 2 seconds.
Field acres will count in tenths of an acre up to 9999.9
acres.
Total Acres
Refer to Figure 47
Press the FUNC button until the “TOTAL” icon appears in
the display. The digits indicate the acres covered since
the total acre counter was cleared.
To clear the total acre count, press and hold the UP and
DOWN buttons for 2 seconds. If a password has been
entered you will not be able to clear the total acre count.
Total acres will count from 1 to 99999 acres.

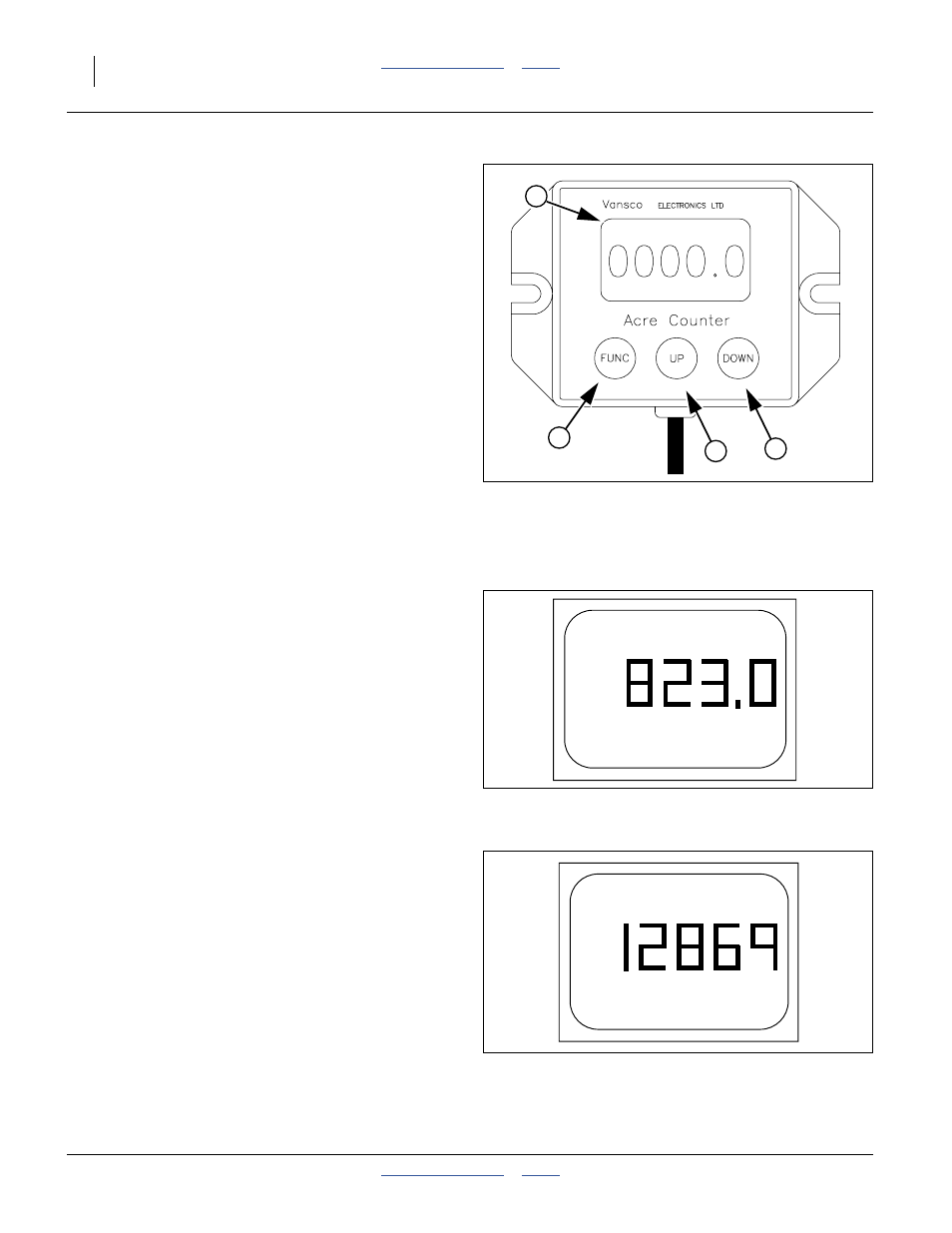

Figure 45
Shaft Monitor Console
(S/N YY1735-)
26478
1
2
4 3
Figure 46
Field Acres
FLD
ACRES
Figure 47
Total Acres
TOT
ACRES
